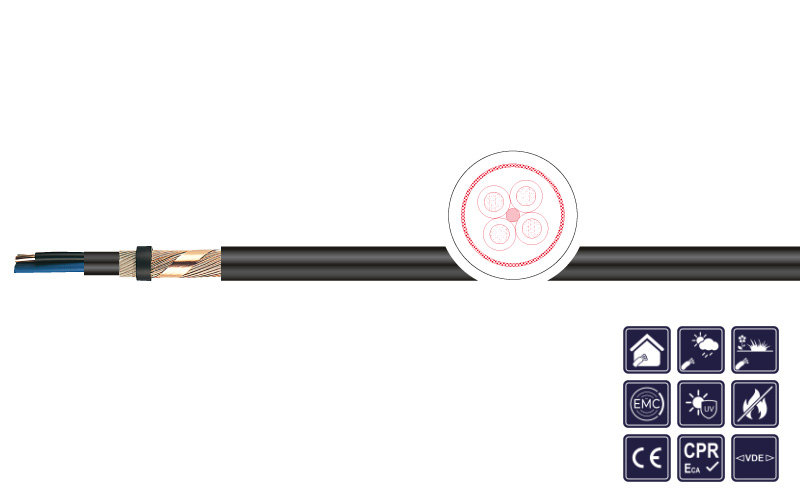

Use of cable

power cable for use in generating plants, industrial facilities, switching stations, in local networks and power supply industry. Use predominantly for laying underground, indoor-and outdoor-use, cable channels and in water when increased mechanical protection resp. contact protection in case of failure is required.

Special features

  • 0,6/1 kV operating voltage 4 kV testing voltage
  • UV-resistant
  • no hood termination necessary when laying in dry rooms
  • use of concentric undulated CEANDER copper conductor as shield, neutral conductor or earth conductor is permitted but not as outer conductor
  • any branch connection possible because of non-engraving of concentric CEANDER conductor (CW)
  • free from lacquer damaging substances and silicone (during production)

Remarks

  • conform to RoHS
  • conform to 2006/95/EC-Guideline CE
  • with blue outer sheath for intrinsically safe facilities and also as NAYCWY (with aluminium conductors) available upon request
  • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Conductor material: Bare copper conductor
Conductor class: Acc. to DIN VDE 0295 class 1 or 2 resp. IEC 60228 class 1 or 2
Core insulation: PVC
Core identification: Acc. to VDE 0293-308
Stranding: Cores stranded in layers
Inner sheath material: Filler sheath
Shield3: Concentric conductor of blank round copper-wires ceander form
Outer sheath: PVC
Sheath colour: Black
Rated voltage: Uo/U: 0,6/1 kV
Testing voltage: 4 kV
Conductor resistance: At +20 °C acc. to DIN VDE 0295 class 1 oder 2 resp. IEC 60228 class 1 or 2
Current-carrying-capacity: Acc. to DIN VDE, see Technical Guidelines
Min. bending radius fixed: Single core: 15 x d ; multi core: 12 x d
Operat. temp. fixed min/max: -40 °C / +70 °C
Operat. temp. moved min/max: - 5 °C / +50 °C
Temp. at conductor: + 70 °C in operation; +160 °C in case of short-circuit
Burning behavior: Acc. to VDE 0472-804-B and IEC 60332-1
Standard: Acc. to DIN VDE 0276-603 and IEC 60502
Approvals: VDE

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
4000077 2 X 10re/10 19,0 312,0 600,0 black V0: NYCWY 0,6/1kV
4000699 2 X 16re/16 21,0 489,0 830,0 black V0: NYCWY 0,6/1kV
4000078 3 X 10re/10 20,0 408,0 720,0 black V0: NYCWY 0,6/1kV
4000081 3 X 16re/16 22,0 643,0 990,0 black V0: NYCWY 0,6/1kV
4000082 3 X 25rm/25 26,0 1.003,0 1.480,0 black V0: NYCWY 0,6/1kV
4000492 3 X 25rm/16 26,0 902,0 1.400,0 black V0: NYCWY 0,6/1kV
4000065 3 X 35rm/35 28,0 1.402,0 1.950,0 black V0: NYCWY 0,6/1kV
4000064 3 X 35rm/16 28,0 1.190,0 1.750,0 black V0: NYCWY 0,6/1kV
4000083 3 X 35sm/35 27,0 1.402,0 1.800,0 black V0: NYCWY 0,6/1kV
4000084 3 X 35sm/16 27,0 1.190,0 1.600,0 black V0: NYCWY 0,6/1kV
4000085 3 X 50sm/50 29,0 2.000,0 2.350,0 black V0: NYCWY 0,6/1kV
4000086 3 X 50sm/25 29,0 1.723,0 2.110,0 black V0: NYCWY 0,6/1kV
4000541 3 X 70sm/70 34,0 2.796,0 3.220,0 black V0: NYCWY 0,6/1kV
4000087 3 X 70sm/35 33,0 2.410,0 2.910,0 black V0: NYCWY 0,6/1kV
4000554 3 X 95sm/95 38,0 3.791,0 4.380,0 black V0: NYCWY 0,6/1kV
4000088 3 X 95sm/50 38,0 3.296,0 3.920,0 black V0: NYCWY 0,6/1kV
4000543 3 X 120sm/120 42,0 4.786,0 5.370,0 black V0: NYCWY 0,6/1kV
4000079 3 X 120sm/70 41,0 4.236,0 4.880,0 black V0: NYCWY 0,6/1kV
4000303 3 X 150sm/150 46,0 5.970,0 6.590,0 black V0: NYCWY 0,6/1kV
4000080 3 X 150sm/70 45,0 5.100,0 5.820,0 black V0: NYCWY 0,6/1kV
4000483 3 X 185sm/95 50,0 6.383,0 7.370,0 black V0: NYCWY 0,6/1kV
4000518 3 X 240sm/120 57,0 8.242,0 9.400,0 black V0: NYCWY 0,6/1kV
4000060 3 X 300sm/150 61,0 10.290,0 11.837,0 black V0: NYCWY 0,6/1kV
4000089 4 X 10re/10 21,0 504,0 850,0 black V0: NYCWY 0,6/1kV
4000091 4 X 16re/16 24,0 796,0 1.210,0 black V0: NYCWY 0,6/1kV
4000093 4 X 25rm/16 28,0 1.142,0 1.720,0 black V0: NYCWY 0,6/1kV
4000094 4 X 35sm/16 29,0 1.526,0 1.970,0 black V0: NYCWY 0,6/1kV
4000095 4 X 50sm/25 33,0 2.203,0 2.680,0 black V0: NYCWY 0,6/1kV
4000096 4 X 70sm/35 37,0 3.082,0 3.710,0 black V0: NYCWY 0,6/1kV
4000097 4 X 95sm/50 43,0 4.208,0 5.020,0 black V0: NYCWY 0,6/1kV
4000090 4 X 120sm/70 47,0 5.388,0 6.200,0 black V0: NYCWY 0,6/1kV
4000273 4 X 150sm/70 51,0 6.540,0 7.500,0 black V0: NYCWY 0,6/1kV
4000092 4 X 240sm/120 64,0 10.546,0 12.533,0 black V0: NYCWY 0,6/1kV
