Use of cable

heat and coldness resistant power, control and connecting cable in electrical facilities, for lossless data and signal transmission, for fixed laying and flexible applications without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms and outdoor use, no laying underground.

Special features

  • largely resistant to acids, bases and specified types of oil
  • no flame conduction in case of fire, insulation integrity and low smoke density
  • silicone is resistant to ozone, oxygen and sea water and weather-proofed

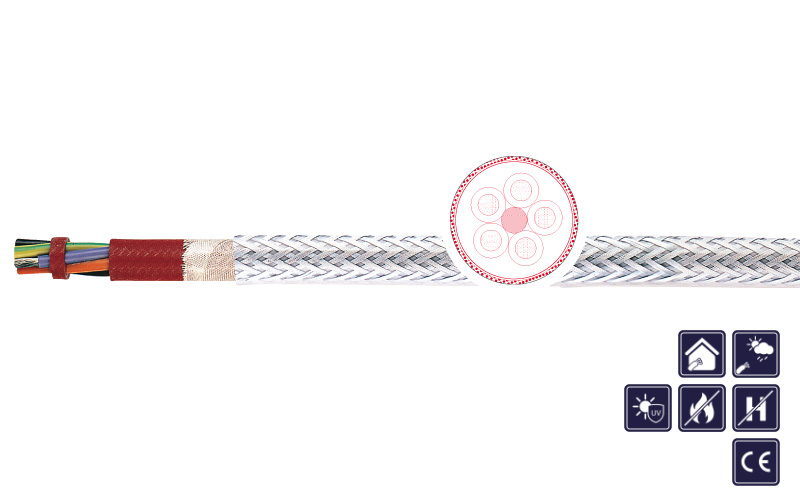

  • triple protection for high mechanical requirements and magnetic shield (glass silk taping with additional oxidation-proofed steel wire braid)
  • above +100 °C and with exclusion of air, the mechanical properties of silicone cables
    will be reduced early, adequate ventilation should be ensured

Remarks

  • conform to RoHS
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Conductor material: Copper strand tinned
Conductor class: Acc. to IEC 60228 cl. 5
Core insulation: Silicone
Core identification: Up to 5 cores acc. to DIN VDE 0293-308 coloured cores; from 6 cores black cores with white numerals with or without GNYE
Stranding: Stranded in layers
Inner sheath material: Silicone
Shield3: Glass-silk-braid - steel wire braid zinced; coverage approx. 85%, over glass-silk braid
Rated voltage: Uo/U 300/500 V;
Testing voltage: 2 kV
Conductor resistance: At +20 °C acc. to IEC 60228 cl. 5
Insulation resistance: Min. 2,0 GΩ x km
Current-carrying-capacity: Acc. to DIN VDE, see Technical Guidelines
Min. bending radius fixed: 5 x d
Min. bending radius moved: 10 x d
Operat. temp. fixed min/max: -60 °C / +180 °C; short-time: +200 °C (when using adequate conductor materials)
Temp. at conductor: +180 °C
Halogen free: Halogen-free acc. to IEC 60754-1
Corrodibility: Acc. to IEC 60754-2
Burning behavior: Self-extinguishing and flame-retardant acc. to IEC 60332-1-2

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
2500227 2 X 0,75 7,6 14,4 85,0 redbrown V0: SIHF-J/GLP
2500233 3 G 0,75 8,0 21,6 98,0 redbrown V0: SIHF-J/GLP
2500239 4 G 0,75 8,8 28,8 120,0 redbrown V0: SIHF-J/GLP
2500248 5 G 0,75 9,7 36,0 147,0 redbrown V0: SIHF-J/GLP
2500254 6 G 0,75 10,4 43,2 169,0 redbrown V0: SIHF-J/GLP
2500260 7 G 0,75 10,4 50,4 175,0 redbrown V0: SIHF-J/GLP
2500228 2 X 1 7,8 19,2 93,0 redbrown V0: SIHF-J/GLP
2500234 3 G 1 8,2 28,8 108,0 redbrown V0: SIHF-J/GLP
2500240 4 G 1 9,1 38,4 134,0 redbrown V0: SIHF-J/GLP
2500249 5 G 1 10,0 48,0 164,0 redbrown V0: SIHF-J/GLP
2500255 6 G 1 10,7 57,6 202,0 redbrown V0: SIHF-J/GLP
2500261 7 G 1 10,7 67,2 209,0 redbrown V0: SIHF-J/GLP
2500612 24 G 1 19,0 230,4 630,0 redbrown V0: SIHF-J/GLP
2500229 2 X 1,5 8,8 28,8 121,0 redbrown V0: SIHF-J/GLP
2500235 3 G 1,5 9,2 43,2 142,0 redbrown V0: SIHF-J/GLP
2500241 4 G 1,5 10,0 57,6 171,0 redbrown V0: SIHF-J/GLP
2500250 5 G 1,5 10,8 72,0 216,0 redbrown V0: SIHF-J/GLP
2500256 6 G 1,5 11,8 86,4 250,0 redbrown V0: SIHF-J/GLP
2500262 7 G 1,5 11,8 101,0 262,0 redbrown V0: SIHF-J/GLP
2500220 12 G 1,5 12,5 173,0 310,0 redbrown V0: SIHF-J/GLP
2500224 18 G 1,5 18,7 259,2 492,0 redbrown V0: SIHF-J/GLP
2500226 24 G 1,5 21,5 346,0 656,0 redbrown V0: SIHF-J/GLP
2500230 2 X 2,5 10,0 48,0 165,0 redbrown V0: SIHF-J/GLP
2500236 3 G 2,5 10,9 72,0 221,0 redbrown V0: SIHF-J/GLP
2500244 4 G 2,5 12,0 96,0 266,0 redbrown V0: SIHF-J/GLP
2500251 5 G 2,5 13,0 120,0 318,0 redbrown V0: SIHF-J/GLP
2500263 7 G 2,5 14,0 168,0 372,0 redbrown V0: SIHF-J/GLP
2500237 3 G 4 12,9 115,0 307,0 redbrown V0: SIHF-J/GLP
2500246 4 G 4 14,0 154,0 374,0 redbrown V0: SIHF-J/GLP
2500252 5 G 4 15,4 192,0 458,0 redbrown V0: SIHF-J/GLP
2500238 3 G 6 14,6 173,0 412,0 redbrown V0: SIHF-J/GLP
2500247 4 G 6 16,1 230,0 515,0 redbrown V0: SIHF-J/GLP
2500253 5 G 6 18,0 288,0 641,0 redbrown V0: SIHF-J/GLP
2500242 4 G 10 20,8 384,0 831,0 redbrown V0: SIHF-J/GLP
2500243 4 G 16 22,8 614,0 1.155,0 redbrown V0: SIHF-J/GLP
2500712 4 G 25 30,4 960,0 1.930,0 redbrown V0: SIHF-J/GLP
