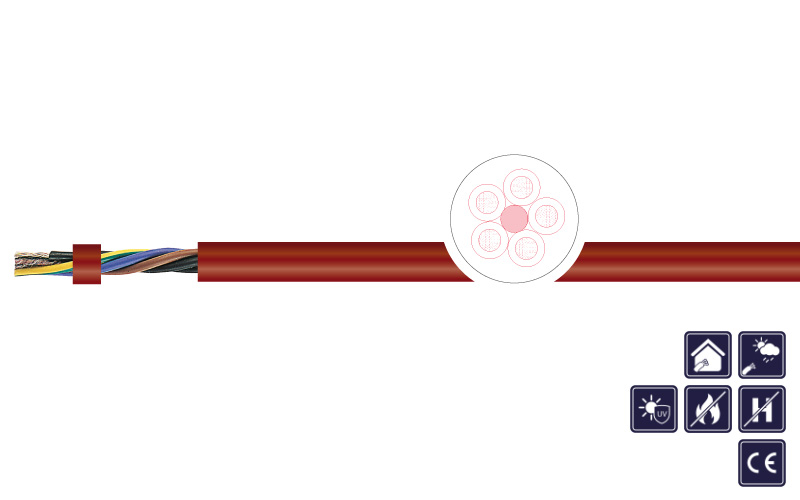

SIHF-J
ID: 08.04.03
300/500V, unshielded, halogen-free, fine stranded
Use of cable
heat and coldness resistant power, control and connecting cable in electrical facilities, for fixed laying and flexible applications without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms and outdoor use, no laying underground.
Special features
- largely resistant to acids, basis and special types of oil
- approved for conductor temperature class "H" up to +180 °C
- no flame conduction in case of fire, insulation integrity and low smoke density
- silicone is resistant to ozone, oxygen, sea water and weather-proofed
- above +100 °C and with exclusion of air, the mechanical properties of silicone cables will be reduced early, adequate ventilation should be ensured
Remarks
- conform to RoHS
- conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
- We are pleased to produce special versions, other dimensions, core and jacket colours on request.
| Conductor material: | Copper strand tinned |
|---|---|
| Conductor class: | Acc. to IEC 60228 cl. 5 |
| Core insulation: | Silicone |
| Core identification: | Up to 5 cores acc.to DIN VDE 0293-308 coloured cores; from 6 cores black cores with white numerals with or without GNYE |
| Stranding: | Stranded in layers |
| Outer sheath: | Silicone |
| Sheath colour: | Redbrown |
| Rated voltage: | Uo/U: 300/500 V |
| Testing voltage: | 2 kV |
| Conductor resistance: | At +20 °C acc. to IEC 60228 cl. 5 |
| Insulation resistance: | Min. 2,0 GΩ x km |
| Current-carrying-capacity: | Acc. to DIN VDE, see Technical Guidelines |
| Min. bending radius fixed: | 4 x d |
| Min. bending radius moved: | 15 x d |
| Operat. temp. fixed min/max: | -60 °C / +180 °C; short-time: +200 °C |
| Temp. at conductor: | +180 °C |
| Halogen free: | Acc. to IEC 60754-1 |
| Corrodibility: | Acc. to IEC 60754-2 |
| Burning behavior: | Self-extinguishing and flame-retardant acc. to IEC 60332-1-2 |
| Standard: | Similar to EN 50525-2-83 |
Table of items
|
Product No.
|
Dimension
[n x mm²] |
Outer-Ø
[mm] |
Cu-Index
[kg/km] |
Weight
[kg/1.000] |
Sheath colour
|
Variant
|
|---|---|---|---|---|---|---|
| 2500155 | 2 X 0,5 | 5,7 | 9,6 | 40,0 | redbrown | V0: SIHF-J |
| 2500164 | 3 G 0,5 | 6,4 | 14,4 | 52,0 | redbrown | V0: SIHF-J |
| 2500464 | 3 X 0,5 | 6,4 | 14,4 | 42,5 | redbrown | V0: SIHF-J |
| 2500179 | 4 G 0,5 | 6,5 | 19,2 | 72,0 | redbrown | V0: SIHF-J |
| 2500853 | 7 G 0,5 | 7,8 +/-0,2 | 33,6 | 81,0 | redbrown | V0: SIHF-J |
| 2500158 | 2 X 0,75 | 6,4 | 14,4 | 60,0 | redbrown | V0: SIHF-J |
| 2500167 | 3 G 0,75 | 6,8 | 21,6 | 71,0 | redbrown | V0: SIHF-J |
| 2500176 | 4 G 0,75 | 7,6 | 28,8 | 91,0 | redbrown | V0: SIHF-J |
| 2500187 | 5 G 0,75 | 8,5 | 36,0 | 114,0 | redbrown | V0: SIHF-J |
| 2500197 | 6 G 0,75 | 9,2 | 43,2 | 134,0 | redbrown | V0: SIHF-J |
| 2500205 | 7 G 0,75 | 9,2 | 50,4 | 139,0 | redbrown | V0: SIHF-J |
| 2501304 | 12 G 0,75 | 12,2 | 86,4 | 214,1 | redbrown | V0: SIHF-J |
| 2500451 | 18 G 0,75 | 14,6 | 130,0 | 324,0 | redbrown | V0: SIHF-J |
| 2500159 | 2 X 1 | 6,6 | 19,2 | 67,0 | redbrown | V0: SIHF-J |
| 2500166 | 3 G 1 | 7,0 | 28,8 | 81,0 | redbrown | V0: SIHF-J |
| 2500177 | 4 G 1 | 7,9 | 38,4 | 104,0 | redbrown | V0: SIHF-J |
| 2500188 | 5 G 1 | 8,8 | 48,0 | 130,0 | redbrown | V0: SIHF-J |
| 2500198 | 6 G 1 | 9,5 | 57,6 | 153,0 | redbrown | V0: SIHF-J |
| 2500202 | 7 G 1 | 9,5 | 67,2 | 161,0 | redbrown | V0: SIHF-J |
| 2503106 | 10 G 1 | 11,3 | 96,0 | 216,0 | redbrown | V0: SIHF-J |
| 2503107 | 18 G 1 | 15,1 | 173,0 | 340,0 | redbrown | V0: SIHF-J |
| 2503190 | 20 G 1 | 15,6 | 192,0 | 439,0 | redbrown | V0: SIHF-J |
| 2503129 | 25 G 1 | 18,3 | 240,0 | 431,0 | redbrown | V0: SIHF-J |
| 2500160 | 2 X 1,5 | 7,6 | 28,8 | 92,0 | redbrown | V0: SIHF-J |
| 2500170 | 3 G 1,5 | 8,0 | 43,2 | 111,0 | redbrown | V0: SIHF-J |
| 2500180 | 4 G 1,5 | 8,8 | 57,6 | 137,0 | redbrown | V0: SIHF-J |
| 2500584 | 4 X 1,5 | 8,8 | 57,6 | 137,0 | redbrown | V0: SIHF-J |
| 2500189 | 5 G 1,5 | 9,6 | 72,0 | 167,0 | redbrown | V0: SIHF-J |
| 2500218 | 5 X 1,5 | 9,6 | 72,0 | 167,0 | redbrown | V0: SIHF-J |
| 2500199 | 6 G 1,5 | 10,4 | 86,4 | 197,0 | redbrown | V0: SIHF-J |
| 2500203 | 7 G 1,5 | 10,4 | 101,0 | 208,0 | redbrown | V0: SIHF-J |
| 2500209 | 8 G 1,5 | 11,3 | 116,0 | 236,0 | redbrown | V0: SIHF-J |
| 2500146 | 10 G 1,5 | 13,0 | 144,0 | 270,0 | redbrown | V0: SIHF-J |
| 2500147 | 12 G 1,5 | 14,0 | 173,0 | 371,0 | redbrown | V0: SIHF-J |
| 2500151 | 14 G 1,5 | 14,7 | 202,0 | 370,0 | redbrown | V0: SIHF-J |
| 2500149 | 16 G 1,5 | 16,2 | 230,4 | 493,0 | redbrown | V0: SIHF-J |
| 2500152 | 18 G 1,5 | 17,0 | 259,0 | 515,0 | redbrown | V0: SIHF-J |
| 2500153 | 20 G 1,5 | 17,5 | 288,0 | 592,0 | redbrown | V0: SIHF-J |
| 2500154 | 24 G 1,5 | 19,8 | 345,6 | 741,0 | redbrown | V0: SIHF-J |
| 2503292 | 25 G 1,5 | 21,0 | 360,0 | 449,0 | redbrown | V0: SIHF-J |
| 2500161 | 2 X 2,5 | 8,8 | 48,0 | 131,0 | redbrown | V0: SIHF-J |
| 2500169 | 3 G 2,5 | 9,7 | 72,0 | 171,0 | redbrown | V0: SIHF-J |
| 2500183 | 4 G 2,5 | 10,6 | 96,0 | 212,0 | redbrown | V0: SIHF-J |
| 2500194 | 5 G 2,5 | 11,6 | 120,0 | 258,0 | redbrown | V0: SIHF-J |
| 2500200 | 6 G 2,5 | 12,6 | 144,0 | 305,0 | redbrown | V0: SIHF-J |
| 2500206 | 7 G 2,5 | 12,6 | 168,0 | 324,0 | redbrown | V0: SIHF-J |
| 2502965 | 8 G 2,5 | 13,7 | 192,0 | 373,0 | redbrown | V0: SIHF-J |
| 2503207 | 10 G 2,5 | 15,5 | 240,1 | 450,0 | redbrown | V0: SIHF-J |
| 2500148 | 12 G 2,5 | 17,1 | 288,0 | 503,0 | redbrown | V0: SIHF-J |
| 2500880 | 16 G 2,5 | 19,6 | 384,0 | 659,0 | redbrown | V0: SIHF-J |
| 2503307 | 19 G 2,5 | 21,1 | 456,0 | 912,0 | redbrown | V0: SIHF-J |
| 2500165 | 18 G 2,5 | 20,6 | 432,0 | 761,0 | redbrown | V0: SIHF-J |
| 2502658 | 25 G 2,5 | 24,5 | 600,0 | 1.007,0 | redbrown | V0: SIHF-J |
| 2500162 | 2 X 4 | 10,8 | 76,8 | 200,0 | redbrown | V0: SIHF-J |
| 2500174 | 3 G 4 | 11,5 | 115,2 | 248,0 | redbrown | V0: SIHF-J |
| 2500185 | 4 G 4 | 12,6 | 154,0 | 310,0 | redbrown | V0: SIHF-J |
| 2500195 | 5 G 4 | 14,0 | 192,0 | 386,0 | redbrown | V0: SIHF-J |
| 2500201 | 6 G 4 | 15,6 | 230,0 | 440,0 | redbrown | V0: SIHF-J |
| 2500207 | 7 G 4 | 15,6 | 269,0 | 502,0 | redbrown | V0: SIHF-J |
| 2500163 | 2 X 6 | 12,4 | 115,2 | 275,0 | redbrown | V0: SIHF-J |
| 2500175 | 3 G 6 | 13,2 | 173,0 | 344,0 | redbrown | V0: SIHF-J |
| 2500186 | 4 G 6 | 14,7 | 230,4 | 439,0 | redbrown | V0: SIHF-J |
| 2500196 | 5 G 6 | 16,6 | 288,0 | 556,0 | redbrown | V0: SIHF-J |
| 2500208 | 7 G 6 | 18,6 | 403,2 | 730,0 | redbrown | V0: SIHF-J |
| 2500181 | 4 G 10 | 19,4 | 384,0 | 731,0 | redbrown | V0: SIHF-J |
| 2500192 | 5 G 10 | 21,6 | 480,0 | 908,0 | redbrown | V0: SIHF-J |
| 2500182 | 4 G 16 | 21,4 | 616,0 | 1.043,0 | redbrown | V0: SIHF-J |
| 2500193 | 5 G 16 | 24,7 | 768,0 | 1.234,4 | redbrown | V0: SIHF-J |
| 2500184 | 4 G 25 | 28,2 | 960,0 | 1.543,0 | redbrown | V0: SIHF-J |
| 2500641 | 4 G 35 | 33,0 | 1.344,0 | 2.160,0 | redbrown | V0: SIHF-J |
| 2503136 | 4 G 50 | 34,0 | 1.920,0 | 2.990,0 | redbrown | V0: SIHF-J |
