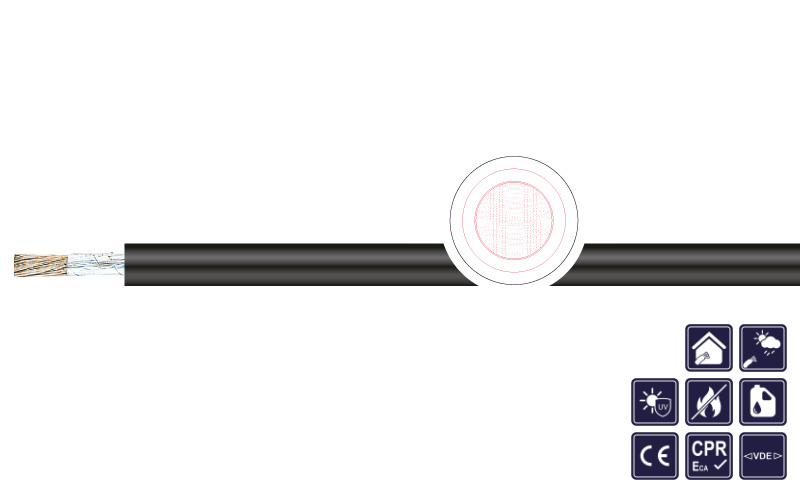

Use of cable

for fixed laying in rail vehicles and buses as well as in dry rooms, in pipes and closed installation canals. Suitable for connecting of flexible units.

Special features

  • cables with 3 kV operating voltage in low voltage facilities up to 1.000 V are classified as short circuit and earth leakage protected connection

Remarks

  • conform to RoHS
Conductor material: Tinned copper strands
Conductor class: Acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5
Core insulation: Rubber compound
Outer sheath: Special rubber-compound
Sheath colour: Black
Rated voltage: Uo/U: 1,8/3 kV
Testing voltage: 6 kV
Current-carrying-capacity: Reference value acc. to VDE see table on the right side.For divergent environmental conditions see conversion factors, technical guideline p. 16.076 and following
Min. bending radius fixed: 5 x d
Min. bending radius moved: 5 x d
Operat. temp. fixed min/max: -40 °C / +80 °C
Operat. temp. moved min/max: -25 °C / +80 °C
Temp. at conductor: +90 °C
Burning behavior: Self-extinguishing and flame-retardant acc. to IEC 60332-1
Resistant to oil: Acc. to EN 60811-404
Standard: Acc. to DIN VDE 0250 part 602

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
3500262 1 X 1,5 5,6 - 9,0 14,4 50,0 black V0: NSGAFÖU
3500282 1 X 2,5 6,0 - 10,0 24,0 65,0 black V0: NSGAFÖU
3500296 1 X 4 6,5 - 10,5 39,0 85,0 black V0: NSGAFÖU
3500303 1 X 6 7,1 - 11,0 58,0 105,0 black V0: NSGAFÖU
3500265 1 X 10 8,3 - 12,0 96,0 160,0 black V0: NSGAFÖU
3500275 1 X 16 9,3 - 14,5 154,0 235,0 black V0: NSGAFÖU
3500288 1 X 25 11,4 - 16,5 240,0 360,0 black V0: NSGAFÖU
3500292 1 X 35 12,6 - 18,0 336,0 460,0 black V0: NSGAFÖU
3500299 1 X 50 14,2 - 19,5 480,0 620,0 black V0: NSGAFÖU
3500306 1 X 70 16,0 - 21,5 672,0 820,0 black V0: NSGAFÖU
3500309 1 X 95 18,5 - 24,5 912,0 1.070,0 black V0: NSGAFÖU
3500268 1 X 120 20,3 - 26,0 1.152,0 1.320,0 black V0: NSGAFÖU
3500271 1 X 150 22,3 - 27,5 1.440,0 1.620,0 black V0: NSGAFÖU
3500278 1 X 185 24,2 - 29,5 1.776,0 1.950,0 black V0: NSGAFÖU
3500285 1 X 240 27,1 - 33,0 2.304,0 2.540,0 black V0: NSGAFÖU
3500290 1 X 300 30,2 - 36,5 2.880,0 3.178,0 black V0: NSGAFÖU
3500490 1 X 400 34,5 - 38,5 3.840,0 4.211,0 black V0: NSGAFÖU
