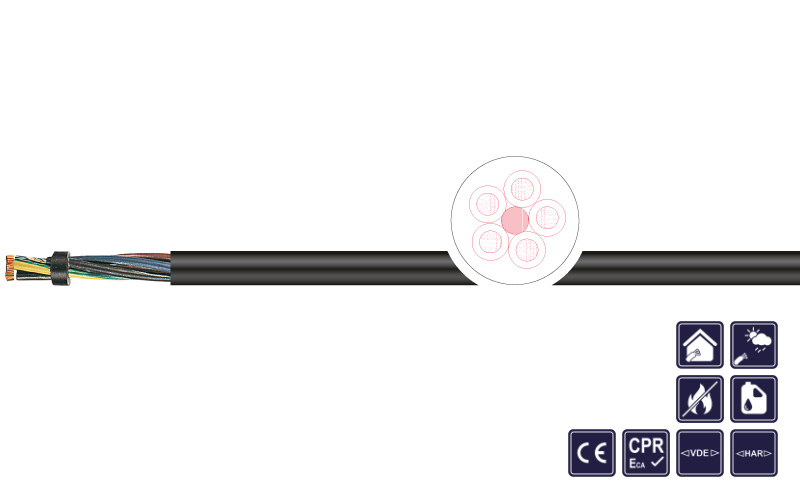

Use of cable

H05RR-F: light rubber-sheathed cable for light and medium mechanical requirements. For connecting of electrical hand-held units in household and office. Suitable in dry, humid and wet rooms. Not for permanent outdoor use.

H05RN-F: rubber-sheathed cable for medium mechanical requirements. For connecting of electrical hand-held units in household and office. Suitable in dry, humid, wet rooms and for outdoor use.

Special features

  • free from lacquer damaging substances and silicone (during production)

Remarks

  • conform to RoHS
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Conductor material: Bare or tinned copper strand
Conductor class: Acc. to DIN VDE 0295 class 5 and IEC 60228 cl. 5
Core insulation: Rubber compound
Core identification: Acc. to DIN VDE 0293-308 coloured with or without GNYE
Stranding: Cores stranded in layers
Outer sheath: Special rubber-compound
Sheath colour: Black
Rated voltage: Uo/U: 300/500 V
Testing voltage: 2 kV
Current-carrying-capacity: Acc. to DIN VDE, see Technical Guidelines
Min. bending radius fixed: Acc. to DIN VDE 0298 part 3
Min. bending radius moved: Acc. to DIN VDE 0298 part 3
Operat. temp. fixed min/max: -25 °C / +60 °C
Operat. temp. moved min/max: -25 °C / +60 °C
Temp. at conductor: +60 °C
Burning behavior: Self-extinguishing and flame retardant acc. to IEC 60332-1
Approvals: <HAR> type certification acc. to EN 50525-2-21

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
3500035 2 X 0,75 5,7 - 7,4 14,4 60,0 black V1: H05RR-F
3500042 3 G 0,75 6,2 - 8,1 21,6 75,0 black V1: H05RR-F
3500050 4 G 0,75 6,8 - 8,8 29,0 90,0 black V1: H05RR-F
3501057 5 G 0,75 8,5 - 8,9 36,0 104,0 black V1: H05RR-F
3500037 2 X 1 6,1 - 8,0 19,2 75,0 black V1: H05RR-F
3500044 3 G 1 6,5 - 8,5 29,0 85,0 black V1: H05RR-F
3500052 4 G 1 7,1 - 9,3 38,0 105,0 black V1: H05RR-F
3500039 2 X 1,5 7,0 - 9,2 29,0 115,0 black V1: H05RR-F
3500046 3 G 1,5 8,0 - 10,4 43,0 135,0 black V1: H05RR-F
3500054 4 G 1,5 9,0 - 11,6 58,0 165,0 black V1: H05RR-F
3500060 5 G 1,5 9,8 - 12,7 72,0 190,0 black V1: H05RR-F
3500041 2 X 2,5 9,0 - 11,6 48,0 160,0 black V1: H05RR-F
3500048 3 G 2,5 9,6 - 12,4 72,0 190,0 black V1: H05RR-F
3500056 4 G 2,5 10,7 - 13,8 96,0 235,0 black V1: H05RR-F
3500062 5 G 2,5 11,9 - 15,3 120,0 285,0 black V1: H05RR-F
3500022 2 X 0,75 5,7 - 7,4 14,4 65,0 black V2: H05RN-F
3500024 3 G 0,75 6,2 - 8,1 21,6 80,0 black V2: H05RN-F
3500027 4 G 0,75 6,8 - 8,8 29,0 95,0 black V2: H05RN-F
3500023 2 X 1 6,1 - 8,0 19,2 75,0 black V2: H05RN-F
3500028 3 G 1 6,5 - 8,5 29,0 90,0 black V2: H05RN-F
