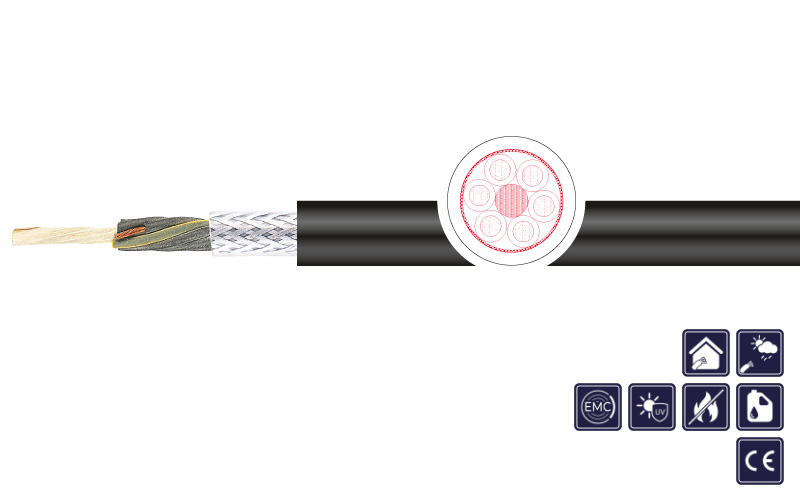

Use of cable

lift cable, for trailing cable installation, drag chains and as control cable in conveyor facilities, machine-tools or as measure and signal transmission cable. Suitable for dry, humid and wet rooms and outdoor use.

Special features

  • central supporting element with high tensile strength
  • free from lacquer damaging substances and silicone (during production)

Remarks

  • conform to RoHS
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
  • Available accessory you'll find on pages 15.35.XX
Conductor material: Bare copper strand
Conductor class: Acc. to DIN VDE 0295 class 6 resp. IEC 60228 cl. 6
Core insulation: Rubber compound
Core identification: Acc. to VDE 0293-308 up to 5 wires coloured, from 6 wires black with white numerals with or without GNYE
Stranding: Cores stranded in layers
Shield3: Copper braid tinned; coverage ca. 80%
Outer sheath: Special rubber-compound
Sheath colour: Black, blue, yellow
Rated voltage: Uo/U: 300/500 V
Testing voltage: 3 kV
Conductor resistance: Acc. to DIN VDE, see Technical Guideline
Min. bending radius fixed: 10 x d
Min. bending radius moved: 10 x d
Operat. temp. fixed min/max: -40 °C / +80 °C
Operat. temp. moved min/max: -25 °C / +80 °C
Temp. at conductor: +80 °C
Burning behavior: Self-extinguishing and flame retardant acc. to IEC 60332-2-1
Resistant to oil: Acc. to EN 60811-404
Suspension height: Max. 80 m
Standard: Similar to DIN VDE 0250

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
3000167 6 X 0,5 11,5 61,0 180,0 black V1: STCN-O schwarz / black
3000169 6 X 0,75 12,2 81,0 189,0 black V1: STCN-O schwarz / black
3000171 6 X 1,5 15,0 126,0 430,0 black V1: STCN-O schwarz / black
3000168 6 X 0,5 11,5 61,0 180,0 blue V2: STCN-O blau / blue
3000170 6 X 0,75 12,2 81,0 189,0 blue V2: STCN-O blau / blue
3000172 6 X 1,5 15,0 126,0 430,0 yellow V3: STCN-O gelb / yellow
3000166 4 X 1 10,5 74,0 161,0 black V4: STCN-J schwarz / black
3000173 7 X 1 13,7 130,0 267,0 black V4: STCN-J schwarz / black
3000163 12 X 1 19,7 202,0 528,0 black V4: STCN-J schwarz / black
3000164 18 X 1 21,0 288,0 630,0 black V4: STCN-J schwarz / black
3000165 24 X 1 22,8 395,0 794,0 black V4: STCN-J schwarz / black
