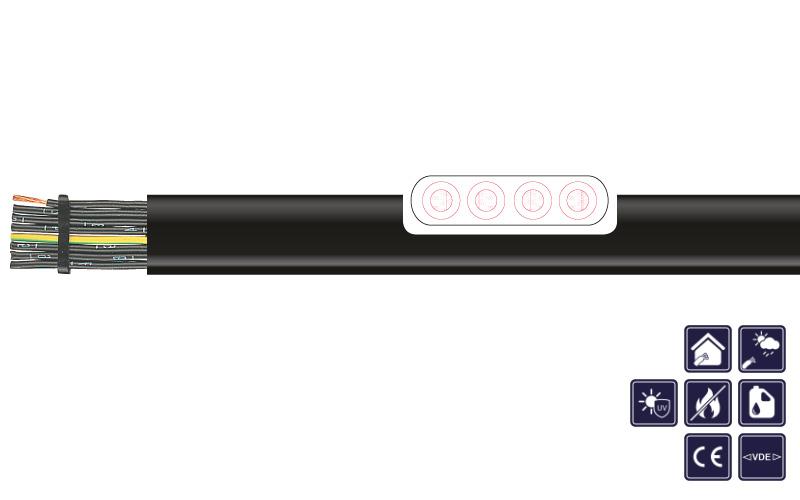

Use of cable

power and control cable for trolley systems, transfer lines, machine-tools, on hoisting devices, lift, crane and container bridges. Also in applications where cables are bended strongly in permanent moving operation in one level. Suitable for dry, humid and wet rooms and for outdoor use.

Special features

  • significant smaller bending radius compared to round cables

Remarks

  • conform to RoHS
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
  • Available accessory you'll find on pages 15.35.XX
Conductor material: Bare copper strand
Conductor class: Acc. to DIN VDE 0295 class 5/6 resp. IEC 60228 class 5/6
Core insulation: Rubber compound
Core identification: Acc. to VDE 0293-308 up to 5 wires coloured, from 6 wires black with white numerals with GNYE
Stranding: Cores parallel side by side
Shield: Coated foil + wrapped tinned wire
Outer sheath: Special rubber-compound
Sheath colour: Black
Rated voltage: 0,6/1 kV
Testing voltage: 2 kV
Current-carrying-capacity: Acc. to DIN VDE, see Technical Guideline
Min. bending radius fixed: Acc. to DIN VDE 0298 part 3
Min. bending radius moved: Acc. to DIN VDE 0298 part 3
Operat. temp. fixed min/max: -40 °C / +80 °C
Operat. temp. moved min/max: -30 °C / +80 °C
Temp. at conductor: +90 °C
Burning behavior: Self-extinguishing and flame retardant acc. to IEC 60332-1
Standard: According or similar to DIN VDE 0250 part 809

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
3000132 4 X (2 X 1) 10,2 X 30,0 - 11,8 X 33,5 273,0 590,0 black V1: M(STD)HÖU-O
3000137 7 X (2 X 1) 10,9 X 55,3 - 12,5 X 59,0 430,0 1.060,0 black V1: M(STD)HÖU-O
3001442 4 X 1,5 8,0 X 22,5 99,0 291,0 black V1: M(STD)HÖU-O
3001435 8 X 1,5 8,0 X 41,1 228,0 537,0 black V1: M(STD)HÖU-O
3001443 12 X 1,5 8,0 X 59,8 342,0 795,0 black V1: M(STD)HÖU-O
3000072 4 X 1,5 7,0 X 20,1 - 8,0 X 21,5 99,0 290,0 black V2: M(STD)HÖU-J
3000079 8 X 1,5 7,0 X 36,2 - 8,0 X 38,6 228,0 550,0 black V2: M(STD)HÖU-J
3000069 12 X 1,5 7,0 X 52,7 - 8,0 X 57,1 342,0 800,0 black V2: M(STD)HÖU-J
3000075 4 X 2,5 7,6 X 22,7 - 8,7 X 24,1 163,0 370,0 black V2: M(STD)HÖU-J
3000078 6 X 2,5 7,6 X 31,5 - 8,7 X 33,5 245,0 530,0 black V2: M(STD)HÖU-J
3000071 12 X 2,5 7,6 X 60,0 - 8,7 X 64,0 493,0 1.050,0 black V2: M(STD)HÖU-J
3000097 4 X 4 8,5 X 25,6 - 9,5 X 27,6 241,0 500,0 black V2: M(STD)HÖU-J
3000077 4 X 6 8,9 X 28,1 - 10,5 X 31,1 353,0 610,0 black V2: M(STD)HÖU-J
3000101 4 X 10 11,1 X 34,7 - 12,1 X 36,7 497,0 920,0 black V2: M(STD)HÖU-J
3000102 4 X 16 12,3 X 38,9 - 13,7 X 41,5 805,0 1.320,0 black V2: M(STD)HÖU-J
3000105 4 X 25 12,5 X 43,0 - 15,5 X 47,0 1.200,0 1.720,0 black V2: M(STD)HÖU-J
3000107 4 X 35 14,6 X 49,8 - 17,1 X 53,2 1.657,0 2.330,0 black V2: M(STD)HÖU-J
3000113 4 X 50 17,1 X 58,0 - 19,7 X 61,6 2.261,0 3.120,0 black V2: M(STD)HÖU-J
3000121 4 X 70 22,0 X 73,0 - 24,0 X 77,0 3.259,0 4.680,0 black V2: M(STD)HÖU-J
3000131 4 X 95 22,7 X 76,3 - 25,3 X 81,9 4.311,0 5.540,0 black V2: M(STD)HÖU-J
3000080 4 X 2 X 1 13,5 X 34,0 273,0 525,0 black V3: GFLCGÖU-O
3000081 7 X 2 X 1 13,5 X 60,0 430,0 909,0 black V3: GFLCGÖU-O
3001100 12 X 1,5 8,0 X 55,6 278,0 820,0 black V3: GFLCGÖU-O
3000076 4 X 4 9,1 X 26,3 241,0 493,0 black V4: MCHÖU-J
3001515 4 X 6 9,8 X 29,1 353,0 603,0 black V4: MCHÖU-J
3000073 4 X 10 11,7 X 35,4 497,0 946,0 black V4: MCHÖU-J
3000074 4 X 16 13,5 X 41,1 805,0 1.320,0 black V4: MCHÖU-J
3001085 4 X 25 15,5 X 48,0 1.200,0 1.740,0 black V4: MCHÖU-J
3001458 7 X 25 20,0 x 79,0 1.960,0 3.510,0 black V4: MCHÖU-J
3000838 4 X 35 18,0 X 60,0 1.657,0 2.700,0 black V4: MCHÖU-J
3000887 4 X 50 21,0 X 67,0 2.261,0 3.500,0 black V4: MCHÖU-J
3000919 4 X 70 22,5 X 76,0 3.259,0 4.650,0 black V4: MCHÖU-J
3001067 4 X 95 24,6 X 84,5 4.311,0 5.880,0 black V4: MCHÖU-J
3001068 4 X 120 26,9 X 85,6 4.998,0 6.730,0 black V4: MCHÖU-J
3002297 4 X 150 29,0 X 97,0 5.760,0 8.750,0 black V4: MCHÖU-J
