Use of cable

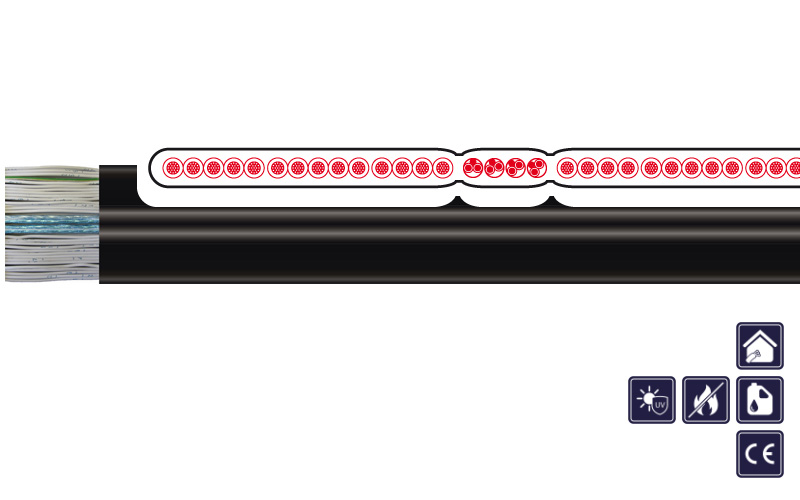

power and control lift cable, where the cable is bended strongly in permanent moving operation in one level. Suitable for dry and humid rooms.

Special features

  • significant smaller bending radius compared to round cables
  • free from lacquer damaging substances and silicone (during production)

Remarks

  • conform to RoHS
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
  • Available accessory you'll find on pages 15.35.XX
Conductor material: Bare copper strand
Conductor class: Acc. to DIN VDE 0295 class 5 resp. IEC 60228 class 5
Core insulation: 0,75 mm²: PVC; 0,34 mm²: Foam-Skin PP
Core identification: 0,75 mm²: BK with WH numerals 1-27 and GNYE, 0,34 mm²: WH-BU, WH-OR, WH-GN, WH-BN
Stranding: 0,34 mm²: 2 cores twisted to a pair with fillers
Shield: 0,34 mm²: plastic clad aluminium foil with subjacent drain wire
Overall stranding: Parallel side by side: 14 cores 0,75 mm² (no. 1-14) - 4 shielded pairs 0,34 mm² (WH-BU, WH-OR, WH-GN, WH-BN) - 14 cores 0,75 mm² (no. 15-24, GNYE, no. 25-27)
Outer sheath: PVC
Sheath colour: Black
Rated voltage: Uo/U: 300/500V
Testing voltage: 0,75 mm²: 2 kV; 0,34 mm²: c/c 1,5 kV, c/s 1 kV
Conductor resistance: 0,75 mm²: 26 Ω / km; 0,34 mm²: 54,4 Ω / km
Current-carrying-capacity: Acc. to DIN VDE 0298 part 4
Characteristic impedance: Pairs: 0,34 mm²: 110 Ω ± 10 %
Min. bending radius moved: 150 mm
Operat. temp. moved min/max: -15 °C / +70°C
Burning behavior: Flame retardant and self-extinguishing acc. to IEC 60332-1-2
Suspension height: Max. 45 m
Standard: Acc. to EN 50214
Speed: Max. 6,0 m / s

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
3001773 28 G 0,75 + 4 X (2X0,34)ST 4,2 X 88,0 - 5,0 X 90,0 227,0 760,0 black V0: (H)05VE7A7VH6-F
