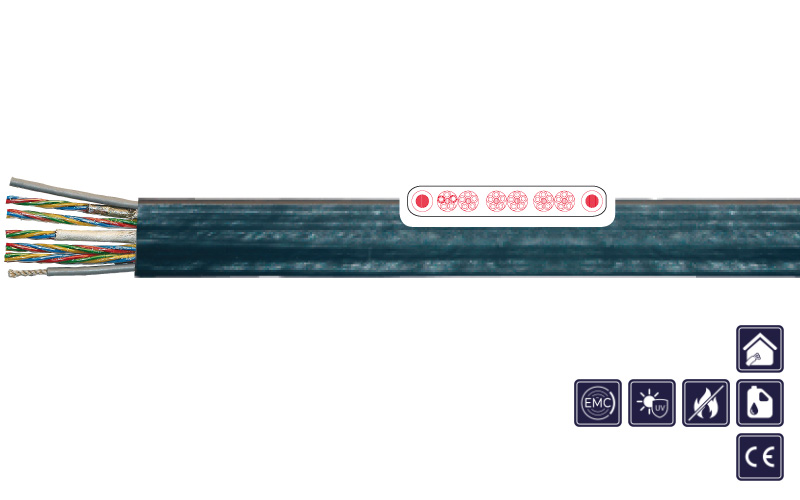

Use of cable

shielded power, control and signal transmission cable for crane facilities, current entries to high rack transport vehicles, in industrial television on moving cameras and machine tools. Applicable for all control, measure and telecommunication systems. Suitable for dry and humid rooms.

Special features

  • significant smaller bending radius compared to round cables
  • free from lacquer damaging substances and silicone (during production)
  • cold resistant types FESTOONTEC® KYCFLY, FESTOONTEC® KYFLCY

Remarks

  • conform to RoHS
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
  • Available accessory you'll find on pages 15.35.XX
Conductor material: Bare copper strand
Conductor class: Acc. to DIN VDE 0295 class 5/6 resp. IEC 60228 class 5/6
Core insulation: PVC
Core identification: Acc. to VDE 0293-308 up to 5 wires coloured, from 6 wires black with white numerals with or without GNYE resp. special colour
Stranding: Cores resp. bundles parallel side by side
Shield: Single core or bundle with copper braid or wrapped wire, bare or tinned; coverage ca. 70% - 80%
Outer sheath: PVC
Sheath colour: Black, RAL 9005
Rated voltage: 0,5 mm² = 300V; > 1,0 mm² = Uo/U 300/500 V
Testing voltage: 1,2 kV / 2 kV
Current-carrying-capacity: Acc. to DIN VDE, see Technical Guideline
Min. bending radius fixed: 10 x d
Min. bending radius moved: 10 x d
Operat. temp. fixed min/max: Y...: -25 °C / +60 °C; KY...: -40 °C / +70 °C
Operat. temp. moved min/max: Y...: -25 °C / +60 °C; KY...: -30 °C / +70 °C
Temp. at conductor: +70 °C
Burning behavior: Self-extinguishing and flame retardant acc. to IEC 60332-1
Suspension height: Max. 35 m
Standard: Similar to DIN VDE 0250

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
3000680 5 X 0,5 4,2 X 19,5 - 5,0 X 22,0 60,0 140,0 black V1: YCFLY
3000668 4 X 1 5,0 X 13,9 57,5 131,0 black V1: YCFLY
3003303 8 G 1 4,6 X 26,2 - 5,4 X 27,8 130,0 275,5 black V1: YCFLY
3000687 8 X 1 4,6 X 26,2 - 5,4 X 27,8 130,0 275,5 black V1: YCFLY
3000664 7 X 4 X 0,5 8,8 X 46,5 - 10,3 X 50,0 222,0 745,0 black V2: YFLCY
3000665 7 X 3 G 1 8,8 X 45,8 - 10,4 X 54,3 392,0 755,0 black V2: YFLCY
3000667 14 X 3 GG 1 10,3 X 100,0 551,0 1.510,0 black V2: YFLCY
3000675 4 G 1,5 5,5 X 18,2 - 6,5 X 19,6 114,0 210,0 black V4: KYCFLY - PE geschirmt / shielded
3000669 4 X 1,5 5,5 X 18,2 - 6,5 X 19,6 114,0 210,0 black V3: KYCFLY
3000682 8 X 1,5 5,3 X 34,0 - 6,3 X 37,1 220,0 400,0 black V3: KYCFLY
3003321 12 G 1,5 6,5 X 52,7 335,0 610,0 black V3: KYCFLY
3000684 12 X 1,5 5,0 X 48,0 - 6,5 X 52,7 335,0 610,0 black V3: KYCFLY
3001157 7 G 2,5 7,0 X 34,0 229,0 10,0 black V3: KYCFLY
3000681 8 G 1,5 5,3 X 34,0 - 6,3 X 37,1 220,0 400,0 black V4: KYCFLY - PE geschirmt / shielded
3000671 4 G 2,5 6,4 X 20,0 - 7,4 X 22,0 168,0 270,0 black V4: KYCFLY - PE geschirmt / shielded
3000670 8 G 2,5 6,6 X 40,0 - 7,4 X 44,0 325,0 560,0 black V4: KYCFLY - PE geschirmt / shielded
3000672 4 G 4 7,0 X 22,8 - 9,4 X 28,1 222,0 400,0 black V4: KYCFLY - PE geschirmt / shielded
3000673 4 G 6 9,0 X 29,0 - 9,8 X 31,2 325,0 520,0 black V4: KYCFLY - PE geschirmt / shielded
3000674 4 G 10 9,9 X 34,3 - 11,8 X 37,5 522,0 840,0 black V4: KYCFLY - PE geschirmt / shielded
3000764 4 G 16 11,9 X 39,7 - 14,0 X 46,0 784,0 1.280,0 black V4: KYCFLY - PE geschirmt / shielded
3000753 4 G 25 14,5 X 49,0 - 15,0 X 51,0 1.163,0 1.800,0 black V4: KYCFLY - PE geschirmt / shielded
3000785 4 G 35 14,6 X 52,8 - 16,8 X 59,0 1.786,0 2.500,0 black V4: KYCFLY - PE geschirmt / shielded
3002275 4 G 50 18,0 X 56,0 - 22,0 X 62,0 2.519,0 2.850,0 black V4: KYCFLY - PE geschirmt / shielded
3001451 4 G 2,5 6,4 X 20,0 - 7,4 X 22,0 154,0 270,0 black V5: KYCFLY - PE ungeschirmt / unshielded
3001452 4 G 4 7,0 X 22,8 - 9,4 X 28,1 208,0 400,0 black V5: KYCFLY - PE ungeschirmt / unshielded
3001453 4 G 6 9,0 X 29,0 - 9,8 X 31,2 325,0 520,0 black V5: KYCFLY - PE ungeschirmt / unshielded
3001454 4 G 10 9,9 X 34,3 - 11,8 X 37,5 480,0 840,0 black V5: KYCFLY - PE ungeschirmt / unshielded
3001455 4 G 16 11,9 X 39,7 - 14,0 X 46,0 700,0 1.280,0 black V5: KYCFLY - PE ungeschirmt / unshielded
3001456 4 G 25 14,5 X 49,0 - 15,0 X 51,0 1.065,0 1.800,0 black V5: KYCFLY - PE ungeschirmt / unshielded
3001736 4 G 35 14,6 X 52,8 - 16,8 X 59,0 1.430,0 2.300,0 black V5: KYCFLY - PE ungeschirmt / unshielded
3000679 8 X 7 G 0,5 11,7 X 63,0 - 12,5 X 71,0 455,0 1.180,0 black V6: KYFLCY
3000662 4 X 4 G 1 10,8 X 34,5 - 11,5 X 35,5 315,0 625,0 black V6: KYFLCY
3003290 4 X 4 G 2,5 11,2 X 36,8 536,0 890,0 black V6: KYFLCY
