Use of cable

power and control cable in lift and conveyor facilities, on lifting platforms and especially for teach pads on electrical hoisting devices. Suitable for dry, humid and wet rooms also outdoor.

Special features

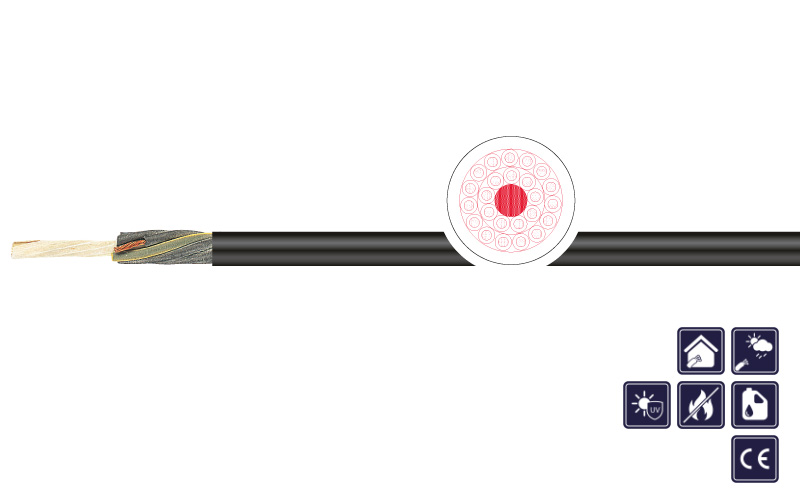

  • central supporting element with high tensile strength
  • free from lacquer damaging substances and silicone (during production)

Remarks

  • conform to RoHS
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • see installation guidlines implicitly
  • Also available as screened type YMHYCY-KT (EMC)
  • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Conductor material: Bare copper strand
Conductor class: Acc. to DIN VDE 0295 class 6 resp. IEC 60228 cl. 6
Core insulation: PVC
Core identification: Acc. to VDE 0293-308 up to 5 wires coloured, from 6 wires black with white numerals with or without GNYE
Stranding: Cores stranded in layers
Outer sheath: PVC
Sheath colour: Black, RAL 9005
Rated voltage: Uo/U: 300/500 V
Testing voltage: 2,5 kV
Current-carrying-capacity: Acc. to DIN VDE, see Technical Guideline
Min. bending radius fixed: 12 x d
Min. bending radius moved: 20 x d
Operat. temp. fixed min/max: -40 °C / +60 °C
Operat. temp. moved min/max: -30 °C / +60 °C
Temp. at conductor: +70 °C
Burning behavior: Self-extinguishing and flame retardant acc. to IEC 60332-1
Standard: Similar to DIN VDE 0250

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
3002369 5 X 1 10,0 - 12,0 48,0 160,0 black V0: YMHY-KT
3002370 7 X 1 11,5 -13,5 67,2 210,0 black V0: YMHY-KT
3000197 18 G 1 17,4 - 18,0 173,0 350,0 black V0: YMHY-KT
3000187 36 G 1 24,0 345,6 820,0 black V0: YMHY-KT
3000174 4 X 1,5 11,2 58,0 158,0 black V0: YMHY-KT
3000188 4 X 1,5 9,0 - 11,0 58,0 150,0 black V0: YMHY-KT
3000175 6 X 1,5 11,7 - 12,5 86,0 179,0 black V0: YMHY-KT
3000176 7 X 1,5 12,4 - 12,8 101,0 212,0 black V0: YMHY-KT
3000177 8 X 1,5 13,5 - 13,9 115,2 252,0 black V0: YMHY-KT
3000178 10 X 1,5 15,7 - 16,5 144,0 327,0 black V0: YMHY-KT
3000179 12 X 1,5 17,6 - 18,1 173,0 401,0 black V0: YMHY-KT
3000184 14 X 1,5 19,7 210,0 457,0 black V0: YMHY-KT
3000182 18 X 1,5 18,2 - 18,7 259,0 480,0 black V0: YMHY-KT
3000186 24 X 1,5 21,2 - 21,8 346,0 652,0 black V0: YMHY-KT
3000192 4 X 2,5 13,4 96,0 230,0 black V0: YMHY-KT
3001724 7 G 1,5 13,0 101,0 212,0 black V0: YMHY-KT
3000180 12 G 1,5 17,6 - 18,1 173,0 401,0 black V0: YMHY-KT
3000181 18 G 1,5 18,2 - 18,7 259,0 480,0 black V0: YMHY-KT
3000190 30 G 1,5 24,5 444,0 858,0 black V0: YMHY-KT
3000194 7 X 2,5 14,6 168,0 321,0 black V0: YMHY-KT
3000195 8 X 2,5 16,8 - 17,3 192,0 382,0 black V0: YMHY-KT
