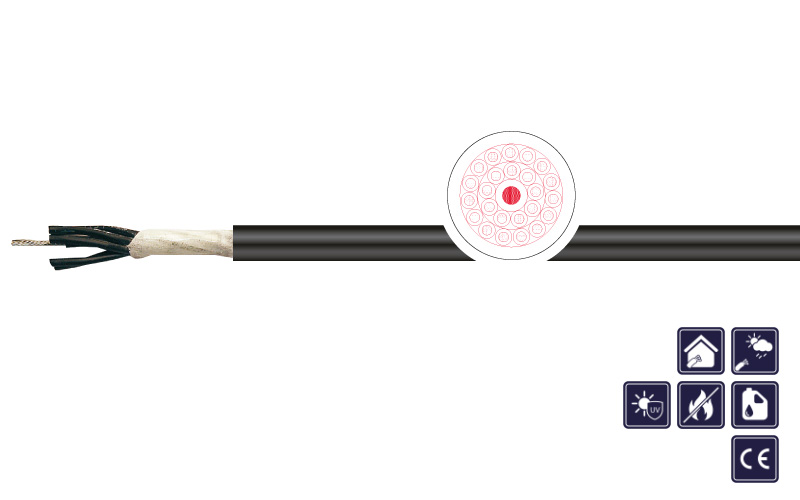

Use of cable

control cable for teach pads and also for lift, crane and conveyor facilities, in high rack facilities and in port facilities. Suitable for indoor use and outdoor use up to -25° C.

Special features

  • central steel supporting element with high tensile strength
  • free from lacquer damaging substances and silicone (during production)

Remarks

  • conform to RoHS
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • see installation guidlines implicitly
  • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Conductor material: Bare copper strand
Conductor class: Acc. to DIN VDE 0295 class 6 resp. IEC 60228 cl. 6
Core insulation: PVC
Core identification: Acc. to VDE 0293-308 up to 5 wires coloured, from 6 wires black with white numerals without GNYE
Stranding: Cores stranded in layers
Outer sheath: PVC
Sheath colour: Black, RAL 9005
Rated voltage: Uo/U: 300/500 V
Testing voltage: 2 kV
Current-carrying-capacity: Acc. to DIN VDE, see Technical Guideline
Min. bending radius fixed: 10 x d
Min. bending radius moved: 10 x d
Operat. temp. fixed min/max: -40 °C / +55 °C
Operat. temp. moved min/max: -30 °C / +55 °C
Temp. at conductor: +70 °C
Burning behavior: Self-extinguishing and flame retardant acc. to IEC 60332-1
Standard: Similar to DIN VDE 0250

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
3000207 6 X 1 10,6 -11,6 58,0 190,0 black V0: YMHY-KST
3000185 18 X 1 14,1 - 15,1 173,0 440,0 black V0: YMHY-KST
3000210 24 X 1 16,8 - 17,8 230,0 550,0 black V0: YMHY-KST
