Use of cable

control cable for teach pads and also for lift, crane and conveyor facilities, in high rack facilities and in port facilities. Suitable for indoor use and outdoor use up to -25° C.

Special features

  • with steel-supporting elements
  • free from lacquer damaging substances and silicone (during production)

Remarks

  • conform to RoHS
  • free from axial torsion
  • capable for high load bearing capacity
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Conductor material: Bare copper strand
Conductor class: Acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5
Core insulation: Thermoplast
Core identification: Black or white with numerals with or without GNYE
Stranding: Cores stranded in layers

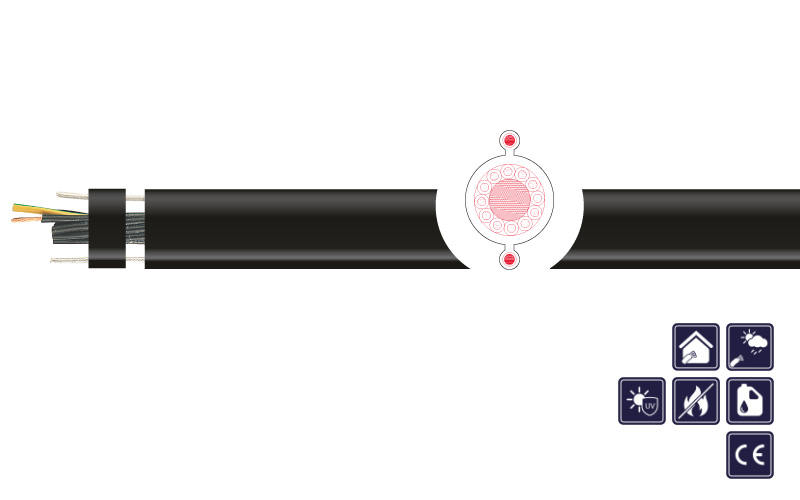

Supporting element: 2 steel supporting elements oppositely integrated into the outer sheath
Outer sheath: PVC
Sheath colour: Black, RAL 9005
Rated voltage: Uo/U: 300/500 V
Testing voltage: 2 kV
Current-carrying-capacity: Acc. to DIN VDE, see Technical Guideline
Min. bending radius fixed: 12 x d
Min. bending radius moved: 12 x d
Operat. temp. fixed min/max: -25 °C / +60 °C
Operat. temp. moved min/max: -25 °C / +60 °C
Temp. at conductor: +70 °C
Burning behavior: Self-extinguishing and flame retardant acc. to IEC 60332-1
Standard: Similar to DIN VDE 0250

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
3000020 12 G 1 12,5 (19,5) - 15,5 (28,5) 115,0 408,0 black V1: FYMYTW-J
3000024 18 G 1 15,5 (22,7) - 17,6 (33,4) 173,0 590,0 black V1: FYMYTW-J
3000027 25 G 1 17,5 (27,0) - 21,8 (37,5) 240,0 751,0 black V1: FYMYTW-J
3001468 36 G 1 23,1 (38,3) 345,6 910,0 black V1: FYMYTW-J
3000032 8 G 1,5 11,5 (21,0) - 15,5 (28,5) 115,0 419,0 black V1: FYMYTW-J
3000021 12 G 1,5 12,5 (22,5) - 16,7 (31,5) 173,0 515,0 black V1: FYMYTW-J
3000025 20 G 1,5 15,5 (26,0) - 21,8 (37,5) 288,0 798,0 black V1: FYMYTW-J
3001525 3 G 2,5 10,2 (17,3) 80,0 235,0 black V1: FYMYTW-J
3000031 5 X 1,5 9,0 (18,0) - 14,3 (23,3) 77,0 349,0 black V2: FYMYTW-O
3000033 8 X 1,5 11,5 (21,0) - 15,5 (28,5) 115,0 419,0 black V2: FYMYTW-O
3001209 12 X 1,5 12,5 (22,5) - 16,7 (31,5) 173,0 515,0 black V2: FYMYTW-O
3000023 16 X 1,5 14,5 (22,7) - 18,5 (32,0) 230,0 594,0 black V2: FYMYTW-O
3000026 20 X 1,5 15,5 (26,0) - 21,8 (37,5) 288,0 798,0 black V2: FYMYTW-O
3000991 30 X 1,5 21,0 (30,8) - 24,7 (35,5) 450,0 980,0 black V2: FYMYTW-O
