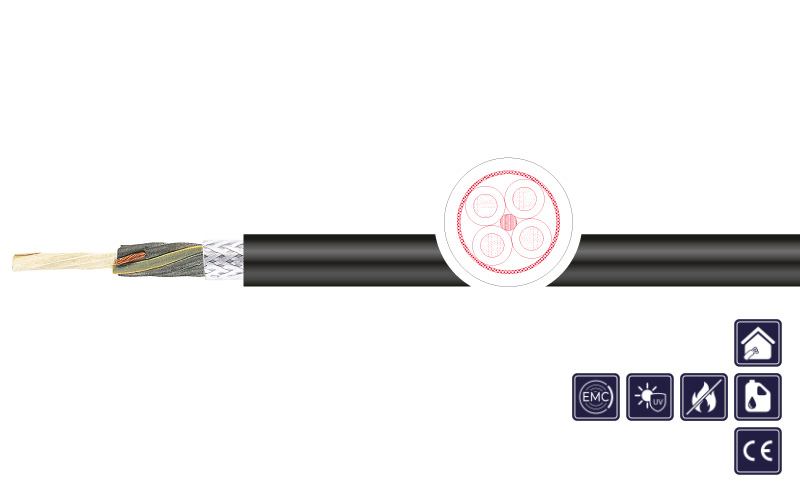

Use of cable

high-flexible lift control cable with supporting element for medium mechanical stress. Suitable for dry and humid rooms.

Special features

  • KYSTCY: without sustain braid, shielded, EMC
  • KYSTCUY: with sustain braid, shielded, EMC
  • KYSTFUY: sustain braid and single shielded cores 0.5 mm², EMC
  • free from lacquer damaging substances (during production)

Remarks

  • conform to RoHS
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
  • Available accessory you'll find on pages 15.35.XX
Conductor material: Bare copper strand
Conductor class: Acc. to DIN VDE 0295 class 6 resp. IEC 60228 cl. 6
Core insulation: PVC, PE (0,5)
Core identification: Acc. to VDE 0293 black with white numerals with or without GNYE; KYSTFUY: cores 0,5 mm² transparent / pairs 0,5 mm² acc. to DIN 47100
Stranding: Cores stranded in layers
Overall stranding: Cores stranded in layers
Shield3: Copper braid/wrapped tinned wires; coverage ca. 80%
Outer sheath: PVC
Sheath colour: Black, RAL 9005
Rated voltage: 0,5 mm² - 300 V; >0,75 mm² - 300/500 V
Current-carrying-capacity: Acc. to DIN VDE, see Technical Guideline
Min. bending radius fixed: 12 x d
Min. bending radius moved: 12 x d
Operat. temp. fixed min/max: -30 °C / +70 °C
Operat. temp. moved min/max: -5 °C / +70 °C
Burning behavior: Self-extinguishing and flame retardant acc. to IEC 60332-1
Suspension height: KYSTCY: max. 25 m / KYSTCUY, KYSTFUY: max. 50 m
Standard: Similar to DIN VDE 0250

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
3000222 4 X 0,75 9,0 69,0 123,0 black V1: KYSTCY
3001217 6 X 0,75 11,3 77,0 185,0 black V1: KYSTCY
3000224 7 X 0,75 11,5 106,0 198,0 black V1: KYSTCY
3000223 12 X 0,75 15,9 159,0 277,0 black V1: KYSTCY
3001232 7 G 1 14,7 108,0 165,0 black V2: KYSTCUY
3001233 9 G 1 16,3 134,0 200,0 black V2: KYSTCUY
3001234 12 G 1 18,6 175,0 360,0 black V2: KYSTCUY
3001235 18 G 1 19,1 255,0 490,0 black V2: KYSTCUY
3001236 24 G 1 21,8 305,0 650,0 black V2: KYSTCUY
3001226 18 G 1 + 2 X (0,5) 19,5 210,0 500,0 black V3: KYSTFUY
3000819 28 G 1 + 2 X (0,5) C 24,4 305,3 740,0 black V3: KYSTFUY
3001224 32 G 1 + 4 X (0,5) 26,5 354,0 870,0 black V3: KYSTFUY
3001227 30 G 1 + 3 X (2 X 0,5) C 26,3 354,0 990,0 black V3: KYSTFUY
