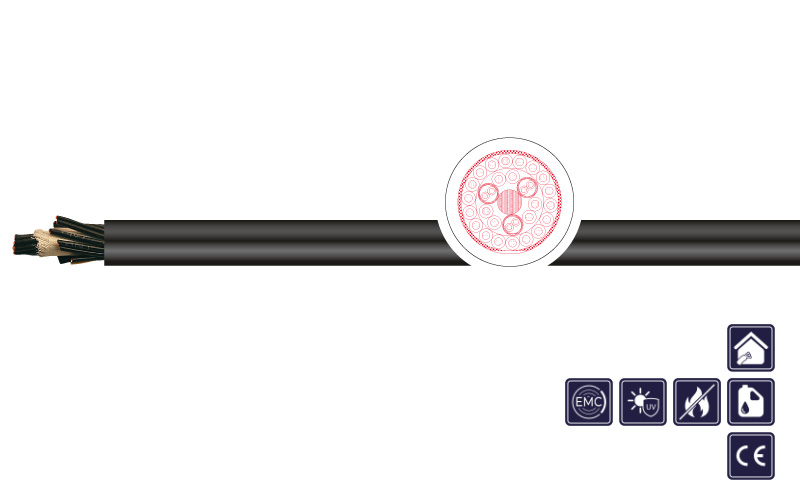

Use of cable

halogen-free lift control cable with supporting element for medium mechanical stress. Suitable for dry and humid rooms.

Special features

  • LIFTTEC® K9YSTCU11Y: shielded pairs
  • LIFTTEC® K2YSTFU11Y / K9YSTFU11Y: shielded elements as pairs
  • EMC
  • free from lacquer damaging substances and silicone (during production)

Remarks

  • conform to RoHS
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
  • Available accessory you'll find on pages 15.35.XX
Conductor material: Bare copper strand
Conductor class: Acc. to DIN VDE 0295 class 6 resp. IEC 60228 cl. 6
Core insulation: Special thermoplastic compound
Core identification: Acc. to VDE 0293 black with white numerals with GNYE, 3 x (2 x 0,5) DIN 47100
Stranding: Stranded in pairs, cores stranded in layers
Shield: K2YSTFU11Y / K9YSTFU11Y: (2X0,5)C: tinned copper braid, coverage approx. 75 %
Shield3: K9YSTCU11Y: tinned copper braid, coverage approx. 85 %
Outer sheath: PUR
Sheath colour: Black, RAL 9005
Rated voltage: > 0,5 mm² = 300 V; > 1,0 mm² = Uo/U 300/500 V
Current-carrying-capacity: Acc. to DIN VDE, see Technical Guideline
Min. bending radius fixed: 15 x d
Min. bending radius moved: 15 x d
Operat. temp. fixed min/max: -30 °C / +70 °C
Operat. temp. moved min/max: -30 °C / +70 °C
Halogen free: Acc. to IEC 60754-1
Burning behavior: Self-extinguishing and flame retardant acc. to IEC 60332-2-2
Suspension height: See table
Standard: Similar to DIN VDE 0282

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
3001275 3 X (2 X 0,75) 12,1 81,0 175,0 black V1: K9YSTCU11Y
3001276 6 X (2 X 0,75) 15,8 182,0 370,0 black V1: K9YSTCU11Y
3001299 18 G 1 + 3 X (2 X 0,5)C 23,4 239,0 585,0 black V2: K2YSTFU11Y
3001266 20 G 1 + 3 X (2 X 0,5)C 22,0 260,0 630,0 black V2: K2YSTFU11Y
3001278 24 G 1 + 3 X (2 X 0,5)C 23,4 289,0 755,0 black V2: K2YSTFU11Y
3001268 30 G 1 + 3 X (2 X 0,5)C 26,1 369,0 905,0 black V2: K2YSTFU11Y
3001269 30 G 1 + 3 X (2 X 0,5)C 22,0 369,0 670,0 black V3: K9YSTFU11Y
