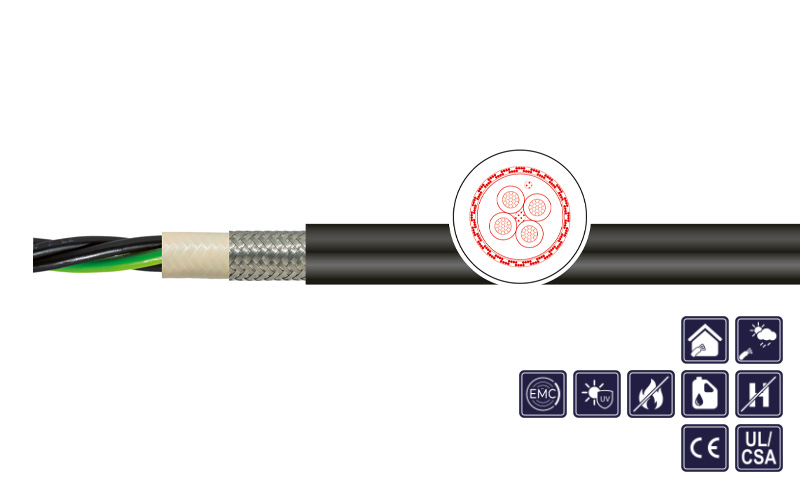

Use of cable

flexible shielded power cable for EMC-compatible connencting at highest electrical and mechanical requirements in drag chain and motion drive systems in machine and plant engineering in the field of crane and conveyor technology in dry and humid rooms also outdoor.

Special features

  • UL/CSA approved
  • flame-retardant, low abrasion
  • resistant to oil, grease, coolant fluids and lubricants
  • resistant to oil acc. to DIN EN 60811-404, 168 h bei +100 °C
  • silicone-free
  • UV-resistant
  • NEW: with Ripcord, for faster and core protected dismantling

Remarks

  • conform to RoHS
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
Conductor material: Bare copper strand
Conductor class: Super fine wires acc. to DIN VDE 0295 cl. 6 resp. IEC 60228 cl. 6
Core insulation: TPE
Core identification: BK with WH numerals, one core GNYE 1.core: U / L1 / C / L+ *** 2.core: V / L2 3.core: W / L3 / D / L- *** 4.core: 4 / N
Stranding: Cores stranded in opt. lay length around tensile strength center
Inner sheath material: TPE, with Rip cord
Shield3: Copper braid tinned, opt. coverage appr. 85 %
Outer sheath: TPE
Sheath colour: Black, RAL 9005
Rated voltage: 600/1.000 V
Testing voltage: 4.000 V
Min. bending radius fixed: 4 x d
Min. bending radius moved: 7,5 x d
Operat. temp. fixed min/max: -50 °C / +90 °C
Operat. temp. moved min/max: -40 °C / +90 °C
Burning behavior: Acc. to IEC 60332-1, cable flame test, FT1
Approvals: UL/CSA - cURus 80°C, 1000 V
Speed: Self-supporting: max. 10 m/s, gliding: max. 6 m/s
Acceleration: Max. 80 m/s²

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
1705823 4 G 1,5 (AWG 16) 9,8 86,0 148,0 black V0: KAWEFLEX Allround 7420 SK-C-TPE UL/CSA
1705833 4 G 2,5 (AWG 14) 11,2 132,0 210,0 black V0: KAWEFLEX Allround 7420 SK-C-TPE UL/CSA
1705834 5 G 2,5 (AWG 14) 12,4 150,0 260,0 black V0: KAWEFLEX Allround 7420 SK-C-TPE UL/CSA
1705843 4 G 4 (AWG 12) 13,7 212,0 325,0 black V0: KAWEFLEX Allround 7420 SK-C-TPE UL/CSA
1705844 5 G 4 (AWG 12) 14,9 260,0 395,0 black V0: KAWEFLEX Allround 7420 SK-C-TPE UL/CSA
1705853 4 G 6 (AWG 10) 16,2 305,0 461,0 black V0: KAWEFLEX Allround 7420 SK-C-TPE UL/CSA
1705854 5 G 6 (AWG 10) 17,8 378,0 561,0 black V0: KAWEFLEX Allround 7420 SK-C-TPE UL/CSA
1705863 4 G 10 (AWG 8) 19,9 513,0 692,0 black V0: KAWEFLEX Allround 7420 SK-C-TPE UL/CSA
1705864 5 G 10 (AWG 8) 22,5 660,0 920,0 black V0: KAWEFLEX Allround 7420 SK-C-TPE UL/CSA
1705873 4 G 16 (AWG 6) 22,5 805,0 1.093,0 black V0: KAWEFLEX Allround 7420 SK-C-TPE UL/CSA
1705874 5 G 16 (AWG 6) 27,9 990,0 1.405,0 black V0: KAWEFLEX Allround 7420 SK-C-TPE UL/CSA
1705883 4 G 25 (AWG 4) 27,6 1.147,0 1.473,0 black V0: KAWEFLEX Allround 7420 SK-C-TPE UL/CSA
1705892 4 G 35 (AWG 2) 34,6 1.650,0 2.290,0 black V0: KAWEFLEX Allround 7420 SK-C-TPE UL/CSA
1705901 4 G 50 (AWG 1) 40,4 2.300,0 3.240,0 black V0: KAWEFLEX Allround 7420 SK-C-TPE UL/CSA
