Use of cable

flexible power cable for highest mechanical and electrical requirements in drag chain applications and moving drive systems in machine and plant engineering in the field of crane and conveyor technology in dry and humid rooms also outdoor.

Special features

  • conform to DESINA
  • UL/CSA approved
  • halogen-free, flame-retardant, low adhesion
  • resistant to oil, grease, coolant fluids and lubricants
  • resistant to oil acc. to DIN EN 60811-404, 168 h bei +100 °C
  • silicone-free
  • UV-resistant
  • NEW: with Ripcord, for faster and core protected dismantling

Remarks

  • conform to RoHS
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive) CE

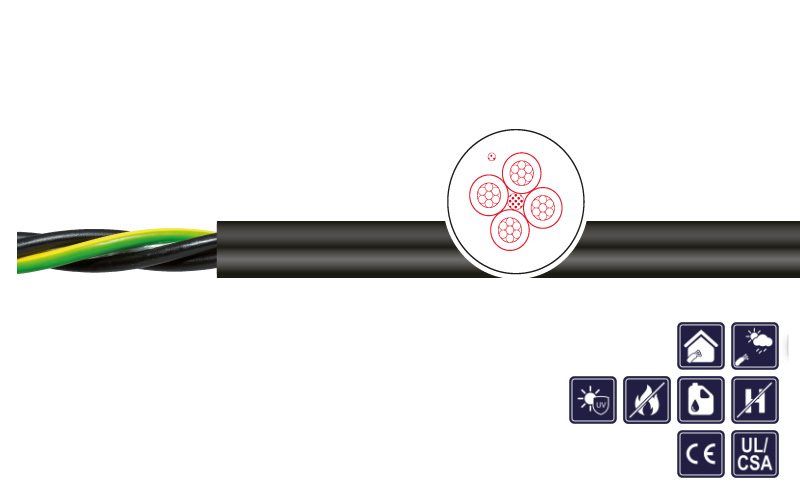

Conductor material: Bare copper strand
Conductor class: Super fine wires acc. to DIN VDE 0295 cl. 6 resp. IEC 60228 cl. 6
Core insulation: TPE
Core identification: BK with WH numerals, one core GNYE 1.core: U / L1 / C / L+ *** 2.core: V / L2 3.core: W / L3 / D / L- *** 4.core: 4 / N
Stranding: Cores stranded in opt. lay length around tensile strength center
Outer sheath: TPE, with rip cord
Sheath colour: Black (RAL 9005)
Rated voltage: 600/1.000 V
Testing voltage: 4.000 V
Min. bending radius fixed: 4 x d
Min. bending radius moved: 7,5 x d
Operat. temp. fixed min/max: -50 °C / +90 °C
Operat. temp. moved min/max: -40 °C / +90 °C
Burning behavior: Acc. to IEC 60332-1, cable flame test, FT1
Approvals: UL/CSA - cURus 80 °C, 1.000 V
Speed: Self-supporting: max. 10 m/s, gliding: max. 6 m/s
Acceleration: Max. 80 m/s²

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
1705203 4 G 1,5 (AWG 16) 7,6 58,0 97,0 black V0: KAWEFLEX Allround 7320 SK-TPE UL/CSA
1705213 4 G 2,5 (AWG 14) 9,0 96,0 151,0 black V0: KAWEFLEX Allround 7320 SK-TPE UL/CSA
1705214 5 G 2,5 (AWG 14) 9,8 120,0 187,0 black V0: KAWEFLEX Allround 7320 SK-TPE UL/CSA
1705224 4 G 4 (AWG 12) 10,9 158,0 232,0 black V0: KAWEFLEX Allround 7320 SK-TPE UL/CSA
1705225 5 G 4 (AWG 12) 12,1 192,0 295,0 black V0: KAWEFLEX Allround 7320 SK-TPE UL/CSA
1706622 4 X 6 (AWG 10) 13,4 231,0 348,0 black V0: KAWEFLEX Allround 7320 SK-TPE UL/CSA
1705234 4 G 6 (AWG 10) 13,4 231,0 348,0 black V0: KAWEFLEX Allround 7320 SK-TPE UL/CSA
1705235 5 G 6 (AWG 10) 15,0 288,0 436,0 black V0: KAWEFLEX Allround 7320 SK-TPE UL/CSA
1705245 4 G 10 (AWG 8) 17,2 384,0 570,0 black V0: KAWEFLEX Allround 7320 SK-TPE UL/CSA
1705246 5 G 10 (AWG 8) 19,3 480,0 721,0 black V0: KAWEFLEX Allround 7320 SK-TPE UL/CSA
1705256 4 G 16 (AWG 6) 20,4 614,0 849,0 black V0: KAWEFLEX Allround 7320 SK-TPE UL/CSA
1705257 5 G 16 (AWG 6) 23,0 768,0 1.056,0 black V0: KAWEFLEX Allround 7320 SK-TPE UL/CSA
1705267 4 G 25 (AWG 4) 24,5 960,0 1.206,0 black V0: KAWEFLEX Allround 7320 SK-TPE UL/CSA
1705277 4 G 35 (AWG 2) 31,0 1.344,0 1.914,0 black V0: KAWEFLEX Allround 7320 SK-TPE UL/CSA
1705287 4 G 50 (AWG 1) 36,6 1.920,0 2.715,0 black V0: KAWEFLEX Allround 7320 SK-TPE UL/CSA
1705297 4 G 70 (AWG 2/0) 38,8 2.688,0 3.450,0 black V0: KAWEFLEX Allround 7320 SK-TPE UL/CSA
