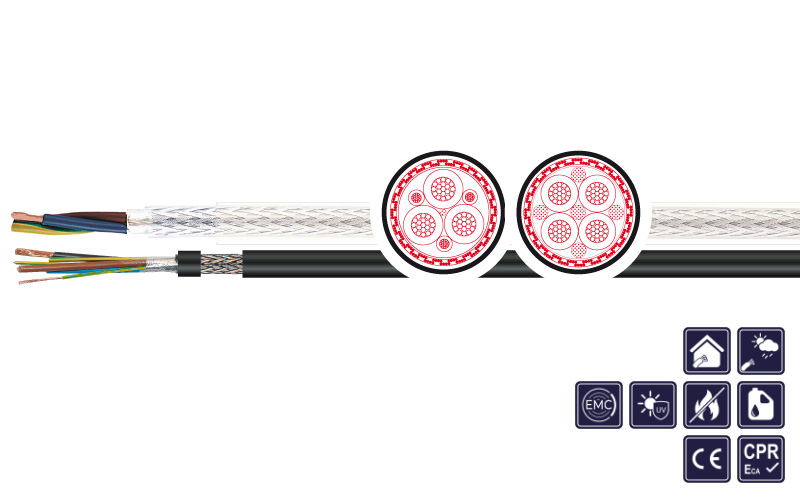

Use of cable

power, control and connecting cable for drive systems with frequency converter technology, for fixed laying and casually movement without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms. Outdoor use (only K-version), but no laying underground.

Special features

  • largely resistant to acids, bases and specified types of oil
  • max. perm. current carrying capacity at 30 ° C ambient temperature.
  • low operating capacity, low coupling resistance
  • black version with UV-resistant, flexible at low temp. outer sheath
  • enables trouble-free operation of frequency converters through optimum EMC compliant shielding
  • low capacitance enables longer cable lengths between motor and frequency converter
  • increased power transmission with the same conductor cross-section compared to standard 2YSL(St)CY versions

Remarks

  • conform to RoHS, conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • LABS-/silicone-free (during production)
  • Special versions, e.g. for direct laying underground 2XSL(St)CYK-J DB 0,6/1 kV EMC (DB = direct burial), other dimensions, cross-sections, core and jacket colours are manufactured on request.
Conductor material: Bare copper strand
Conductor class: Acc. to IEC 60228 cl. 5
Core insulation: XLPE
Core identification: Acc. to DIN VDE 0293-308 coloured cores with GNYE
Stranding: Stranded in layers
Shield3: Alu-lamin. polyester foil, metal side outside, cover. 100% under copper braid tinned
Outer sheath: PVC
Sheath colour: Transparent; K-version: black
Rated voltage: Uo/U 0,6/1 kV - highest permissible operating voltage Single phase and three-phase: 700/1200 V, DC operation: 900/1800 V
Testing voltage: 4 kV
Conductor resistance: Acc. to IEC 60228 cl. 5
Insulation resistance: Min. 200 MΩ x km
Current-carrying-capacity: Look at the table on the right side
Capacity: Look at the table on the right side
Min. bending radius fixed: ≤ 12mm Ø: 5 x d; ≤ 20mm Ø: 7,5 x d; > 20mm Ø: 10 x d
Min. bending radius moved: ≤ 12mm Ø: 10 x d; ≤ 20mm Ø: 15 x d; > 20mm Ø: 20 x d
Operat. temp. fixed min/max: -40 °C / +90 °C
Operat. temp. moved min/max: -5 °C / +90°C, K-version: -15 °C / +90°C
Temp. at conductor: + 90 °C in operation; +250 °C in case of short-circuit
Burning behavior: Self-extinguishing & flame-retardant acc.to IEC 60332-1

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
1004896 4 G 1,5 10,9 95,0 212,0 transparent V1: 2XSL(ST)CY-J 0,6/1KV EMV transparent
1004897 4 G 2,5 12,0 150,0 270,0 transparent V1: 2XSL(ST)CY-J 0,6/1KV EMV transparent
1004898 4 G 4 13,3 238,0 362,0 transparent V1: 2XSL(ST)CY-J 0,6/1KV EMV transparent
1004899 4 G 6 15,2 320,0 582,0 transparent V1: 2XSL(ST)CY-J 0,6/1KV EMV transparent
1004900 4 G 10 18,0 533,0 794,0 transparent V1: 2XSL(ST)CY-J 0,6/1KV EMV transparent
1004901 4 G 16 21,4 789,0 1.188,0 transparent V1: 2XSL(ST)CY-J 0,6/1KV EMV transparent
1004902 4 G 25 25,9 1.236,0 1.713,0 transparent V1: 2XSL(ST)CY-J 0,6/1KV EMV transparent
1004903 4 G 35 29,1 1.662,0 2.402,0 transparent V1: 2XSL(ST)CY-J 0,6/1KV EMV transparent
1004904 4 G 50 33,8 2.345,0 2.718,0 transparent V1: 2XSL(ST)CY-J 0,6/1KV EMV transparent
1004905 4 G 70 38,7 3.196,0 3.636,0 transparent V1: 2XSL(ST)CY-J 0,6/1KV EMV transparent
1004906 4 G 95 42,9 4.316,0 4.700,0 transparent V1: 2XSL(ST)CY-J 0,6/1KV EMV transparent
1004907 4 G 120 49,9 5.435,0 5.699,0 transparent V1: 2XSL(ST)CY-J 0,6/1KV EMV transparent
1004908 4 G 150 54,2 6.394,0 7.043,0 transparent V1: 2XSL(ST)CY-J 0,6/1KV EMV transparent
1004909 4 G 185 60,5 7.639,0 8.384,0 transparent V1: 2XSL(ST)CY-J 0,6/1KV EMV transparent
1004910 4 G 240 67,1 10.013,0 11.292,0 transparent V1: 2XSL(ST)CY-J 0,6/1KV EMV transparent
1004881 4 G 1,5 10,9 95,0 212,0 black V2: 2XSL(ST)CYK-J 0,6/1KV EMV-UV schwarz/black
1004882 4 G 2,5 12,0 150,0 270,0 black V2: 2XSL(ST)CYK-J 0,6/1KV EMV-UV schwarz/black
1004883 4 G 4 13,3 238,0 362,0 black V2: 2XSL(ST)CYK-J 0,6/1KV EMV-UV schwarz/black
1004884 4 G 6 15,2 320,0 582,0 black V2: 2XSL(ST)CYK-J 0,6/1KV EMV-UV schwarz/black
1004885 4 G 10 18,0 533,0 794,0 black V2: 2XSL(ST)CYK-J 0,6/1KV EMV-UV schwarz/black
1004886 4 G 16 21,4 789,0 1.188,0 black V2: 2XSL(ST)CYK-J 0,6/1KV EMV-UV schwarz/black
1004887 4 G 25 25,9 1.236,0 1.713,0 black V2: 2XSL(ST)CYK-J 0,6/1KV EMV-UV schwarz/black
1004888 4 G 35 29,1 1.662,0 2.402,0 black V2: 2XSL(ST)CYK-J 0,6/1KV EMV-UV schwarz/black
1004889 4 G 50 33,8 2.345,0 2.718,0 black V2: 2XSL(ST)CYK-J 0,6/1KV EMV-UV schwarz/black
1004890 4 G 70 38,7 3.196,0 3.636,0 black V2: 2XSL(ST)CYK-J 0,6/1KV EMV-UV schwarz/black
1004891 4 G 95 42,9 4.316,0 4.700,0 black V2: 2XSL(ST)CYK-J 0,6/1KV EMV-UV schwarz/black
1004892 4 G 120 49,9 5.435,0 5.699,0 black V2: 2XSL(ST)CYK-J 0,6/1KV EMV-UV schwarz/black
1004893 4 G 150 54,2 6.394,0 7.043,0 black V2: 2XSL(ST)CYK-J 0,6/1KV EMV-UV schwarz/black
1004894 4 G 185 60,5 7.639,0 8.384,0 black V2: 2XSL(ST)CYK-J 0,6/1KV EMV-UV schwarz/black
1004895 4 G 240 67,1 10.013,0 11.292,0 black V2: 2XSL(ST)CYK-J 0,6/1KV EMV-UV schwarz/black
1004879 3 X 1,5 + 3 G 0,25 10,2 91,0 144,0 black V3: 2XSL(ST)CYK-J 0,6/1KV EMV-3PLUS-UV schwarz/black
1000978 3 X 2,5 + 3 G 0,5 11,2 152,0 264,0 black V3: 2XSL(ST)CYK-J 0,6/1KV EMV-3PLUS-UV schwarz/black
1000980 3 X 4 + 3 G 0,75 12,3 224,0 333,0 black V3: 2XSL(ST)CYK-J 0,6/1KV EMV-3PLUS-UV schwarz/black
1000981 3 X 6 + 3 G 1 14,4 298,0 429,0 black V3: 2XSL(ST)CYK-J 0,6/1KV EMV-3PLUS-UV schwarz/black
1000983 3 X 10 + 3 G 1,5 16,8 491,0 615,0 black V3: 2XSL(ST)CYK-J 0,6/1KV EMV-3PLUS-UV schwarz/black
1000984 3 X 16 + 3 G 2,5 19,7 723,0 835,0 black V3: 2XSL(ST)CYK-J 0,6/1KV EMV-3PLUS-UV schwarz/black
1000990 3 X 25 + 3 G 4 24,0 1.138,0 1.404,0 black V3: 2XSL(ST)CYK-J 0,6/1KV EMV-3PLUS-UV schwarz/black
1000992 3 X 35 + 3 G 6 27,3 1.535,0 1.813,0 black V3: 2XSL(ST)CYK-J 0,6/1KV EMV-3PLUS-UV schwarz/black
1000993 3 X 50 + 3 G 10 30,9 2.208,0 2.501,0 black V3: 2XSL(ST)CYK-J 0,6/1KV EMV-3PLUS-UV schwarz/black
1000994 3 X 70 + 3 G 10 34,5 2.871,0 3.112,0 black V3: 2XSL(ST)CYK-J 0,6/1KV EMV-3PLUS-UV schwarz/black
1000995 3 X 95 + 3 G 16 38,9 3.953,0 4.492,0 black V3: 2XSL(ST)CYK-J 0,6/1KV EMV-3PLUS-UV schwarz/black
1000996 3 X 120 + 3 G 16 44,5 4.836,0 5.301,0 black V3: 2XSL(ST)CYK-J 0,6/1KV EMV-3PLUS-UV schwarz/black
1000997 3 X 150 + 3 G 25 48,9 5.421,0 6.097,0 black V3: 2XSL(ST)CYK-J 0,6/1KV EMV-3PLUS-UV schwarz/black
1001004 3 X 185 + 3 G 35 53,5 7.041,0 7.597,0 black V3: 2XSL(ST)CYK-J 0,6/1KV EMV-3PLUS-UV schwarz/black
1004880 3 X 240 + 3 G 50 61,0 9.148,0 9.875,0 black V3: 2XSL(ST)CYK-J 0,6/1KV EMV-3PLUS-UV schwarz/black
