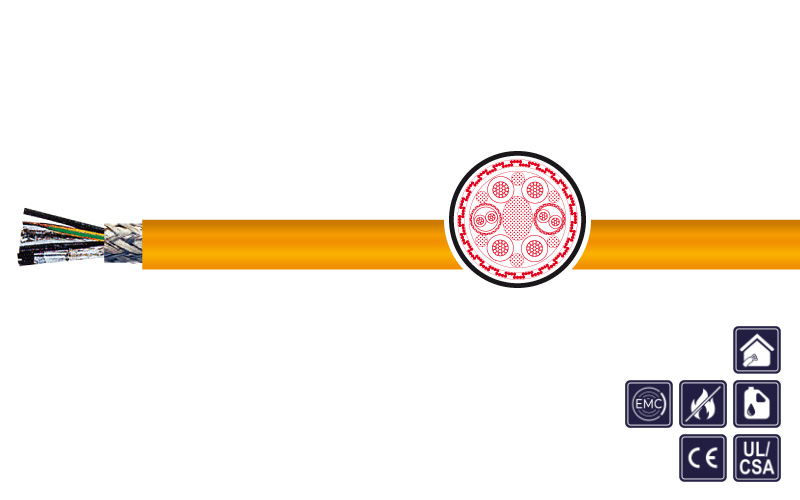

Use of cable

shielded, low capacity hybrid cable for drag chain applications in electrical drive technology, as a connection cable servo controler and motor, in assembly and insertion machines, especially for the wet area of transfer lines or machine tools.

Special features

  • for HIPERFACE DSL® motor-feedback-systems - HIghPERformance InterFACE Digital Servo Link
  • largely resistant to grease, coolant fluids and lubricants
  • resistant to oil acc. to DIN EN 60811-2-1
  • silicone-free (by productiuon)
  • space and weight saving
  • UV-resistant, halogen-free, low abrasion
  • with the 1.000 V UL approval, the parallel laying with other cables that are equally approved for 1.000 V, is permitted
  • conform to DESINA

Remarks

  • conform to RoHS
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
  • HIPERFACE DSL® is a registered trademark of SICK AG
Conductor material: Bare copper strand
Conductor class: Acc. to IEC 60228 cl. 6 col. 4
Core insulation: PELON®2
Core identification: BK with WH print U/L1/C/L+;V/L2;W/L3/D/L- & 1core GNYE; signalpair: WH,BU, controlpair (optional): BK with WH numerals 5+6
Shield: Signal pair/control pair: each pair shielded with tinned copper braid, optic. cover. appr. 85%
Overall stranding: Cores & elements stranded together
Shield3: Copper braid tinded, cover. appr. 85%
Outer sheath: PUR
Sheath colour: Orange, RAL 2003
Rated voltage: Power- & control cores: IEC: 0,6/1kV; UL/CSA: 1kV; signal pair: max. 300V
Testing voltage: Power- & control cores: 4 kV, signal pair: 1 kV
Conductor resistance: At +20 °C acc. to IEC 60228 cl. 6
Insulation resistance: At +20 °C ≥ 20 MΩ x km
Current-carrying-capacity: Acc. to DIN VDE
Characteristic impedance: Signal pair: approx. 100 Ohm
Transfer rate: 9.375 Mbaud until 100 m
Min. bending radius fixed: 5 x d
Min. bending radius moved: 7,5 x d < 10m TL | 10 x d ≥ 10m TL
Operat. temp. fixed min/max: -50°C / +80°C
Operat. temp. moved min/max: -40 °C / +80 °C
Burning behavior: Flame-retardant acc. to IEC 60332-1-2, FT1, VW-1
Approvals: UL/CSA - cURus 1.000 V, 80°C
Speed: Self-supporting: max. 5 m/s
Acceleration: Max. 10 m/s²

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
1504867 4 G 1,5 + (2 X AWG 22/19)C 11,6 116,0 194,0 orange V0: KAWEFLEX 52DSL SK-C-PUR UL/CSA 0,6/1KV
1504868 4 G 2,5 + (2 X AWG 22/19)C 12,8 168,0 253,0 orange V0: KAWEFLEX 52DSL SK-C-PUR UL/CSA 0,6/1KV
1504869 4 G 4 + (2 X AWG 22/19)C 14,3 235,0 332,0 orange V0: KAWEFLEX 52DSL SK-C-PUR UL/CSA 0,6/1KV
1505238 4 G 0,5 + (2 X 0,34)C + (2 X AWG 26/19)C 9,3 77,0 127,0 orange V0: KAWEFLEX 52DSL SK-C-PUR UL/CSA 0,6/1KV
1505239 4 G 0,75 + (2 X 0,34)C + (2 X AWG 26/19)C 9,9 98,0 142,0 orange V0: KAWEFLEX 52DSL SK-C-PUR UL/CSA 0,6/1KV
1505240 4 G 1 + (2 X 0,75)C + (2 X AWG 22/19)C 11,6 133,0 212,0 orange V0: KAWEFLEX 52DSL SK-C-PUR UL/CSA 0,6/1KV
1505241 4 G 1,5 + (2 X 0,75)C + (2 X AWG 24/19)C 11,8 152,0 230,0 orange V0: KAWEFLEX 52DSL SK-C-PUR UL/CSA 0,6/1KV
1505242 4 G 1,5 + (2 X 0,75)C + (2 X AWG 22/19)C 12,8 155,0 269,0 orange V0: KAWEFLEX 52DSL SK-C-PUR UL/CSA 0,6/1KV
1504870 4 G 1,5 + (2 X 1)C + (2 X AWG 22/19)C 13,2 166,0 250,0 orange V0: KAWEFLEX 52DSL SK-C-PUR UL/CSA 0,6/1KV
1505243 4 G 1,5 + (2 X 1,5)C + (2 X AWG 22/19)C 13,8 179,0 272,0 orange V0: KAWEFLEX 52DSL SK-C-PUR UL/CSA 0,6/1KV
1504871 4 G 2,5 + (2 X 1)C + (2 X AWG 22/19)C 14,5 211,0 285,0 orange V0: KAWEFLEX 52DSL SK-C-PUR UL/CSA 0,6/1KV
1505244 4 G 2,5 + (2 X 1,5)C + (2 X AWG 22/19)C 15,1 230,0 220,0 orange V0: KAWEFLEX 52DSL SK-C-PUR UL/CSA 0,6/1KV
1504872 4 G 4 + (2 X 1)C + (2 X AWG 22/19)C 16,2 274,0 390,0 orange V0: KAWEFLEX 52DSL SK-C-PUR UL/CSA 0,6/1KV
1505245 4 G 6 + (2 X 1)C + (2 X AWG 22/19)C 18,6 367,0 540,0 orange V0: KAWEFLEX 52DSL SK-C-PUR UL/CSA 0,6/1KV
1505246 4 G 10 + (2 X 1,5)C + (2 X AWG 22/19)C 21,6 573,0 760,0 orange V0: KAWEFLEX 52DSL SK-C-PUR UL/CSA 0,6/1KV
1505247 4 G 16 + (2 X 1,5)C + (2 X AWG 22/19)C 24,6 836,0 1.020,0 orange V0: KAWEFLEX 52DSL SK-C-PUR UL/CSA 0,6/1KV
