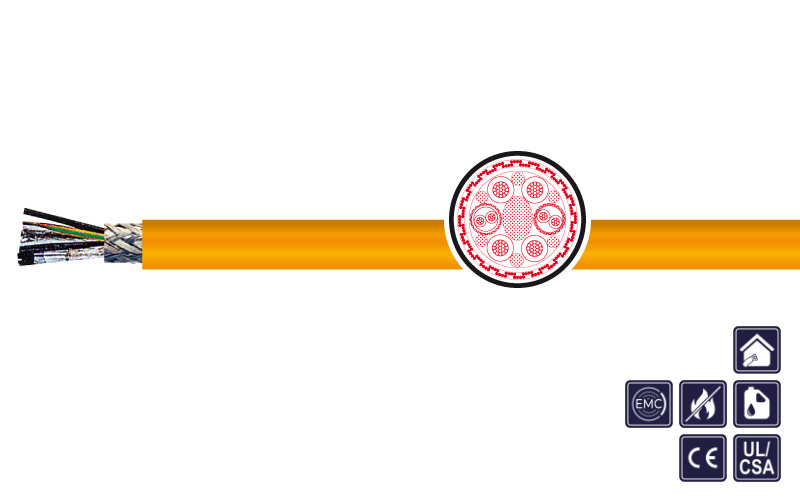

Use of cable

shielded, low capacity hybrid cable for applications with fixed or conditionally flexible installation in electrical drive technology, as a connection cable servo controler and motor, in assembly and insertion machines, especially for the wet area of transfer lines or machine tools.

Special features

  • for HIPERFACE DSL® motor-feedback-systems - HIghPERformance InterFACE Digital Servo Link
  • largely resistant to grease, coolant fluids and lubricants
  • resistant to oil acc. to DIN EN 60811-2-1 (only mineral oil)
  • silicone-free (by productiuon)
  • space and weight saving
  • with the 1.000 V UL approval, the parallel laying with other cables that are equally approved for 1.000 V, is permitted
  • conform to DESINA

Remarks

  • conform to RoHS
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • We are pleased to produce special versions, other dimensions, core and jacket colours on request
  • HIPERFACE DSL® is a registered trademark of SICK AG
Conductor material: Bare copper strand
Conductor class: Acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5
Core insulation: PELON®2
Core identification: BK with WH print U/L1/C/L+;V/L2;W/L3/D/L- & 1core GNYE; signalpair: WH,BU, controlpair (optional): BK w. WH numerals 5+6
Shield: Signal pair/control pair: each pair shielded with tinned copper braid, optic. cover. appr. 85%
Overall stranding: Cores & elements stranded together
Shield3: Copper braid tinned, coverage approx. 85%
Outer sheath: PVC
Sheath colour: Orange, RAL 2003
Rated voltage: Power- & control cores: IEC: 0,6/1kV; UL/CSA: 1kV; signal pair: max. 300V
Testing voltage: Power- & control cores: 4 kV, signal pair: 1 kV
Conductor resistance: At +20 °C acc. to IEC 60228 cl. 5
Insulation resistance: At +20 °C ≥ 20 MΩ x km
Current-carrying-capacity: Acc. to DIN VDE
Characteristic impedance: Signal pair: approx. 100 Ohm
Transfer rate: 9.375 Mbaud until 100 m
Min. bending radius fixed: 5 x d
Min. bending radius moved: 15 x d
Operat. temp. fixed min/max: -40 °C / +80 °C
Operat. temp. moved min/max: -5 °C / +80 °C
Burning behavior: Flame-retardant acc. to IEC 60332-1-2, FT1, VW-1
Approvals: UL/CSA - cURus 1.000 V, 80°C

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
1504861 4 G 1,5 + (2 X AWG 22/7)C 11,6 116,0 198,0 orange V0: KAWEFLEX 52DSL C-PVC UL/CSA 0,6/1KV
1504862 4 G 2,5 + (2 X AW G22/7)C 12,8 168,0 269,0 orange V0: KAWEFLEX 52DSL C-PVC UL/CSA 0,6/1KV
1504863 4 G 4 + (2 X AWG 22/7)C 14,3 235,0 343,0 orange V0: KAWEFLEX 52DSL C-PVC UL/CSA 0,6/1KV
1505231 4 G 0,5 + (2 X 0,34)C + (2 X AWG 26/7)C 9,4 77,0 123,0 orange V0: KAWEFLEX 52DSL C-PVC UL/CSA 0,6/1KV
1505232 4 G 0,75 + (2 X 0,34)C + (2 X AWG 26/7)C 9,9 97,0 138,0 orange V0: KAWEFLEX 52DSL C-PVC UL/CSA 0,6/1KV
1505233 4 G 1 + (2 X 0,75)C + (2 X AWG 22/7)C 11,6 129,0 208,0 orange V0: KAWEFLEX 52DSL C-PVC UL/CSA 0,6/1KV
1505234 4 G 1,5 + (2 X 0,75)C + (2 X AWG 22/7)C 12,8 152,0 248,0 orange V0: KAWEFLEX 52DSL C-PVC UL/CSA 0,6/1KV
1504864 4 G 1,5 + (2 X 1)C + (2 X AWG 22/7)C 13,2 164,0 256,0 orange V0: KAWEFLEX 52DSL C-PVC UL/CSA 0,6/1KV
1504865 4 G 2,5 + (2 X 1)C + (2 X AWG 22/7)C 14,5 208,0 313,0 orange V0: KAWEFLEX 52DSL C-PVC UL/CSA 0,6/1KV
1504866 4 G 4 + (2 X 1)C + (2 X AWG 22/7)C 16,2 276,0 407,0 orange V0: KAWEFLEX 52DSL C-PVC UL/CSA 0,6/1KV
1505235 4 G 6 + (2 X 1)C + (2 X AWG 22/7)C 18,6 364,0 538,0 orange V0: KAWEFLEX 52DSL C-PVC UL/CSA 0,6/1KV
1505236 4 G 10 + (2 X 1,5)C + (2 X AWG 22/7)C 21,6 571,0 752,0 orange V0: KAWEFLEX 52DSL C-PVC UL/CSA 0,6/1KV
1505237 4 G 16 + (2 X 1,5)C + (2 X AWG 22/7)C 24,6 833,0 1.005,0 orange V0: KAWEFLEX 52DSL C-PVC UL/CSA 0,6/1KV
