Use of cable

For use in highly dynamic applications in energy supply chains, with high electrical and mechanical requirements for controlling of various drive components on DRIVE-CLiQ ® interfaces and transmitting digital signals, with a transfer rate up to 100Mbit/s. Suitable for use in dry and humid rooms. Outdoor use only with UV-protection.

Special features

  • halogen-free, flame retardant
  • oil resistant acc. to IEC 60811-2-1
  • free from lacquer damaging substances and silicone (during production)
  • approbation UL/CSA, 300V, 80°C
  • due to 300V UL/CSA approval parallel laying with other 300V cables is permitted
  • conform to DESINA
  • HF-characteristics Cat.5e acc. to IEC 61156-6

Remarks

  • confom to RoHS and WEEE
  • alternatively as c(UL)us Listing Type CMX acc. UL444 available
  • further types upon request
  • application parameters s. app. - KAWEFLEX® ServoDriveQ...application parameters -
  • DRIVE-CLiQ® is registered Trademark of Siemens AG

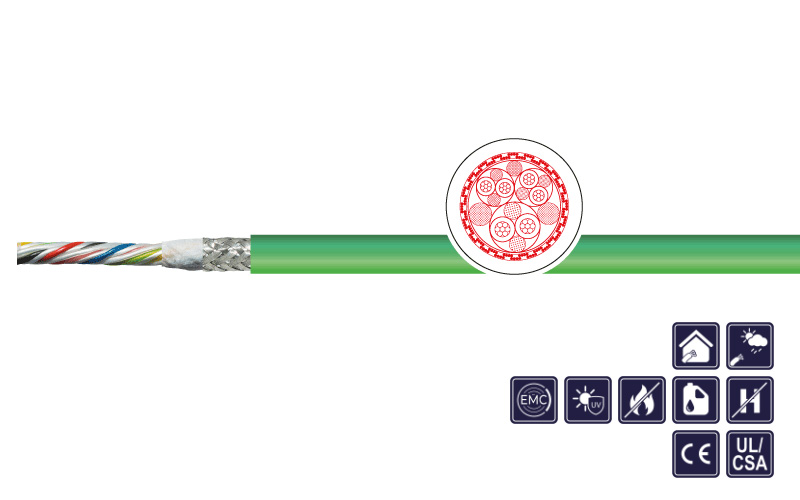

Conductor material: Bare copper (AWG24), tinned copper (AWG22)
Conductor class: 19-wires
Core insulation: Polyolefin
Core identification: Pairs AWG24 GN/YE, PK/BU pair AWG22 RD/BK
Stranding: Cores and fillers twisted to pairs
Overall stranding: 3 elements stranded with fillers
Shield3: Alu-clad PET foil, metalside with contact to braid cover.100%, tinned copper braid, opt.cover. ≥85%
Outer sheath: PUR
Sheath colour: Green, RAL 6018
Outer diameter: Ca. 6,9 mm
Rated voltage: 300 V
Testing voltage: 500 V
Conductor resistance: AWG24 max. 95 Ω/km , AWG22 max. 55 Ω/km
Insulation resistance: At 20 °C ≥ 1 GΩ/km
Capacity: Data pairs: nom. 50 nF/km at 800 Hz
Characteristic impedance: 100 ± 15 Ω from 1 to 100 MHz
Transfer rate: 100 Mbit/s
Min. bending radius fixed: 35,0 mm
Min. bending radius moved: 75,0 mm
Operat. temp. fixed min/max: - 40 °C / +80 °C
Operat. temp. moved min/max: - 20 °C / +60 °C
Burning behavior: Acc. to IEC60332-1, UL 1581 §1090, §1100 (FT2)
Approvals: UL/CSA - cURus 300 V, 80°C

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
2001493 2 X 2 X 0,20 (AWG 24) + 1 X 2 X 0,38 (AWG 22) 6,9 40,0 67,0 green V0: KAWEFLEX ServoDriveQ Plus SK-C-PUR UL/CSA
