Use of cable

For flexible use in applications with high electrical requirements for controlling of various drive components on DRIVE-CLiQ® interfaces and digital signals, with a transfer rate of up to 100Mbit/s. Suitable for use in dry and humid rooms. Outdoor use only with UV-protecftion.

Special features

  • flame retardant
  • oil resistant acc. to IEC 60811-404
  • free from lacquer damaging substances and silicone (during production)
  • conform to DESINA
  • HF-characteristics Cat.5e acc. to IEC 61156-6
  • due to 300V UL/CSA approval parallel laying with other 300V cables is permitted

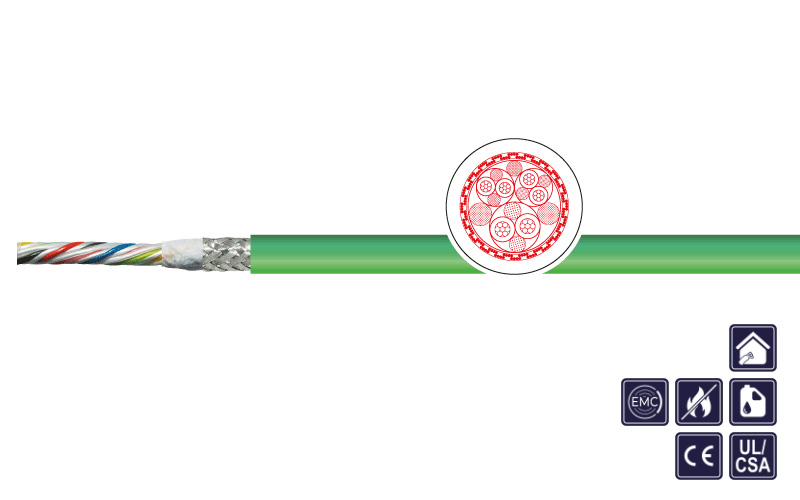

  • structure: picture exemplary

Remarks

  • confom to RoHS and WEEE
  • alternatively as c(UL)us Listing Type CMG acc. UL444 available
  • further types upon request
  • application parameters s. appendix - KAWEFLEX® ServoDriveQ.. .application parameters
  • DRIVE-CLiQ® is registered Trademark of Siemens AG
Conductor material: Bare copper (AWG24), tinned copper (AWG22)
Conductor class: 7-wires (AWG24), 19-wires (AWG22)
Core insulation: AWG24 foamed Polyolefine, AWG22 Polyolefine
Core identification: Pairs AWG24 GN/YE, PK/BU pair AWG22 RD/BK
Stranding: Cores twisted to pairs
Overall stranding: 3 elements stranded with fillers
Shield3: Alu-clad PET foil, metalside with contact to braid cover.100%, tinned copper braid, opt.cover.≥85%
Outer sheath: PVC
Sheath colour: Green, RAL 6018
Outer diameter: Ca. 6,95 mm
Rated voltage: Max. 300 V
Testing voltage: 500 V
Conductor resistance: AWG24 max. 90 Ω/km , AWG22 max. 55 Ω/km
Insulation resistance: At 20 °C ≥ 1 GΩ/km
Capacity: Data pairs: nom. 50 nF/km at 800 Hz
Characteristic impedance: 100 ± 15 Ω from 1 to 100 MHz
Transfer rate: 100 Mbit/s
Min. bending radius fixed: 35,0 mm
Min. bending radius moved: 125,0 mm
Operat. temp. fixed min/max: - 20 °C / +80 °C
Operat. temp. moved min/max: - 0 °C / +60 °C
Burning behavior: Acc. to IEC60332-1-2, UL VW-1 resp. CSA FT1
Approvals: UL/CSA - cURus 300 V, 80°C, up from production date Jan. 2016
Copper weight: 41,0 kg/km
Weight: Ca. 68,0 kg/km

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
2001499 2 X 2 X 0,22 (AWG 24) + 1 X 2 X 0,38 (AWG 22) 6,9 41,0 68,0 green V0: KAWEFLEX ServoDriveQ FLEX-C-PVC UL/CSA
