Use of cable

For transmitting digital signals for various drive components to DRIVE-CLiQ® interfaces, with a transfer rate up to 100Mbit/s. Suitable for use in dry and humid rooms. Outdoor use only with UV-protecftion.

Special features

  • flame retardant
  • oil resistant acc. to IEC 60811-2-1
  • free from lacquer damaging substances and silicone (during production)
  • HF-characteristics Cat.5e acc. to IEC 61156-6
  • see appendix - KAWEFLEX® ServoDriveQ ... application parameters -
  • due to 300V UL/CSA approval parallel laying with other 300V cables is permitted
  • NEW: up from production date Jan. 2016, approbation UL/CSA, 300 V, 80 °C (OLD: 30 V, 80 °C)

Remarks

  • confom to RoHS and WEEE
  • alternatively as c(UL)us Listing Type CMG acc. UL444 available
  • further types upon request
  • DRIVE-CLiQ® is registered Trademark of Siemens AG
Conductor material: Bare copper
Conductor class: 7-wires
Core insulation: Foam Polyethylen
Core identification: GN/YE, PK/BU
Stranding: Cores and fillers twisted to pairs
Overall stranding: 2 pairs stranded with fillers
Shield3: Alu-clad PET foil, metalside with contact to braid, cover.100%,tinned copper braid, opt.cover. ≥85%
Outer sheath: PVC
Sheath colour: Grey, RAL 7032
Outer diameter: Ca. 6,85 mm
Rated voltage: Max. 300 V
Testing voltage: 500 V
Conductor resistance: AWG24 max. 87,6 Ω/km
Insulation resistance: At 20 °C ≥ 1 GΩ/km
Capacity: Nom. 50 nF/km at 800 Hz
Characteristic impedance: 100 ± 15 Ω from 1 to 100 MHz
Transfer rate: 100 Mbit/s
Min. bending radius fixed: 7,5 x d
Min. bending radius moved: 15 x d
Operat. temp. fixed min/max: - 20 °C / +80 °C
Burning behavior: Acc. to IEC60332-1-2, UL VW-1 resp. CSA FT1
Approvals: UL/CSA - cURus 300 V, 80°C, up from production date Jan. 2016
Copper weight: 28,0 kg/km
Weight: Ca. 60,0 kg/km

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant

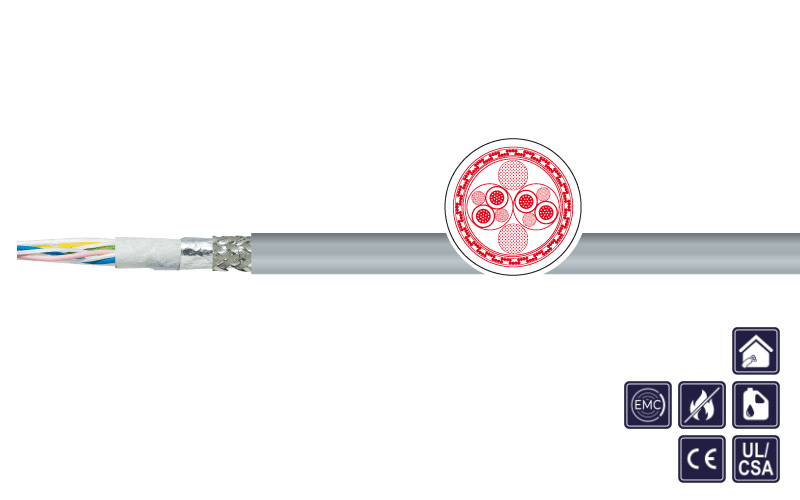

2001494 2 X 2 X 0,22 (AWG 24) 6,8 28,0 60,0 grey V0: KAWEFLEX ServoDriveQ C-PVC UL/CSA
