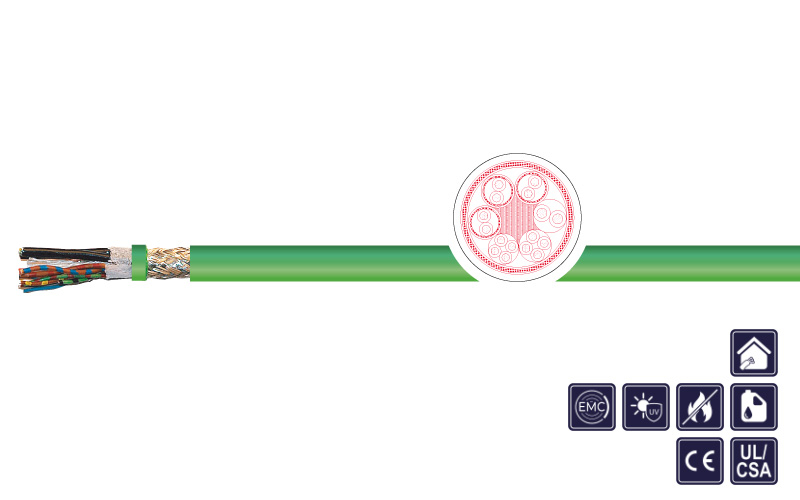

Use of cable

as shielded, low capacity feedback, encoder, resolver, spedo sensor, signal & system cables for EMC compatible connecting in maschine and plant enginering, as well as in drive and control technology, for normal electrical and light to medium mechanical requirements.

Special features

  • DESINA-conform (jacket colour green RAL 6018)
  • cURus approved 300V, 80°C
  • flame-retardant, IEC 60332-1-2, F1, VW-1
  • largely resistant to, grease, coolant fluids and lubricants
  • resistant to oil, IEC 60811-404, (VDE 0473-811-404, only mineral oil)
  • low adhesion, silicone-free, space- and weight-saving

Remarks

  • conform to RoHS
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • optimal cost-value ratio
  • 2-pairs dimensions stranded as star quad
Conductor material: Bare copper strand
Conductor class: Acc. to DIN VDE0295 cl.5 resp. IEC60228 cl.5
Core insulation: PELON®2
Core identification: Acc. to system specification (on request)
Stranding: Cores twisted to pairs or in layers
Shield: Elements: D: tinned spiral copper shield, resp. C: tinned copper braid, opt. coverage appr. 85 %
Element sheath material: TPE - black (if mentioned 12Y)
Overall stranding: Elements stranded together
Shield3: Copper braids, tinned, opt. coverage appr. 85 %
Outer sheath: PVC
Sheath colour: GN - RAL 6018 (DESINA), OR - RAL 2003 or BK - RAL 9005
Rated voltage: 300 V, no high-voltage purpose
Testing voltage: 500 V
Conductor resistance: Acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5
Insulation resistance: Min. 20 MΩ x km
Min. bending radius fixed: 5 x d
Min. bending radius moved: 15 x d
Operat. temp. fixed min/max: - 30 °C / +80 °C
Operat. temp. moved min/max: - 5 °C / +80 °C
Burning behavior: Flame-retardent acc. to IEC 60332-1-2, FT1, VW-1
Approvals: UL/CSA: cURus 300V, 80°C
Speed: Self supporting - max. 0,5 m/s
Acceleration: Max. 2 m/s²

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
1505189 (4 X 2 X 0,34 +4X0,5)C 8,9 77,0 136,0 green V1: KAWEFLEX 5468 C-PVC UL/CSA - Siemens Standard MC 500
1505250 (3 X (2 X 0,14)D12Y +2X(0,5)D12Y)C 8,5 69,0 115,0 green V1: KAWEFLEX 5468 C-PVC UL/CSA - Siemens Standard MC 500
1505190 (3 X (2 X 0,14)D12Y +4X0,14 +2X0,5)C 8,9 66,0 125,0 green V1: KAWEFLEX 5468 C-PVC UL/CSA - Siemens Standard MC 500
1505191 (3X(2X0,14)D12Y +4X0,14 +4X0,25 +2X0,5)C 9,4 86,0 147,0 green V1: KAWEFLEX 5468 C-PVC UL/CSA - Siemens Standard MC 500
1505192 (4 X 2 X 0,25 + 2 X 0,5)C 8,4 61,0 113,0 orange V2: KAWEFLEX 5468 C-PVC UL/CSA - Bosch Rexroth Standard
1505193 (4 X 2 X 0,25 + 2 X 1)C 8,8 66,0 127,0 orange V2: KAWEFLEX 5468 C-PVC UL/CSA - Bosch Rexroth Standard
1505194 (4 X 1 + 4 X 2 X 0,14 + (4 X 0,14)D)C 9,7 90,0 155,0 orange V2: KAWEFLEX 5468 C-PVC UL/CSA - Bosch Rexroth Standard
1505195 3 X (2 X 0,14)C + (2 X 0,5)C 9,3 49,0 135,0 black V3: KAWEFLEX 5468 C-PVC UL/CSA - Lenze Standard
1505196 4 X (2 X 0,14)C + (2 X 1)C 11,0 73,0 180,0 black V3: KAWEFLEX 5468 C-PVC UL/CSA - Lenze Standard
1505197 3 X (2 X 0,14)C + (3 X 0,14)C 9,2 43,0 120,0 black V3: KAWEFLEX 5468 C-PVC UL/CSA - Lenze Standard
1505198 (5 X 2 X 0,25)C 7,3 47,0 91,0 green V4: KAWEFLEX 5468 C-PVC UL/CSA - SEW Standard
1505199 (6 X 2 X 0,25)C 8,6 52,0 116,0 green V4: KAWEFLEX 5468 C-PVC UL/CSA - SEW Standard
