Use of cable

Robitic Measuring & System cable (MeSys) for complex, highly flexible motion sequences in industrial applications (e.g. power chains, gantry robots, pick and place units, conveyor systems, machine tools, automatic. Manufacturing systems etc.).

> feedback - encoder - resolver - speedo sensor - signal - system <


For harsh environments (indoor & outdoor) with highest mech. stress, at the same time bending and torsion.

Special features

  • low adhesion
  • resistant to hydrolisis, microbes, cooling fluids, grease and lubricants
  • resistant to oil acc. to IEC 60811-2-1
  • UV-resistant
  • halogen-free acc. to IEC 60754-1
  • EMC compliant shielding (C-PUR)
  • due to UL/CSA approval up to 300 V parallel laying with other cables with identical current voltage is permitted

Remarks

  • conform to RoHS
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • LABS-/silicone-free (during production)
  • special versions, other dimensions, core and jacket colours according to your specifications on request

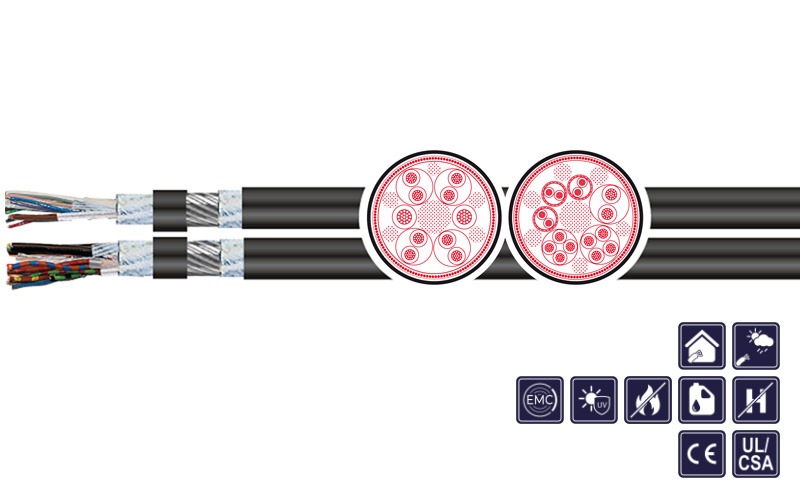

Conductor material: Bare copper strand, 0,38 mm²: tinned
Conductor class: Super fine wire acc. to IEC 60228 cl. 6 pt. 4
Core insulation: TPE
Core identification: Acc. to system specification (on request)
Stranding: Cores twisted to pairs or in layers, each element with sliding tape
Shield: C-elements: extremely torsion resistant spiral shield of tinned copper wires under sliding tape
Overall stranding: Elements stranded together
Shield3: Extremely torsion resistant spiral shield of tinned copper wires over sliding tape
Outer sheath: PUR
Sheath colour: Black (RAL 9005) or green (RAL 6018)
Rated voltage: 300 V
Testing voltage: Min. 2 kV
Current-carrying-capacity: Acc. to DIN VDE
Min. bending radius fixed: 4 x d
Min. bending radius moved: 7,5 x d < 10 m VW | 10 x d ≥ 10 m VW | Torsion: 10 x d
Operat. temp. fixed min/max: -50 °C / +80 °C
Operat. temp. moved min/max: -30 °C / +80 °C, Torsion: -25 °C / +80 °C
Burning behavior: Flame-retardant acc. to IEC 60332-1-2, VW-1, FT1
Torsion: +/- 180 °/m
Approvals: UL/CSA: cURus - 300V, 80°C
Speed: Self-supporting: max. 10 m/s, gliding: max. 5 m/s | Torsion: max.180 °/s

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
1505341 (3 X (2 X 0,14)C + 4 X 0,14 + 2 X 0,5)C 10,2 64,0 120,0 black V1: KAWEFLEX KINEMATICS 3D-C-PUR MeSys (TP) UL/CSA
1505342 (3 X (2 X 0,14)C + 2 X (0,5)C)C 10,5 68,0 118,0 black V1: KAWEFLEX KINEMATICS 3D-C-PUR MeSys (TP) UL/CSA
1505343 (3 X (2 X 0,14)C + 4 X 0,14 + 4 X 0,25 + 2 X 0,5)C 10,9 79,0 154,0 black V1: KAWEFLEX KINEMATICS 3D-C-PUR MeSys (TP) UL/CSA
1505344 (4 X 2 X 0,25 + 2 X 0,5)C 8,2 52,0 95,0 black V1: KAWEFLEX KINEMATICS 3D-C-PUR MeSys (TP) UL/CSA
1505345 (4 X 2 X 0,14 + 4 X 0,5)C 8,7 53,0 92,0 black V1: KAWEFLEX KINEMATICS 3D-C-PUR MeSys (TP) UL/CSA
1505346 (2 X 2 X 0,20 + 1 X 2 X 0,38)C 7,5 48,0 73,0 green V1: KAWEFLEX KINEMATICS 3D-C-PUR MeSys (TP) UL/CSA
