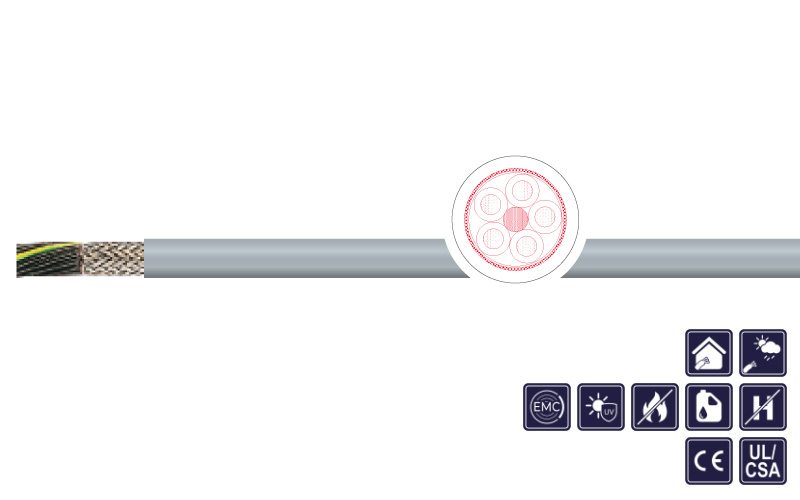

KAWEFLEX® 6230 SK-C-PUR UL/CSA
ID: 04.09.30
for high requirements, 0,6/1kV, shielded, halogen-free UL/CSA
Use of cable
as highly flexible, low capacity, shielded power and control cable for EMC-compliant connecting at high electrical and mechanical requirements in drag chains and motion drive systems in machine and plant engineering.
Special features
- UL/CSA approved
- low adhesion, silicone-free
- UV-resistant
- halogen free, flame-retardant acc. to IEC 60332-1-2, FT1
- oilresistant acc. to DIN EN 60811-404
- largely resistant to grease, coolant fluids and lubricants
- recommended for EMC-compatible applications
- due to 1.000 V UL/CSA approval parallel laying with other 1.000 V cables is permitted
Remarks
- conform to RoHS and 2014/35/EU-Guideline ("Low-Voltage Directive") CE
- cables for torsional stress see chapter 4.25
- NEW: with reduced outer diameters, for smaler design, lower bending radii and lower weight; up from production date January 2020
| Conductor material: | Bare copper strand |
|---|---|
| Conductor class: | Acc. to DIN VDE 0295 class 6 pt. 4 resp. IEC 60228 cl. 6 pt. 4 |
| Core insulation: | PELON®2 |
| Core identification: | Acc. to DIN VDE 0293 black wires with white numerals, 1 x GNYE |
| Overall stranding: | Cores stranded in layers |
| Shield3: | Copper braid tinned, coverage approx. 85% |
| Outer sheath: | PUR |
| Sheath colour: | Grey RAL 7001 |
| Rated voltage: | Acc. to IEC: 600/1000 V; acc. to UL: 1000 V |
| Testing voltage: | Core/core: 4 kV, core/shield: 2 kV |
| Conductor resistance: | At +20 °C acc. to DIN VDE 0295 cl. 6 resp. IEC 60228 cl. 6 |
| Insulation resistance: | At +20 °C ≥ 20 MΩ x km |
| Current-carrying-capacity: | Acc. to DIN VDE |
| Min. bending radius fixed: | 4 x d |
| Min. bending radius moved: | 7,5 x d < 10 m TL | 10 x d ≥ 10 m TL |
| Operat. temp. fixed min/max: | -50 °C / +80 °C |
| Operat. temp. moved min/max: | -40 °C / +80 °C |
| Halogen free: | Halogen-free acc. to IEC 60754-1 |
| Burning behavior: | Flame-retardant acc. to IEC 60332-1-2, FT1 |
| Approvals: | UL/CSA - cURus 1.000V, 80°C |
| Speed: | Self-supporting: max. 10 m/s, gliding: max. 5 m/s |
| Acceleration: | Max. 20 m/s² |
Table of items
|
Product No.
|
Dimension
[n x mm²] |
Outer-Ø
[mm] |
Cu-Index
[kg/km] |
Weight
[kg/1.000] |
Sheath colour
|
Variant
|
|---|---|---|---|---|---|---|
| 1504811 | 2 X 0,5 (AWG 21) | 5,6 | 27,0 | 45,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504812 | 3 G 0,5 (AWG 21) | 6,0 | 32,0 | 52,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504813 | 4 G 0,5 (AWG 21) | 6,4 | 43,0 | 65,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504814 | 5 G 0,5 (AWG 21) | 7,0 | 47,0 | 72,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504815 | 7 G 0,5 (AWG 21) | 8,4 | 62,0 | 99,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504816 | 12 G 0,5 (AWG 21) | 9,8 | 92,0 | 140,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504817 | 18 G 0,5 (AWG 21) | 11,8 | 132,0 | 204,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504818 | 25 G 0,5 (AWG 21) | 14,0 | 191,0 | 286,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504819 | 36 G 0,5 (AWG 21) | 14,7 | 219,0 | 370,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504820 | 2 X 0,75 (AWG 19) | 6,0 | 32,0 | 52,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504821 | 3 G 0,75 (AWG 19) | 6,4 | 45,0 | 66,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504822 | 4 G 0,75 (AWG 19) | 6,9 | 52,0 | 77,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504823 | 5 G 0,75 (AWG 19) | 7,8 | 65,0 | 96,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504824 | 7 G 0,75 (AWG 19) | 9,3 | 85,0 | 129,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504825 | 12 G 0,75 (AWG 19) | 10,8 | 126,0 | 185,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504826 | 18 G 0,75 (AWG 19) | 12,8 | 181,0 | 261,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504827 | 25 G 0,75 (AWG 19) | 15,4 | 261,0 | 375,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504828 | 36 G 0,75 (AWG 19) | 17,6 | 315,0 | 496,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504829 | 42 G 0,75 (AWG 19) | 19,1 | 363,0 | 579,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504830 | 2 X 1 (AWG 18) | 6,5 | 43,0 | 65,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504831 | 3 G 1 (AWG 18) | 7,0 | 52,0 | 75,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504832 | 4 G 1 (AWG 18) | 7,7 | 67,0 | 97,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504833 | 5 G 1 (AWG 18) | 8,5 | 77,0 | 111,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504834 | 7 G 1 (AWG 18) | 10,1 | 102,0 | 150,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504835 | 12 G 1 (AWG 18) | 12,1 | 161,0 | 229,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504836 | 18 G 1 (AWG 18) | 14,7 | 244,0 | 343,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504837 | 25 G 1 (AWG 18) | 17,2 | 331,0 | 462,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504838 | 2 X 1,5 (AWG 16) | 7,1 | 52,0 | 76,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1505600 | 3 X 1,5 (AWG 16) | 7,8 | 72,0 | 100,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504839 | 3 G 1,5 (AWG 16) | 7,8 | 72,0 | 100,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504840 | 4 G 1,5 (AWG 16) | 8,4 | 86,0 | 121,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504841 | 5 G 1,5 (AWG 16) | 9,5 | 106,0 | 148,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504842 | 7 G 1,5 (AWG 16) | 11,5 | 141,0 | 199,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504843 | 12 G 1,5 (AWG 16) | 13,5 | 244,0 | 323,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504844 | 18 G 1,5 (AWG 16) | 16,5 | 340,0 | 455,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504845 | 25 G 1,5 (AWG 16) | 19,5 | 461,0 | 620,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504846 | 36 G 1,5 (AWG 16) | 22,2 | 588,0 | 844,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504847 | 42 G 1,5 (AWG 16) | 24,1 | 679,0 | 978,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504848 | 3 G 2,5 (AWG 14) | 9,3 | 106,0 | 144,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504849 | 4 G 2,5 (AWG 14) | 10,0 | 131,0 | 177,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504850 | 5 G 2,5 (AWG 14) | 11,4 | 160,0 | 214,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504851 | 7 G 2,5 (AWG 14) | 13,9 | 219,0 | 301,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504852 | 12 G 2,5 (AWG 14) | 16,5 | 339,0 | 479,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504853 | 18 G 2,5 (AWG 14) | 19,7 | 518,0 | 685,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504854 | 25 G 2,5 (AWG 14) | 23,5 | 674,0 | 981,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504855 | 4 G 4 (AWG 12) | 12,0 | 199,0 | 261,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504856 | 5 G 4 (AWG 12) | 13,8 | 244,0 | 316,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504857 | 4 G 6 (AWG 10) | 14,4 | 301,0 | 384,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504858 | 5 G 6 (AWG 10) | 16,4 | 369,0 | 471,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504859 | 4 G 10 (AWG 8) | 17,3 | 475,0 | 585,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
| 1504860 | 4 G 16 (AWG 6) | 21,3 | 725,0 | 889,0 | grey | V0: KAWEFLEX 6230 SK-C-PUR UL/CSA |
