Use of cable

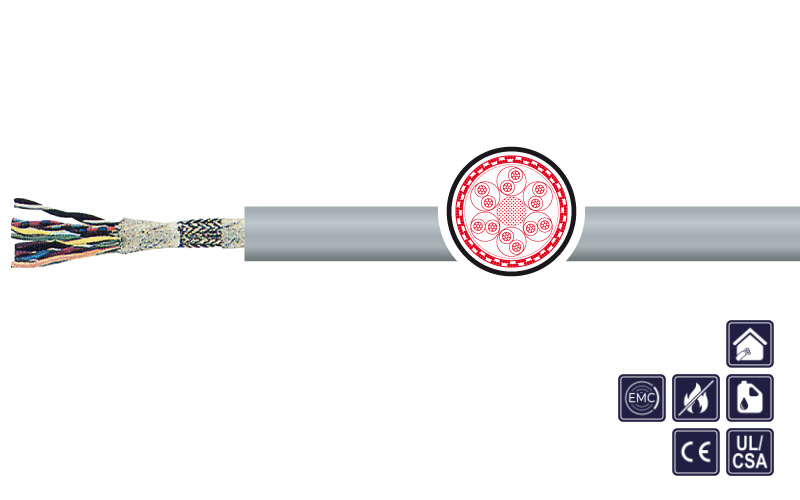

twisted pair shielded electronic cable for data and signal transmission for normal requirements in drag chains, in electrical motion facilities, machine tools and handling automats.

Special features

  • UL/CSA approved
  • low adhesion, silicone-free
  • flame-retardant acc. to IEC 60332-1-2, FT1, VW-1
  • oilresistant acc. to DIN EN 60811-404 (only mineral oil)
  • largely resistant to grease, coolant fluids and lubricants
  • recommended for EMC-compatible applications

Remarks

  • conform to RoHS
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Conductor material: Bare copper strand
Conductor class: Super fine wires acc.to VDE 0295 cl. 6 pt. 4 resp. IEC60228 cl. 6 pt. 4
Core insulation: PELON®2
Core identification: Coloured acc. to DIN 47100
Overall stranding: Cores twisted to pairs, pairs stranded in layers
Shield3: Copper braid tinned, coverage approx. 85% ± 5%
Outer sheath: PVC
Sheath colour: Grey RAL 7001
Rated voltage: Acc. to VDE: 300/300V; acc. to UL: 300 V
Testing voltage: Core/core: 1.500 V; core/shield: 500 V
Conductor resistance: At +20 °C acc. to DIN VDE 0295 cl.6 resp. IEC60228 cl.6
Insulation resistance: At +20 °C ≥ 500 MΩ x km
Current-carrying-capacity: Acc. to DIN VDE
Capacity: Core/core: approx. 65 pF/m
Inductivity: Approx. 0,6 mH/km
Min. bending radius fixed: 5 x d
Min. bending radius moved: 7,5 x d < 10 m TL; 10 x d ≥ 10 m TL
Operat. temp. fixed min/max: -40 °C / +80 °C
Operat. temp. moved min/max: -5 °C / +80 °C
Burning behavior: Flame-retardant acc. to IEC 60332-1-2, FT1, VW1
Resistant to oil: Acc. to DIN EN 60811-2-1 (only mineral oil)
Approvals: UL/CSA - cURus 300V, 80°C
Speed: Self-supporting: max. 5 m/s, gliding: max. 2,5 m/s
Acceleration: Max. 10 m/s²

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
1504982 2 X 2 X 0,25 (AWG 24) 6,3 26,0 41,0 grey V0: KAWEFLEX 6510 SK-TP-C-PVC UL/CSA
1504983 3 X 2 X 0,25 (AWG 24) 6,6 32,0 49,0 grey V0: KAWEFLEX 6510 SK-TP-C-PVC UL/CSA
1504984 4 X 2 X 0,25 (AWG 24) 7,2 41,0 59,0 grey V0: KAWEFLEX 6510 SK-TP-C-PVC UL/CSA
1504985 6 X 2 X 0,25 (AWG 24) 8,6 53,0 81,0 grey V0: KAWEFLEX 6510 SK-TP-C-PVC UL/CSA
1504986 8 X 2 X 0,25 (AWG 24) 10,3 67,0 99,0 grey V0: KAWEFLEX 6510 SK-TP-C-PVC UL/CSA
1504987 10 X 2 X 0,25 (AWG 24) 11,7 87,0 122,0 grey V0: KAWEFLEX 6510 SK-TP-C-PVC UL/CSA
1504988 14 X 2 X 0,25 (AWG 24) 11,9 110,0 151,0 grey V0: KAWEFLEX 6510 SK-TP-C-PVC UL/CSA
1504989 2 X 2 X 0,34 (AWG 22) 6,7 31,0 57,0 grey V0: KAWEFLEX 6510 SK-TP-C-PVC UL/CSA
1504990 3 X 2 X 0,34 (AWG 22) 7,0 41,0 64,0 grey V0: KAWEFLEX 6510 SK-TP-C-PVC UL/CSA
1504991 4 X 2 X 0,34 (AWG 22) 7,7 50,0 73,0 grey V0: KAWEFLEX 6510 SK-TP-C-PVC UL/CSA
1504992 6 X 2 X 0,34 (AWG 22) 9,3 77,0 110,0 grey V0: KAWEFLEX 6510 SK-TP-C-PVC UL/CSA
1504993 8 X 2 X 0,34 (AWG 22) 10,9 96,0 129,0 grey V0: KAWEFLEX 6510 SK-TP-C-PVC UL/CSA
1504994 10 X 2 X 0,34 (AWG 22) 12,5 113,0 158,0 grey V0: KAWEFLEX 6510 SK-TP-C-PVC UL/CSA
1504995 2 X 2 X 0,5 (AWG 21) 7,3 42,0 58,0 grey V0: KAWEFLEX 6510 SK-TP-C-PVC UL/CSA
1504996 3 X 2 X 0,5 (AWG 21) 7,7 55,0 72,0 grey V0: KAWEFLEX 6510 SK-TP-C-PVC UL/CSA
1504997 4 X 2 X 0,5 (AWG 21) 8,6 67,0 88,0 grey V0: KAWEFLEX 6510 SK-TP-C-PVC UL/CSA
1504998 6 X 2 X 0,5 (AWG 21) 10,3 99,0 119,0 grey V0: KAWEFLEX 6510 SK-TP-C-PVC UL/CSA
1504999 8 X 2 X 0,5 (AWG 21) 12,2 127,0 161,0 grey V0: KAWEFLEX 6510 SK-TP-C-PVC UL/CSA
1505000 10 X 2 X 0,5 (AWG 21) 14,2 152,0 190,0 grey V0: KAWEFLEX 6510 SK-TP-C-PVC UL/CSA
1505001 14 X 2 X 0,5 (AWG 21) 14,4 197,0 249,0 grey V0: KAWEFLEX 6510 SK-TP-C-PVC UL/CSA
