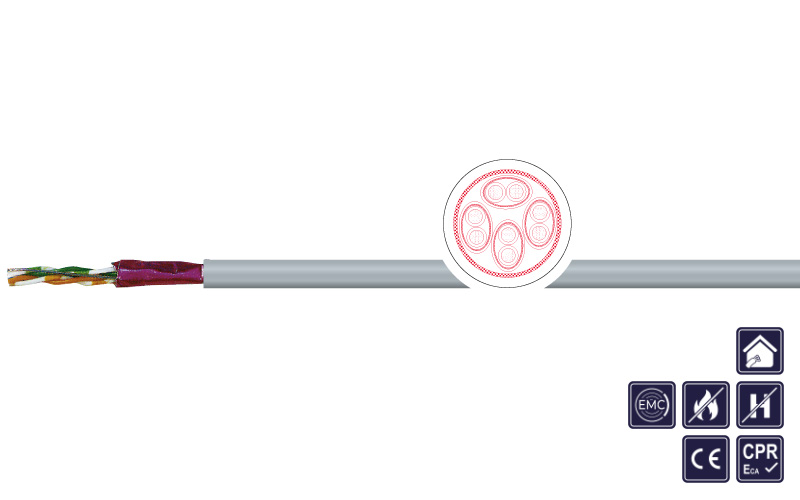

Use of cable

for transmitting of digital and analog signals for all ICT network applications at frequencies up to 250 resp. 500 MHz. Main use in/on buildings with high terminal density, such as in office, administration, research & development buildings in the tertiary sector. Patch cables are designed for cabling in the workplace area for device connection or as switchboard cables in patch panels.

Special features

  • suits to the requirements of: EN 50173, ISO/ IEC11801, TIA / EIA 568, TSB36, EN 50288, IEC61156-5
  • for use in LANs like IEEE802.3: 10/100/1000 Base-T; Cat.6A: 10GBase-T; IEE802.5: FDDI, ISDN, ATM.
  • suitable for transfer of Power over Ethernet (PoE) / PoE +
  • LSZH: halogen-free, flame retardant, low smoke density (LowSmokeZeroHalogen)
  • Note: U/UTP = UTP*|F/UTP = UTP/S*|SF/UTP = UTP/BS*,S-FTP*

Remarks

  • conform to RoHS // conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • acc. to standards ISO/IEC 11801 resp. EN 50173 the cable length should not exceed a length of 100 m (90 m cable duct + 10 m workplace) in tertiary area (horizontal area, floor)
  • further types and special types upon request
Conductor material: Bare copper strand
Conductor class: Single wire or strand
Core insulation: SFS-PE resp. PE
Core identification: Whbu-bu, whog-og, whgn-gn, whbn-bn (resp. wh-bu, wh-og, wh-gn, wh-bn - at FTP types)
Stranding: Cores twisted to pair
Shield: U/UTP: unschielded F/UTP: plastic clad aluminium foil as overall shield U/FTP: plastic clad aluminium foil as pair shield F/FTP: plastic clad aluminium foil als pair- & overall shield S/FTP: copper braid tinned as overall shield & plastic clad aluminium foil as pair shield
Outer sheath: PVC or halogenfree special compound
Sheath colour: PVC: grey; LSZH: orange
Loop resistance: AWG24/1: max. 19 Ω/100 m; AWG23/1: max. 16 Ω/100 m
Capacity: Cat.6: nom. 50nF/km; Cat.6A nom. 45 nF/km
Characteristic impedance: 100 Ω ± 15% at 100 MHz
Min. bending radius fixed: 4 x d
Min. bending radius moved: 8 x d
Operat. temp. fixed min/max: -20 °C / +60 ° C
Operat. temp. moved min/max: 0 °C / + 50 °C (during installation)
Halogen free: LSZH: acc. to IEC 60754-2
Smoke density: LSZH: acc. to IEC 61034
Corrodibility: LSZH: acc. to EN 50267-2-2
Burning behavior: Flame-retardant and self-extingushing acc. to IEC 60332-1-2; type F/FTP, S/FTP LSZH AWG24/1 additional acc. to IEC 60332-3-24
Standard: EN 50173, ISO/IEC 11801, TIA/EIA 568, TSB36, EN 50288, IEC 61156-5, PoE: IEEE 802.3af

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
2003469 4 X 2 X AWG 24/1 6,3 18,0 46,0 grey V1: Cat.6 - 250: PVC - feste Verlegung / fixed installation
2002426 4 X 2 X AWG 24/1 6,3 18,0 46,0 orange V2: Cat.6 - 250: LSZH - feste Verlegung / fixed installation
2003432 4 X 2 X AWG 24/1 7,2 19,0 55,0 orange V2: Cat.6 - 250: LSZH - feste Verlegung / fixed installation
2002427 4 X 2 X AWG 23/1 7,7 27,0 58,0 grey V3: Cat.6A - 500: PVC - feste Verlegung / fixed installation
2002428 4 X 2 X AWG 23/1 7,3 22,0 54,0 orange V4: Cat.6A - 500: LSZH - feste Verlegung / fixed installation
2002429 4 X 2 X AWG 23/1 7,4 22,0 58,0 orange V4: Cat.6A - 500: LSZH - feste Verlegung / fixed installation
