Use of cable

as a data cable for the transmission of digital and analog signals for Industrial Ethernet, ICT network applications and also in PROFINET systems. For fixed applications in industrial, highly combustible or fire-risk industrial areas for industrial machinery, decices and cabinet wiring.

Standard acc. Industrial Ethernet Spec. & according the requirements for industrial secondary & and tertiary cabling: EN 50173, ISO/IEC 11801, ISO/IEC 24702, TIA/EIA 568, TSB36, EN 50288, IEC 61156-5/-6

Special features

  • largely resistant to grease, coolant fluids and lubricants
  • optimized EMC compliant shielding
  • 4 pairs: 10/100/1000Mbit/s (Cat. 6) & 10Gbit/s (Cat. 7) for Industrial Ethernet
  • HF-characteristics Cat. 6 & 7 acc.to IEC 61156-5 (solid)
  • max. cable lengths at above stated transmission rate:
                100m (solid)
  • circuit integrity function: 120 min (acc. to EN 50200)

Remarks

  • conform to RoHS
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • LABS-/silicone-free (during production)
  • FRNC: Flame Retardant, Non Corrosive
Conductor material: Bare copper conductor
Conductor class: Solid
Core insulation: Polyolefin with special-tape (anti-fire-barrier)
Core identification: Whbu-bu, whog-og, whgn-gn, whbn-bn (resp. wh-bu, wh-og, wh-gn, wh-bn - at FTP types)

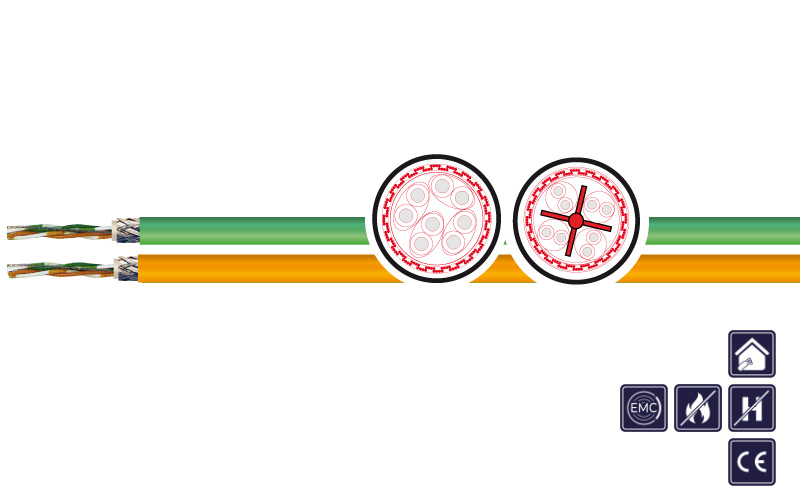

Overall stranding: Cores twisted to pairs, Cat. 6: pairs stranded together qround halogen-free separator
Outer sheath: Halogen-free compound
Sheath colour: Green RAL 6018 (GN), orange RAL 2003 (OG)
Rated voltage: 125 V (not for high voltage purposes)
Capacity: Nom. 65 nF/km (800 Hz)
Characteristic impedance: 100 Ω ± 15 Ω
Transfer rate: Cat. 6 up to 1.024Mbit/s | Cat. 7 up to 10Gbit/s.
Min. bending radius fixed: 15 x d
Min. bending radius moved: 15 x d
Operat. temp. fixed min/max: -20 °C / + 70 °C
Halogen free: Acc. to IEC 60754-1
Smoke density: Acc. to IEC 61034-2
Corrodibility: Acc. to IEC 60754-2
Burning behavior: Acc. to IEC 60332-1 & IEC 60332-3-24, fire resistant acc. to IEC 50200

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
2003805 4 X 2 X AWG 23/1 8,6 35,0 750,0 red V0: IND. ETHERNET FIRE PH120 C-H
2003804 4 X 2 X AWG 22/1 10,6 44,0 138,0 green V0: IND. ETHERNET FIRE PH120 C-H
2003803 4 X 2 X AWG 22/1 11,0 44,0 145,0 orange V0: IND. ETHERNET FIRE PH120 C-H
