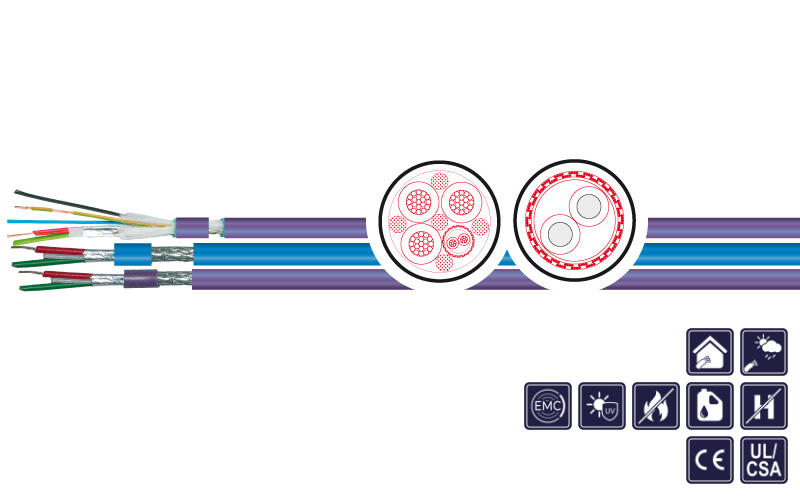

Use of cable

as fieldbus cable for PROFIBUS (Process Field BUS) systems, for high flexible applications (e.g. power chains, gantry robots, pick&place units, conveyors, machine tools, automated production systems, etc.)

These cables are suitable for PROFIBUS DP (Decentralized Peripherals) and PROFIBUS FMS (Fieldbus Message Specification) and also for FIP (Factory Instrumentation Protocol) applications. Standard acc. to Profibus-Spec.: EN61158 & EN61784 (DIN19245 T3 & EN50170)

Special features

  • low adhesion
  • largely resistant to grease, coolant fluids and lubricants
  • oil-resistant: PUR & PVC acc.to DIN EN 60811-2-1 (PVC only mineral oil)
  • UV-resistant
  • optimized EMC compliant shielding
  • max. cable lengths for a bus segment acc.to PI at stated transmission rate:
      PROFIBUS DP: 93,75kbit/s-max.1,2km | 187,5kbit/s-max.1km | 0,5Mbit/s-max.400m
                                 1,5 Mbit/s-max.200m | 12,0 Mbit/s-max.100m
      FIP                   : 2,5 Mbit/s-max. 200m

Remarks

  • conform to RoHS // conform to DESINA (violet)
  • LABS-/silicone-free (during production)
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • FRNC: Flame Retardant Non Corrosive, halogen free
  • FC-Type = 'fast-connect' construction // PI = Profibus & Profinet International
Conductor material: Bare copper strand
Conductor class: Ø 0,64L & 0,34 mm²: 19-wired; 1,0 mm²: fine wired acc. to IEC 60228 cl. 6
Core insulation: BUS: foamed PE/PP; supply cores: Polyolefin
Core identification: BUS: gn, rd; supply cores: bk, bu, gnye (1,0mm²) | bk with numerals (1,5mm²)
Stranding: BUScores stranded to a pair
Shield: Alu-lam. polyester foil, metal side outside, coverage 100% under copper braid tinned
Overall stranding: HYBRID: screened BUSelem. a. supply cores stranded
Outer sheath: PVC resp. PUR
Outer sheath construction: Violet RAL 4001 (VT) or petrol (PT)
Rated voltage: BUScores: 250 V (not for high voltage purposes); supply cores: 500 V
Loop resistance: Max. 133,0 Ω/km-0,64L & 0,8L, max. 39,0 Ω/km-1 mm², max. 26,6 Ω/km-1,5 mm²
Capacity: Nom. 30 nF/km
Characteristic impedance: 150 +/- 15 Ω
Min. bending radius fixed: 5 x d
Min. bending radius moved: 7,5 x d < 3mTL* | 15 x d ≥ 3mTL*, FESTOON: 10 x d
Operat. temp. fixed min/max: -40 °C / +80 °C
Operat. temp. moved min/max: PVC: -10 °C / +70 °C; PUR: -30 °C/ +70 °C
Halogen free: Acc. to IEC 60754-1 (FRNC types)
Burning behavior: PVC CMG: acc. IEC 60332-3-24(Cat.C), FT 4 | PUR: acc. IEC 60332-1-2 | PUR CMX: acc. IEC 60332-1-2, VW-1
Torsion: TORSION: ± 180°/m
Approvals: See table right side
Speed: Self-supporting: 4 m/s
Acceleration: Max. 5 m/s² | TORSION: max. 10 m/s²

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
2003646 1X2X0,64L (AWG23/19) 7,8 30,0 65,0 violet V1: PROFIBUS DP - Trailing
2003647 1X2X0,64L (AWG23/19) 7,8 30,0 78,0 violet V1: PROFIBUS DP - Trailing
2003648 1X2X0,64L (AWG23/19) 7,8 30,0 78,0 petrol V1: PROFIBUS DP - Trailing
2003649 1X2X0,64L (AWG23/19) 8,0 30,0 70,0 violet V1: PROFIBUS DP - Trailing
2003650 1X2X0,64L(AWG23/19)+3G1(AWG18) 9,9 60,0 108,0 violet V2.1: PROFIBUS DP - HYBRID
2003651 1X2X0,64L(AWG23/19)+2X1,5(AWG16) 11,0 60,0 128,0 violet V2.1: PROFIBUS DP - HYBRID
2003652 1X2X0,64L(AWG23/19)+2X1,5(AWG16) 11,0 60,0 131,0 violet V2.1: PROFIBUS DP - HYBRID
2003653 1X2X0,64L(AWG23/19)+4X1,5(AWG16) 11,0 90,0 162,0 violet V2.2: PROFIBUS DP - ECOFAST
2003654 1X2X0,64L(AWG23/19)+4X1,5(AWG16) 11,0 90,0 170,0 violet V2.2: PROFIBUS DP - ECOFAST
2003655 1 X 2 X 0,8L (AWG22/19) 8,2 31,0 75,0 violet V3: PROFIBUS DP - TORSION
2003656 1 X 2 X 0,64L (AWG23/19) 8,0 30,0 71,0 petrol V4: PROFIBUS DP - Festoon
2003657 1 X 2 X 0,64L (AWG23/19) 8,0 30,0 75,0 petrol V4: PROFIBUS DP - Festoon
