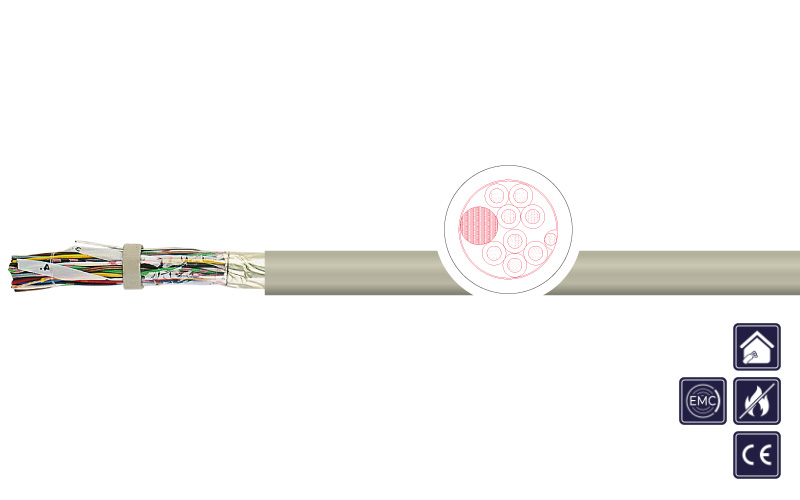

Use of cable

installation cable, data transmission cable, control and connecting cable in telecommunication and IT-systems as well as in measurement and control technology for lossless data and signal transmission. Suitable for use in dry and humid rooms, outdoor use only with UV-protection. No laying underground.

Special features

  • shielded by plastic clad aluminium foil
  • pairs stranded to bundles (Bd)
  • largely resistant to acids, bases and specified types of oils
  • free from lacquer damaging substances and silicone (during production)
  • also available:
    RD-Y(St)Y Bd EB with blue outer sheath for intrinsically safe systems
    RD-Y(St)Yv Bd with strengthend outer sheath or halogenfree RD-H(St)H Bd
  • suitable for maxi-termi-point applications by 7-wire conductors

Remarks

  • conform to RoHS
  • conform to 2006/95/EC-Guideline CE
  • installation cables are not designed for high voltage purposes and are not suitablefor laying underground
  • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Conductor material: Bare copper strand
Conductor class: 7 wired
Core insulation: PVC
Core identification: Acc. to VDE 0815 different colours
Stranding: Pairs stranded to bundles
Shield3: Plastic clad aluminium foil with subjacent drain wire 0,8 mm
Outer sheath: PVC
Sheath colour: Grey RAL7000
Rated voltage: 225 V
Testing voltage: Core/core: 2 kV; core/shield: 2 kV
Conductor resistance: Loop: 0,5: max 78,4 Ω / km; 1,0: max 36,8 Ω / km
Insulation resistance: Min 100 MΩ x km
Current-carrying-capacity: Acc. to DIN VDE, s. Techn. Guidelines
Capacity: Max. 100 nF/km
Min. bending radius fixed: 7,5 x d
Min. bending radius moved: 10 x d
Operat. temp. fixed min/max: -30 °C / +70 °C
Operat. temp. moved min/max: - 5 °C / +50 °C
Burning behavior: Acc. to VDE 0472-804-B und IEC 60332-1
Standard: Acc. to DIN VDE 0815

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
2000222 2 X 2 X 0,5 6,5 25,0 65,0 grey V1: RD-Y(ST)Y BD
2000225 4 X 2 X 0,5 9,0 45,0 110,0 grey V1: RD-Y(ST)Y BD
2000226 8 X 2 X 0,5 11,5 85,0 180,0 grey V1: RD-Y(ST)Y BD
2000218 12 X 2 X 0,5 13,5 125,0 250,0 grey V1: RD-Y(ST)Y BD
2000220 16 X 2 X 0,5 15,5 165,0 310,0 grey V1: RD-Y(ST)Y BD
2000219 20 X 2 X 0,5 17,5 205,0 383,0 grey V1: RD-Y(ST)Y BD
2000221 24 X 2 X 0,5 19,0 245,0 450,0 grey V1: RD-Y(ST)Y BD
2000223 32 X 2 X 0,5 21,0 325,0 560,0 grey V1: RD-Y(ST)Y BD
2000224 48 X 2 X 0,5 25,5 485,0 810,0 grey V1: RD-Y(ST)Y BD
2000227 96 X 2 X 0,5 34,0 965,0 1.570,0 grey V1: RD-Y(ST)Y BD
2000893 2 X 2 X 0,5 6,5 25,0 65,0 blue V2: RD-Y(ST)Y BD EB
2001133 4 X 2 X 0,5 9,0 45,0 110,0 blue V2: RD-Y(ST)Y BD EB
2003092 8 X 2 X 0,5 11,5 85,0 180,0 blue V2: RD-Y(ST)Y BD EB
2003093 12 X 2 X 0,5 13,5 125,0 250,0 blue V2: RD-Y(ST)Y BD EB
2000892 16 X 2 X 0,5 15,5 165,0 310,0 blue V2: RD-Y(ST)Y BD EB
2003094 24 X 2 X 0,5 19,0 245,0 450,0 blue V2: RD-Y(ST)Y BD EB
2003095 32 X 2 X 0,5 21,0 325,0 560,0 blue V2: RD-Y(ST)Y BD EB
2003096 48 X 2 X 0,5 25,6 485,0 810,0 blue V2: RD-Y(ST)Y BD EB
2003097 96 X 2 X 0,5 34,0 965,0 1.570,0 blue V2: RD-Y(ST)Y BD EB
2003107 2 X 2 X 0,5 9,0 25,0 95,0 grey V3: RD-Y(ST)Yv BD
2000906 4 X 2 X 0,5 10,5 45,0 145,0 grey V3: RD-Y(ST)Yv BD
2003108 8 X 2 X 0,5 12,5 85,0 240,0 grey V3: RD-Y(ST)Yv BD
2001120 12 X 2 X 0,5 15,0 125,0 330,0 grey V3: RD-Y(ST)Yv BD
2003109 16 X 2 X 0,5 17,0 165,0 400,0 grey V3: RD-Y(ST)Yv BD
2003110 24 X 2 X 0,5 20,0 245,0 520,0 grey V3: RD-Y(ST)Yv BD
2003111 32 X 2 X 0,5 22,0 325,0 720,0 grey V3: RD-Y(ST)Yv BD
2003112 48 X 2 X 0,5 27,5 485,0 1.050,0 grey V3: RD-Y(ST)Yv BD
2003113 96 X 2 X 0,5 38,5 965,0 1.900,0 grey V3: RD-Y(ST)Yv BD
2003098 2 X 2 X 0,5 9,0 25,0 95,0 blue V4: RD-Y(ST)Yv BD EB
2003099 4 X 2 X 0,5 10,6 45,0 145,0 blue V4: RD-Y(ST)Yv BD EB
2003100 8 X 2 X 0,5 12,6 85,0 240,0 blue V4: RD-Y(ST)Yv BD EB
2003101 12 X 2 X 0,5 15,0 125,0 330,0 blue V4: RD-Y(ST)Yv BD EB
2003102 16 X 2 X 0,5 17,0 165,0 400,0 blue V4: RD-Y(ST)Yv BD EB
2003103 24 X 2 X 0,5 20,0 245,0 520,0 blue V4: RD-Y(ST)Yv BD EB
2003104 32 X 2 X 0,5 22,0 325,0 720,0 blue V4: RD-Y(ST)Yv BD EB
2003105 48 X 2 X 0,5 27,6 485,0 1.050,0 blue V4: RD-Y(ST)Yv BD EB
2003106 96 X 2 X 0,5 38,6 965,0 1.900,0 blue V4: RD-Y(ST)Yv BD EB
