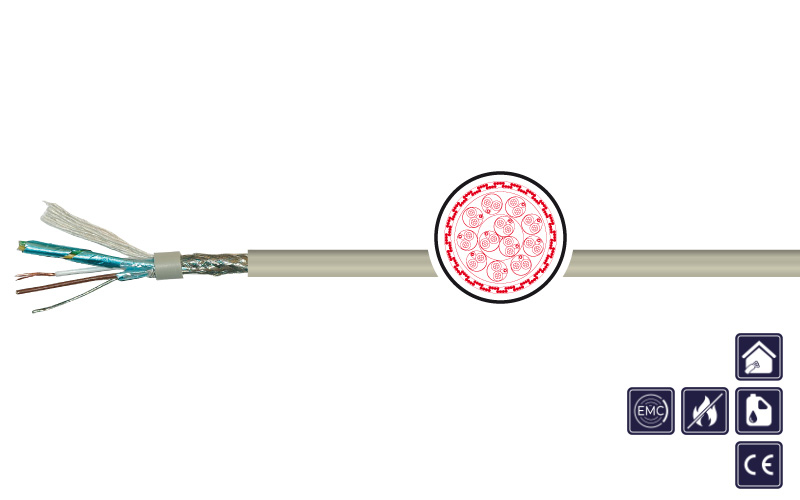

Use of cable

data transmission cable, control and connecting cable especially for cabling with high data transfer rates up to 10 Mb/s, for lossless data and signal transmission. For fixed laying and flexible applications with undefined cable routing and without tensile stress. Suitable for use in dry and humid rooms. Outdoor use only with UV-protection, no laying underground.

Special features

  • shielded single pairs by aluminium foil-clad
  • twisted pairs
  • largely resistant to acids, bases and specified types of oil
  • LABS-/silicone-free (during production)
  • recommended for EMC-applications
  • suitable for maxi-termi-point applications by 7wire conductors <1 mm²

Remarks

  • conform to RoHS
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Conductor material: Bare copper strand
Conductor class: 7 wired
Core insulation: PE
Core identification: Acc. to DIN 47100 different colours
Stranding: Pairs stranded in layers
Shield: Pairs in metal-foil (PiMf) with subjacent tinned drain wire
Shield3: Copper braid tinned; coverage approx. 85%
Outer sheath: PVC
Sheath colour: Grey, RAL 7032
Rated voltage: 250 V
Testing voltage: Core/core: 2 kV; core/shield: 1 kV
Conductor resistance: Loop: 0,22 mm² max. 186 Ω / km; 0,34 mm² max. 115 Ω / km; 0,50 mm² max. 78,4 Ω / km
Insulation resistance: Min 5 GΩ x km
Current-carrying-capacity: Acc. to DIN VDE, s. Techn. Guidelines
Capacity: Up to 0,34 max. 70 nF/km; 0,5 mm² max. 75nF/km; 1,0 mm² max. 84nF/km (from 4 pairs)
Min. bending radius fixed: 10 x d
Min. bending radius moved: 15 x d
Operat. temp. fixed min/max: -30 °C / +80 °C
Operat. temp. moved min/max: -5 °C / +70 °C
Burning behavior: Flame-retardant acc. to IEC 60332-1-2
Standard: Similar to DIN VDE 0812

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
0507689 8 X 2 X 0,14 8,3 72,0 105,0 grey V0: DATEX-PIMF-CY LI2YCY-PiMf
0502571 2 X 2 X 0,22 6,6 33,0 65,0 grey V0: DATEX-PIMF-CY LI2YCY-PiMf
0502557 3 X 2 X 0,22 8,0 37,0 85,0 grey V0: DATEX-PIMF-CY LI2YCY-PiMf
0501797 4 X 2 X 0,22 8,3 49,0 98,0 grey V0: DATEX-PIMF-CY LI2YCY-PiMf
0506949 8 X 2 X 0,22 10,8 85,0 133,0 grey V0: DATEX-PIMF-CY LI2YCY-PiMf
0506950 10 X 2 X 0,22 11,5 100,0 164,0 grey V0: DATEX-PIMF-CY LI2YCY-PiMf
0502377 2 X 2 X 0,34 9,0 44,0 70,0 grey V0: DATEX-PIMF-CY LI2YCY-PiMf
0502367 3 X 2 X 0,34 9,1 55,0 95,0 grey V0: DATEX-PIMF-CY LI2YCY-PiMf
0502368 4 X 2 X 0,34 9,4 67,0 103,0 grey V0: DATEX-PIMF-CY LI2YCY-PiMf
0502515 8 X 2 X 0,34 13,4 114,0 191,0 grey V0: DATEX-PIMF-CY LI2YCY-PiMf
0506951 10 X 2 X 0,34 14,3 150,0 230,0 grey V0: DATEX-PIMF-CY LI2YCY-PiMf
0500067 2 X 2 X 0,5 8,8 47,0 108,0 grey V0: DATEX-PIMF-CY LI2YCY-PiMf
0502372 3 X 2 X 0,5 10,0 64,0 116,0 grey V0: DATEX-PIMF-CY LI2YCY-PiMf
0502002 4 X 2 X 0,5 10,4 81,0 145,0 grey V0: DATEX-PIMF-CY LI2YCY-PiMf
0502301 5 X 2 X 0,5 11,3 98,0 167,0 grey V0: DATEX-PIMF-CY LI2YCY-PiMf
0502297 6 X 2 X 0,5 13,0 150,0 229,0 grey V0: DATEX-PIMF-CY LI2YCY-PiMf
0502300 8 X 2 X 0,5 14,9 162,0 271,0 grey V0: DATEX-PIMF-CY LI2YCY-PiMf
0502399 10 X 2 X 0,5 15,9 202,0 327,0 grey V0: DATEX-PIMF-CY LI2YCY-PiMf
0502003 4 X 2 X 0,75 14,0 141,0 240,0 grey V0: DATEX-PIMF-CY LI2YCY-PiMf
0506803 8 X 2 X 0,75 17,2 246,0 415,0 grey V0: DATEX-PIMF-CY LI2YCY-PiMf
0500382 10 X 2 X 0,75 18,2 305,0 505,0 grey V0: DATEX-PIMF-CY LI2YCY-PiMf
0502514 2 X 2 X 1 11,7 70,0 126,0 grey V0: DATEX-PIMF-CY LI2YCY-PiMf
0506952 3 X 2 X 1 11,8 97,0 156,0 grey V0: DATEX-PIMF-CY LI2YCY-PiMf
0506338 4 X 2 X 1 12,7 186,0 233,0 grey V0: DATEX-PIMF-CY LI2YCY-PiMf
0502395 10 X 2 X 1 19,7 332,0 492,0 grey V0: DATEX-PIMF-CY LI2YCY-PiMf
