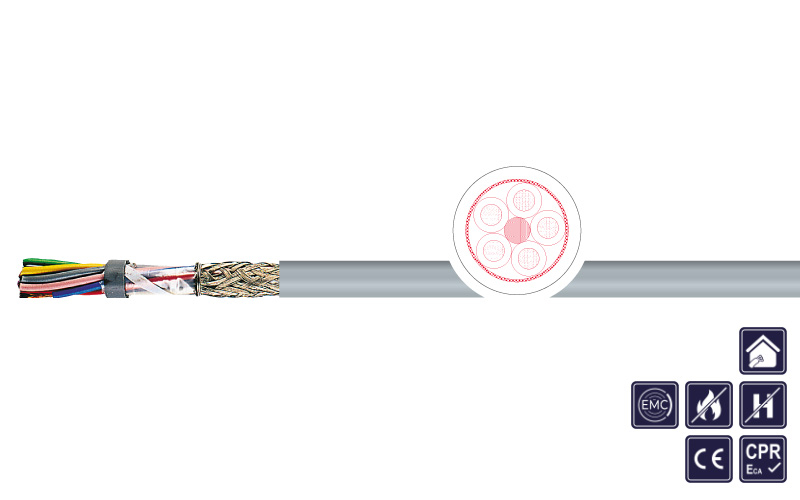

Use of cable

halogen-free and environmentally data transmission cable, control and connecting cable predominantly for transmission of analog and digital signals in process controlled facilities in measurement and control technology, in fire vulnerable areas and facilities with high concentration of people and property values, for lossless transmission of datas and signals. For fixed laying and flexible applications with undefined cable routing and without tensile stress. Suitable for use in dry and humid rooms. Outdoor use only with UV-protection, no laying underground.

Special features

  • free from lacquer damaging substances and silicone (during production)
  • FRNC (Flame Retardant, non corrosive)
  • LSF 0H (Low Smoke in Fume, Zero Halogen)
  • recommended for EMC-applications

Remarks

  • conform to RoHS
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Conductor material: Bare copper strand
Conductor class: Acc. to IEC 60228 cl. 5; exception: 0,34 mm², stranded (7 x 0,25 mm)
Core insulation: Special halogen-free compound
Core identification: Acc. to DIN 47100 different colours
Stranding: Stranded in layers
Shield3: Copper braid tinned, coverage approx. 85%
Outer sheath: Special halogen-free compound
Sheath colour: Grey, RAL 7001
Rated voltage: Uo/U: 250 V; peak-voltage on 0,14 mm² 350 V; > 0,14 mm² 500 V
Testing voltage: On 0,14 mm²: core/core 1,2 kV; core/shield 1 kV > 0,14 mm²: core/core 1,5 kV; core/shield 1 kV
Conductor resistance: Nach IEC 60228 cl. 5
Insulation resistance: Min. 20 MΩ xkm
Current-carrying-capacity: Acc. to DIN VDE, s. Techn. Guidelines
Capacity: Core/core ca. 120 nF/km; core/shield ca. 160 nF/km
Min. bending radius fixed: Up to 20 mm Ø 7,5 x d, > 20 mm Ø: 10 x d
Min. bending radius moved: Up to 20 mm Ø 15 x d, > 20 mm Ø 20 x d
Operat. temp. fixed min/max: -30 °C / +80 °C
Operat. temp. moved min/max: -5 °C / +70 °C
Halogen free: Acc. to IEC 60754-2
Burning behavior: Flame-retardant acc. to IEC 60332-3-24 (Cat. C)
Standard: Similar to DIN VDE 0812

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
0506973 2 X 0,14 3,6 12,0 20,0 grey V0: ELITRONIC-CH LIHCH
0506974 3 X 0,14 3,7 13,0 28,0 grey V0: ELITRONIC-CH LIHCH
0501566 4 X 0,14 3,9 14,3 33,0 grey V0: ELITRONIC-CH LIHCH
0506975 5 X 0,14 4,2 15,5 38,0 grey V0: ELITRONIC-CH LIHCH
0506976 6 X 0,14 4,9 17,4 43,0 grey V0: ELITRONIC-CH LIHCH
0506977 7 X 0,14 4,9 20,3 49,0 grey V0: ELITRONIC-CH LIHCH
0506978 8 X 0,14 5,2 21,2 56,0 grey V0: ELITRONIC-CH LIHCH
0506979 10 X 0,14 5,8 28,5 66,0 grey V0: ELITRONIC-CH LIHCH
0506980 12 X 0,14 6,0 30,4 78,0 grey V0: ELITRONIC-CH LIHCH
0506982 14 X 0,14 6,3 32,0 80,0 grey V0: ELITRONIC-CH LIHCH
0506983 15 X 0,14 6,4 37,8 86,0 grey V0: ELITRONIC-CH LIHCH
0506984 16 X 0,14 6,6 43,0 90,0 grey V0: ELITRONIC-CH LIHCH
0506985 18 X 0,14 6,9 48,8 104,0 grey V0: ELITRONIC-CH LIHCH
0506986 20 X 0,14 7,3 53,9 116,0 grey V0: ELITRONIC-CH LIHCH
0506987 21 X 0,14 7,3 55,5 121,0 grey V0: ELITRONIC-CH LIHCH
0501546 25 X 0,14 8,0 63,0 149,0 grey V0: ELITRONIC-CH LIHCH
0506988 2 X 0,25 4,1 16,0 32,0 grey V0: ELITRONIC-CH LIHCH
0506989 3 X 0,25 4,2 21,0 37,0 grey V0: ELITRONIC-CH LIHCH
0506990 4 X 0,25 4,9 24,0 41,3 grey V0: ELITRONIC-CH LIHCH
0506991 5 X 0,25 5,3 29,0 51,2 grey V0: ELITRONIC-CH LIHCH
0506992 6 X 0,25 5,7 30,0 58,0 grey V0: ELITRONIC-CH LIHCH
0506993 7 X 0,25 5,8 37,0 65,0 grey V0: ELITRONIC-CH LIHCH
0506994 8 X 0,25 6,1 42,0 73,0 grey V0: ELITRONIC-CH LIHCH
0506995 10 X 0,25 6,8 46,0 82,0 grey V0: ELITRONIC-CH LIHCH
0506996 12 X 0,25 7,3 59,0 91,0 grey V0: ELITRONIC-CH LIHCH
0506997 14 X 0,25 7,6 62,0 99,0 grey V0: ELITRONIC-CH LIHCH
0506998 15 X 0,25 7,8 63,0 111,0 grey V0: ELITRONIC-CH LIHCH
0506999 16 X 0,25 8,0 64,0 124,0 grey V0: ELITRONIC-CH LIHCH
0507000 18 X 0,25 8,4 83,0 143,0 grey V0: ELITRONIC-CH LIHCH
0507001 20 X 0,25 8,7 88,0 152,3 grey V0: ELITRONIC-CH LIHCH
0507002 21 X 0,25 8,7 93,0 161,0 grey V0: ELITRONIC-CH LIHCH
0507003 25 X 0,25 9,7 114,0 172,0 grey V0: ELITRONIC-CH LIHCH
0507004 2 X 0,34 4,7 21,0 37,0 grey V0: ELITRONIC-CH LIHCH
0507005 3 X 0,34 4,8 27,0 49,0 grey V0: ELITRONIC-CH LIHCH
0507006 4 X 0,34 5,2 28,0 59,0 grey V0: ELITRONIC-CH LIHCH
0507007 5 X 0,34 5,6 30,0 66,0 grey V0: ELITRONIC-CH LIHCH
0507008 6 X 0,34 6,0 45,0 79,0 grey V0: ELITRONIC-CH LIHCH
0507009 7 X 0,34 6,1 48,0 83,0 grey V0: ELITRONIC-CH LIHCH
0507010 8 X 0,34 6,5 52,0 94,0 grey V0: ELITRONIC-CH LIHCH
0507011 10 X 0,34 7,4 74,0 129,2 grey V0: ELITRONIC-CH LIHCH
0507012 12 X 0,34 7,7 80,0 142,0 grey V0: ELITRONIC-CH LIHCH
0507013 14 X 0,34 8,1 86,0 154,0 grey V0: ELITRONIC-CH LIHCH
0507014 15 X 0,34 8,2 90,0 155,0 grey V0: ELITRONIC-CH LIHCH
0506438 16 X 0,34 8,5 94,0 160,0 grey V0: ELITRONIC-CH LIHCH
0507015 18 X 0,34 8,9 103,0 173,0 grey V0: ELITRONIC-CH LIHCH
0506547 20 X 0,34 9,3 112,0 192,0 grey V0: ELITRONIC-CH LIHCH
0507016 21 X 0,34 9,3 116,0 199,2 grey V0: ELITRONIC-CH LIHCH
0507017 25 X 0,34 10,6 135,0 259,0 grey V0: ELITRONIC-CH LIHCH
0502652 2 X 0,5 5,3 29,0 54,0 grey V0: ELITRONIC-CH LIHCH
0502343 3 X 0,5 5,5 38,0 67,0 grey V0: ELITRONIC-CH LIHCH
0506807 4 X 0,5 5,9 43,0 77,0 grey V0: ELITRONIC-CH LIHCH
0507018 5 X 0,5 6,5 51,0 90,0 grey V0: ELITRONIC-CH LIHCH
0507019 6 X 0,5 7,1 59,0 104,0 grey V0: ELITRONIC-CH LIHCH
0507020 7 X 0,5 7,2 65,0 112,0 grey V0: ELITRONIC-CH LIHCH
0502655 8 X 0,5 7,6 70,0 135,0 grey V0: ELITRONIC-CH LIHCH
0507021 10 X 0,5 8,6 88,0 160,0 grey V0: ELITRONIC-CH LIHCH
0507022 12 X 0,5 9,0 99,0 177,0 grey V0: ELITRONIC-CH LIHCH
0507023 18 X 0,5 10,7 134,0 239,0 grey V0: ELITRONIC-CH LIHCH
0507024 20 X 0,5 11,1 149,0 276,0 grey V0: ELITRONIC-CH LIHCH
0507025 25 X 0,5 12,3 211,0 352,0 grey V0: ELITRONIC-CH LIHCH
0503305 2 X 0,75 5,7 38,0 64,0 grey V0: ELITRONIC-CH LIHCH
0503139 3 X 0,75 5,9 49,0 76,0 grey V0: ELITRONIC-CH LIHCH
0506638 4 X 0,75 6,5 58,0 92,0 grey V0: ELITRONIC-CH LIHCH
0507026 5 X 0,75 7,1 67,0 109,0 grey V0: ELITRONIC-CH LIHCH
0507027 7 X 0,75 7,8 100,0 156,0 grey V0: ELITRONIC-CH LIHCH
0507028 10 X 0,75 9,4 130,0 187,0 grey V0: ELITRONIC-CH LIHCH
0507029 12 X 0,75 9,8 154,0 218,0 grey V0: ELITRONIC-CH LIHCH
0503318 18 X 0,75 11,6 195,0 327,0 grey V0: ELITRONIC-CH LIHCH
0507030 25 X 0,75 14,0 280,0 454,0 grey V0: ELITRONIC-CH LIHCH
0507031 2 X 1 6,2 43,0 72,0 grey V0: ELITRONIC-CH LIHCH
0507032 3 X 1 6,5 56,0 90,0 grey V0: ELITRONIC-CH LIHCH
0507033 4 X 1 7,1 68,0 109,0 grey V0: ELITRONIC-CH LIHCH
0507034 5 X 1 7,7 79,0 126,0 grey V0: ELITRONIC-CH LIHCH
0507035 7 X 1 8,4 118,0 171,0 grey V0: ELITRONIC-CH LIHCH
0507036 10 X 1 10,4 140,0 228,0 grey V0: ELITRONIC-CH LIHCH
0503140 12 X 1 11,0 168,0 259,0 grey V0: ELITRONIC-CH LIHCH
0507037 18 X 1 12,7 252,0 389,0 grey V0: ELITRONIC-CH LIHCH
0507038 25 X 1 15,2 335,0 517,0 grey V0: ELITRONIC-CH LIHCH
0502667 2 X 1,5 7,1 58,0 90,0 grey V0: ELITRONIC-CH LIHCH
0502668 3 X 1,5 7,4 74,0 115,0 grey V0: ELITRONIC-CH LIHCH
0507039 4 X 1,5 8,0 108,0 153,0 grey V0: ELITRONIC-CH LIHCH
0507040 5 X 1,5 8,7 129,0 176,0 grey V0: ELITRONIC-CH LIHCH
0507041 7 X 1,5 9,6 164,0 220,0 grey V0: ELITRONIC-CH LIHCH
0507042 12 X 1,5 12,5 254,0 376,0 grey V0: ELITRONIC-CH LIHCH
0507043 18 X 1,5 15,5 350,0 519,0 grey V0: ELITRONIC-CH LIHCH
0507044 25 X 1,5 19,2 550,0 901,0 grey V0: ELITRONIC-CH LIHCH
