Fleksibilni upravljački kabeli

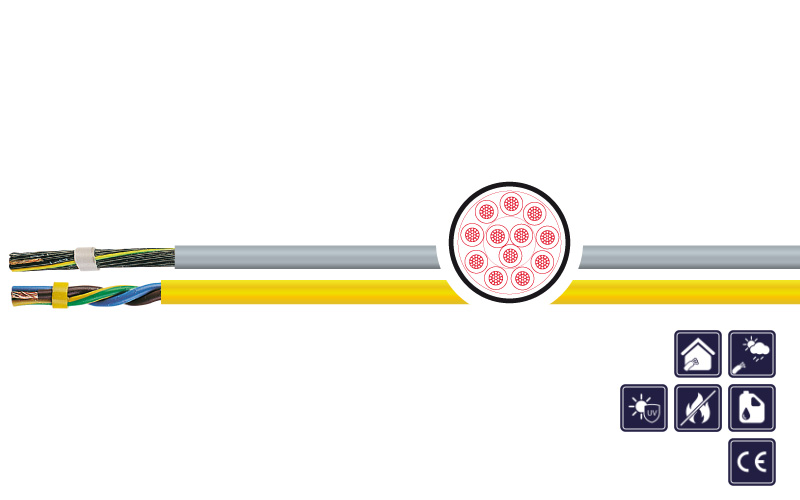

PUR GREY & PUR YELLOW (N)YMH11YÖ
ID: 01.04.01
300/500V, unshielded
Use of cable
power, control and connecting cable in electrical facilities and hand-held electric tools, for fixed laying and flexible applications with undefined cable routing and without tensile stress. Suitable for use in dry and humid rooms. Outdoor use within temperature range, no laying underground.
Special features
- increased oil resistant special-PUR-outer sheath resistance to acids, bases, dissolver, hydrolysis, lubricants etc. (see table of chemical resistance)
- LABS-free (during production)
- increased resistance to abrasion and microbes
- cutproof, tearproof
- UV-resistant PUR outer sheath
- PUR yellow: Safety cable with yellow outer sheath
Remarks
- conform to RoHS
- conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
- also available types: C-PUR GREY EMC & PUR BLACK DESINA
- Special versions, other dimensions, cross-sections, core and jacket colours are manufactured on request.
| Conductor material: | Bare copper strand |
|---|---|
| Conductor class: | Acc. to IEC 60228 cl. 5 |
| Core insulation: | PVC |
| Core identification: | PUR YELLOW: up to 5 cores acc. to DIN VDE 0293-308 coloured cores, from 6 wires TKD coloured code with or without GNYE; PUR GREY: acc. to DIN VDE 0293 black cores with white numerals with GNYE from 3 cores |
| Stranding: | Stranded in layers |
| Outer sheath: | PUR |
| Sheath colour: | Yellow RAL 1016 or grey RAL 7001 |
| Rated voltage: | Uo/U: 300/500 V |
| Testing voltage: | 3 kV |
| Conductor resistance: | Acc. to IEC 60228 cl. 5 |
| Insulation resistance: | Min. 20 MΩ x km |
| Current-carrying-capacity: | Acc. to. DIN VDE, see Technical Guidelines |
| Min. bending radius fixed: | 5 x d |
| Min. bending radius moved: | 12,5 x d |
| Operat. temp. fixed min/max: | -40 °C / +80 °C |
| Operat. temp. moved min/max: | -5 °C / +70 °C |
| Standard: | Similar to DIN VDE 0245, 0250 and 0282 |
Table of items
|
Product No.
|
Dimension
[n x mm²] |
Outer-Ø
[mm] |
Cu-Index
[kg/km] |
Weight
[kg/1.000] |
Sheath colour
|
Variant
|
|---|---|---|---|---|---|---|
| 1003644 | 2 X 0,5 | 5,1 | 9,6 | 40,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003646 | 3 G 0,5 | 5,4 | 14,4 | 55,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003158 | 4 G 0,5 | 6,0 | 19,0 | 65,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003650 | 5 G 0,5 | 6,5 | 24,0 | 75,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003651 | 7 G 0,5 | 7,2 | 33,6 | 90,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003654 | 12 G 0,5 | 9,3 | 57,6 | 135,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003655 | 18 G 0,5 | 10,8 | 86,4 | 205,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003658 | 25 G 0,5 | 13,2 | 120,0 | 270,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003659 | 2 X 0,75 | 5,4 | 14,4 | 44,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1001843 | 3 G 0,75 | 5,8 | 21,6 | 53,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003778 | 3 X 0,75 | 5,8 | 21,6 | 53,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1001870 | 4 G 0,75 | 6,4 | 28,8 | 64,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003779 | 4 X 0,75 | 6,4 | 28,8 | 64,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1001193 | 5 G 0,75 | 7,1 | 36,0 | 76,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003780 | 5 X 0,75 | 7,1 | 36,0 | 74,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1001185 | 7 G 0,75 | 7,8 | 50,4 | 96,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1001143 | 12 G 0,75 | 10,4 | 86,4 | 170,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003663 | 18 G 0,75 | 12,4 | 130,0 | 260,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003664 | 25 G 0,75 | 15,1 | 180,0 | 324,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003667 | 34 G 0,75 | 17,0 | 245,0 | 475,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1001156 | 2 X 1 | 5,8 | 19,2 | 53,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1001158 | 3 G 1 | 6,3 | 28,8 | 63,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1001164 | 4 G 1 | 6,9 | 38,4 | 75,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1001178 | 5 G 1 | 7,7 | 48,0 | 89,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003781 | 5 X 1 | 7,7 | 48,0 | 89,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1004950 | 6 G 1 | 8,8 | 57,6 | 99,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1001187 | 7 G 1 | 8,8 | 67,2 | 115,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1004948 | 9 G 1 | 10,7 | 86,4 | 167,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1001144 | 12 G 1 | 11,0 | 115,0 | 201,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1001147 | 18 G 1 | 13,0 | 173,0 | 289,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1001151 | 25 G 1 | 16,9 | 240,0 | 380,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003673 | 34 G 1 | 18,3 | 326,0 | 645,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1001155 | 2 X 1,5 | 6,5 | 28,8 | 68,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1001160 | 3 G 1,5 | 6,9 | 43,2 | 87,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1001166 | 4 G 1,5 | 7,6 | 57,6 | 106,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1001180 | 5 G 1,5 | 8,5 | 72,0 | 131,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1004949 | 6 G 1,5 | 9,4 | 86,4 | 162,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1001189 | 7 G 1,5 | 9,4 | 101,0 | 173,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1001145 | 12 G 1,5 | 12,8 | 173,0 | 273,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1001148 | 18 G 1,5 | 15,2 | 259,0 | 454,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1001152 | 25 G 1,5 | 18,5 | 360,0 | 641,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003677 | 34 G 1,5 | 20,8 | 490,0 | 945,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003678 | 42 G 1,5 | 23,5 | 605,0 | 1.100,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003681 | 50 G 1,5 | 24,2 | 720,0 | 1.250,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003683 | 2 X 2,5 | 8,2 | 48,0 | 110,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003684 | 3 G 2,5 | 8,7 | 72,0 | 146,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1001168 | 4 G 2,5 | 9,4 | 96,0 | 183,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1001182 | 5 G 2,5 | 10,3 | 120,0 | 222,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1001191 | 7 G 2,5 | 11,5 | 168,0 | 293,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1001146 | 12 G 2,5 | 15,7 | 288,0 | 512,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003688 | 18 G 2,5 | 18,7 | 432,0 | 740,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003689 | 25 G 2,5 | 24,1 | 600,0 | 940,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1001170 | 4 G 4 | 12,5 | 154,0 | 291,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1001777 | 5 G 4 | 14,0 | 192,0 | 355,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003692 | 7 G 4 | 15,4 | 269,0 | 503,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1501740 | 4 G 6 | 13,0 | 230,0 | 468,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003693 | 5 G 6 | 14,5 | 288,0 | 570,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003695 | 7 G 6 | 16,0 | 403,0 | 808,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003698 | 3 G 10 | 15,8 | 288,0 | 555,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003699 | 4 G 10 | 16,2 | 384,0 | 720,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003702 | 5 G 10 | 18,1 | 480,0 | 894,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003703 | 7 G 10 | 20,0 | 672,0 | 1.295,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1001823 | 4 G 16 | 18,8 | 614,0 | 1.063,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003707 | 5 G 16 | 23,6 | 768,0 | 1.400,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003708 | 7 G 16 | 29,3 | 1.075,0 | 1.800,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003711 | 4 G 25 | 29,4 | 960,0 | 1.590,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003712 | 4 G 35 | 32,8 | 1.344,0 | 2.200,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003715 | 4 G 50 | 38,9 | 1.920,0 | 2.400,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003716 | 4 G 70 | 44,7 | 2.688,0 | 4.400,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003719 | 4 G 95 | 59,6 | 3.648,0 | 6.000,0 | grey | V1: PUR GRAU (N)YMH11YÖ - grau/grey |
| 1003645 | 2 X 0,5 | 5,1 | 9,6 | 40,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1003647 | 3 G 0,5 | 5,4 | 14,4 | 55,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1003648 | 4 G 0,5 | 6,0 | 19,0 | 65,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1003649 | 5 G 0,5 | 6,5 | 24,0 | 75,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1003652 | 7 G 0,5 | 7,2 | 33,6 | 90,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1003653 | 12 G 0,5 | 9,3 | 57,6 | 135,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1003656 | 18 G 0,5 | 10,8 | 86,4 | 205,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1003657 | 25 G 0,5 | 13,2 | 120,0 | 270,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1001122 | 2 X 0,75 | 5,4 | 14,4 | 44,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1001125 | 3 G 0,75 | 5,8 | 21,6 | 53,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1001129 | 4 G 0,75 | 6,4 | 28,8 | 64,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1001135 | 5 G 0,75 | 7,1 | 36,0 | 76,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1003660 | 7 G 0,75 | 7,8 | 50,4 | 96,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1003661 | 12 G 0,75 | 10,4 | 86,4 | 170,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1003662 | 18 G 0,75 | 12,4 | 130,0 | 260,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1003665 | 25 G 0,75 | 15,1 | 180,0 | 324,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1003666 | 34 G 0,75 | 17,0 | 245,0 | 475,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1001123 | 2 X 1 | 5,8 | 19,2 | 53,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1001126 | 3 G 1 | 6,3 | 28,8 | 63,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1001130 | 4 G 1 | 6,9 | 38,4 | 75,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1001136 | 5 G 1 | 7,7 | 48,0 | 89,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1003668 | 7 G 1 | 8,8 | 67,2 | 115,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1003669 | 12 G 1 | 11,0 | 115,0 | 201,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1003670 | 18 G 1 | 13,0 | 173,0 | 289,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1003671 | 25 G 1 | 16,9 | 240,0 | 380,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1003672 | 34 G 1 | 18,3 | 326,0 | 645,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1001124 | 2 X 1,5 | 6,5 | 28,8 | 68,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1001127 | 3 G 1,5 | 6,9 | 43,2 | 87,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1001131 | 4 G 1,5 | 7,6 | 57,6 | 106,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
| 1001137 | 5 G 1,5 | 8,5 | 72,0 | 131,0 | yellow | V2: PUR GELB (N)YMH11YÖ - gelb/yellow |
