Use of cable

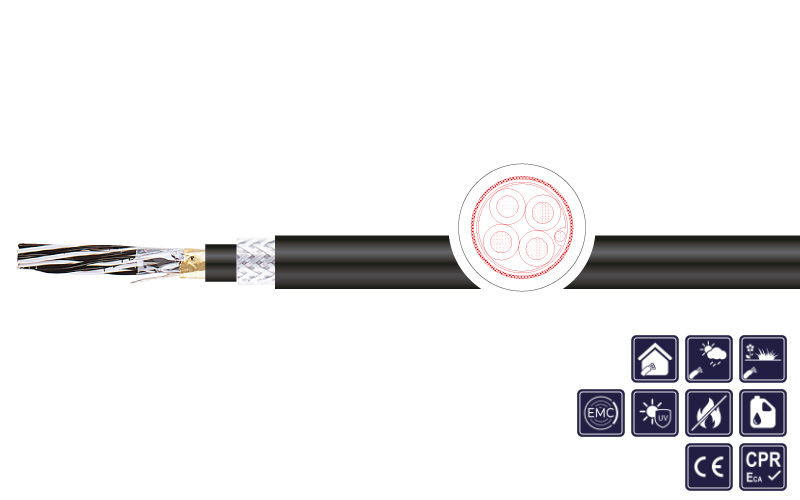

Instrumentationcable for optimal, lossless transmission of analogous and digital signals in measurement and process control technology. Suitable for intrinsically safe systems zone 1 and zone 2 group II classified areas acc. IEC 60079-14. Suitable for dry and humid rooms as well as outdoor use and laying underground.

Special features

  • more steady at higher frequencies and temperatures (+90°C) by XLPE core insulation (cross-linked PE)
  • high crosstalk and low cable attenuation
  • largely resistant to acids, bases and usual oils
  • Oil resitance: ICEA S-73-532 / NEMA WC 57-2004 § 6.9.3
  • triple protection for high mechanical requirements and magnetic shield (oxidationproofed steel wire braid and additional inner sheath)
  • suitable for intrinsically safe systems zone 1+2 group II acc. IEC 60079-14
  • Sunlight resitance: UL 1581 Section 1200
  • flame-retardant acc. IEC 60332-1 and IEC 60332-3-24 (Cat. C)

Remarks

  • conform to RoHS, conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • we are pleased to produce special versions e.g. fire-resistant (Mica), halogen-free, oil- and chemical-resistant (lead sheath or GuardSheath - unleaded), BS 5308, MESC etc. >> also available as compensation cable > INDUTHERM <<
Conductor material: Bare copper strand
Conductor class: 7-wired construction acc. to IEC 60228 cl. 2
Core insulation: XLPE (cross-linked polyethylene)
Core identification: Pairs: single-coloured with numerals: core A black, core B: white; triple: core A: white, core B: red, core C: black, core A and C with numerals
Stranding: Pairs stranded in layers
Inner sheath material: PVC, black
Shield3: Steel wire braid, galvanized (SWB)
Outer sheath: PVC
Sheath colour: Black or blue RAL 5015 for intrinsically safe systems
Rated voltage: 300 V
Testing voltage: 1,5 kV
Conductor resistance: 0.5mm²: max.36.7 Ω/km; 0.75mm²: max.25.0 Ω/km; 1.3mm²: max.14.2 Ω/km
Insulation resistance: Min. 5 GΩ x km
Current-carrying-capacity: Acc. to DIN VDE, s. Techn. Guidelines
Capacity: Max.115 nF/km
Inductivity: Ca. 1 mH/km
Coupling: Max. 500 pF/500 m
Min. bending radius fixed: 10 x d
Operat. temp. fixed min/max: -40°C / +70°C
Operat. temp. moved min/max: - 5°C / +50°C
Burning behavior: Self-extinguishing and flame-retardant acc. to IEC 60332-1-2 and IEC 60332-3-24 (Cat. C)
Resistant to oil: ICEA S-73-532 / NEMA WC 57-2004 § 6.9.3
Standard: EN 50288-7

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
2001260 1 X 2 X 0,5 9,3 15,0 136,0 black V1: INDUCOM RE-2X(ST)YSWBY-FL - schwarz / black
2001262 2 X 2 X 0,5 11,9 24,0 187,0 black V1: INDUCOM RE-2X(ST)YSWBY-FL - schwarz / black
2001263 4 X 2 X 0,5 12,8 44,0 238,0 black V1: INDUCOM RE-2X(ST)YSWBY-FL - schwarz / black
2001266 8 X 2 X 0,5 15,9 84,0 335,0 black V1: INDUCOM RE-2X(ST)YSWBY-FL - schwarz / black
2001267 12 X 2 X 0,5 18,4 123,0 427,0 black V1: INDUCOM RE-2X(ST)YSWBY-FL - schwarz / black
2001270 16 X 2 X 0,5 20,6 163,0 511,0 black V1: INDUCOM RE-2X(ST)YSWBY-FL - schwarz / black
2001271 24 X 2 X 0,5 24,0 242,0 679,0 black V1: INDUCOM RE-2X(ST)YSWBY-FL - schwarz / black
2001274 1 X 2 X 0,75 9,7 17,0 146,0 black V1: INDUCOM RE-2X(ST)YSWBY-FL - schwarz / black
2001481 2 X 2 X 0,75 12,6 34,0 222,0 black V1: INDUCOM RE-2X(ST)YSWBY-FL - schwarz / black
2001278 4 X 2 X 0,75 13,5 64,0 272,0 black V1: INDUCOM RE-2X(ST)YSWBY-FL - schwarz / black
2001491 8 X 2 X 0,75 17,4 124,0 406,0 black V1: INDUCOM RE-2X(ST)YSWBY-FL - schwarz / black
2001282 12 X 2 X 0,75 20,2 184,0 534,0 black V1: INDUCOM RE-2X(ST)YSWBY-FL - schwarz / black
2001283 16 X 2 X 0,75 22,2 244,0 653,0 black V1: INDUCOM RE-2X(ST)YSWBY-FL - schwarz / black
2001286 24 X 2 X 0,75 26,3 364,0 879,0 black V1: INDUCOM RE-2X(ST)YSWBY-FL - schwarz / black
2001287 1 X 2 X 1,3 10,7 34,0 177,0 black V1: INDUCOM RE-2X(ST)YSWBY-FL - schwarz / black
2001290 2 X 2 X 1,3 14,7 60,0 282,0 black V1: INDUCOM RE-2X(ST)YSWBY-FL - schwarz / black
2001467 4 X 2 X 1,3 15,9 114,0 377,0 black V1: INDUCOM RE-2X(ST)YSWBY-FL - schwarz / black
2001294 8 X 2 X 1,3 20,6 218,0 563,0 black V1: INDUCOM RE-2X(ST)YSWBY-FL - schwarz / black
2001295 12 X 2 X 1,3 23,9 322,0 759,0 black V1: INDUCOM RE-2X(ST)YSWBY-FL - schwarz / black
2001298 16 X 2 X 1,3 26,9 426,0 979,0 black V1: INDUCOM RE-2X(ST)YSWBY-FL - schwarz / black
2001300 24 X 2 X 1,3 31,9 684,0 1.357,0 black V1: INDUCOM RE-2X(ST)YSWBY-FL - schwarz / black
2001301 1 X 3 X 1,3 10,4 50,0 191,0 black V1: INDUCOM RE-2X(ST)YSWBY-FL - schwarz / black
2001259 1 X 2 X 0,5 9,3 15,0 136,0 blue V2: INDUCOM RE-2X(ST)YSWBY-FL - blau / blue
2001261 2 X 2 X 0,5 11,9 24,0 187,0 blue V2: INDUCOM RE-2X(ST)YSWBY-FL - blau / blue
2001264 4 X 2 X 0,5 12,8 44,0 238,0 blue V2: INDUCOM RE-2X(ST)YSWBY-FL - blau / blue
2001265 8 X 2 X 0,5 15,9 84,0 335,0 blue V2: INDUCOM RE-2X(ST)YSWBY-FL - blau / blue
2001268 12 X 2 X 0,5 18,4 123,0 427,0 blue V2: INDUCOM RE-2X(ST)YSWBY-FL - blau / blue
2001269 16 X 2 X 0,5 20,6 163,0 511,0 blue V2: INDUCOM RE-2X(ST)YSWBY-FL - blau / blue
2001272 24 X 2 X 0,5 24,0 242,0 679,0 blue V2: INDUCOM RE-2X(ST)YSWBY-FL - blau / blue
2001273 1 X 2 X 0,75 9,7 17,0 146,0 blue V2: INDUCOM RE-2X(ST)YSWBY-FL - blau / blue
2001276 2 X 2 X 0,75 12,6 34,0 222,0 blue V2: INDUCOM RE-2X(ST)YSWBY-FL - blau / blue
2001277 4 X 2 X 0,75 13,5 64,0 272,0 blue V2: INDUCOM RE-2X(ST)YSWBY-FL - blau / blue
2001280 8 X 2 X 0,75 17,4 124,0 406,0 blue V2: INDUCOM RE-2X(ST)YSWBY-FL - blau / blue
2001281 12 X 2 X 0,75 20,2 184,0 534,0 blue V2: INDUCOM RE-2X(ST)YSWBY-FL - blau / blue
2001284 16 X 2 X 0,75 22,2 244,0 653,0 blue V2: INDUCOM RE-2X(ST)YSWBY-FL - blau / blue
2001285 24 X 2 X 0,75 26,3 364,0 879,0 blue V2: INDUCOM RE-2X(ST)YSWBY-FL - blau / blue
2001288 1 X 2 X 1,3 10,7 34,0 177,0 blue V2: INDUCOM RE-2X(ST)YSWBY-FL - blau / blue
2007291 2 X 2 X 1,3 14,7 60,0 282,0 blue V2: INDUCOM RE-2X(ST)YSWBY-FL - blau / blue
2001292 4 X 2 X 1,3 15,9 114,0 377,0 blue V2: INDUCOM RE-2X(ST)YSWBY-FL - blau / blue
2001293 8 X 2 X 1,3 20,6 218,0 563,0 blue V2: INDUCOM RE-2X(ST)YSWBY-FL - blau / blue
2001296 12 X 2 X 1,3 23,9 322,0 759,0 blue V2: INDUCOM RE-2X(ST)YSWBY-FL - blau / blue
2001297 16 X 2 X 1,3 26,9 426,0 979,0 blue V2: INDUCOM RE-2X(ST)YSWBY-FL - blau / blue
2001299 24 X 2 X 1,3 31,9 684,0 1.357,0 blue V2: INDUCOM RE-2X(ST)YSWBY-FL - blau / blue
2001302 1 X 3 X 1,3 10,4 50,0 191,0 blue V2: INDUCOM RE-2X(ST)YSWBY-FL - blau / blue
