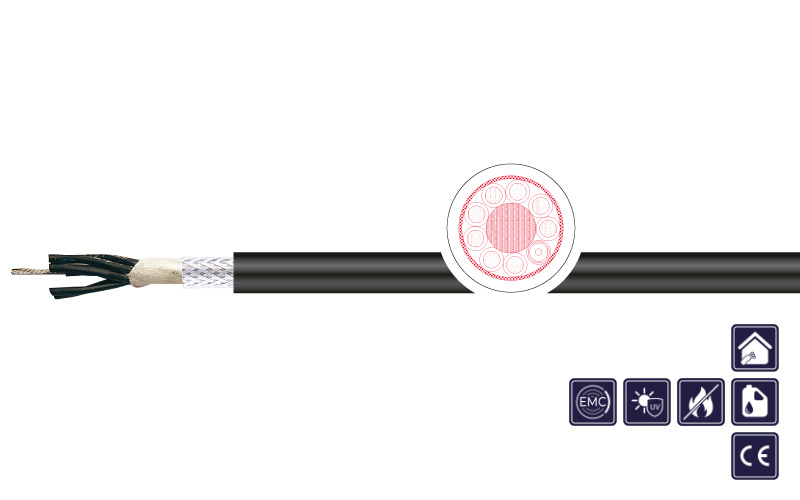

Use of cable

high-flexible lift control cable with steel supporting element for medium mechanical stess. Suitable for dry and humid rooms.

Special features

  • without sustain braid
  • for emergency phone facilities
  • LIFTTEC® YSSTCY: shielded, EMC
  • LIFTTEC® YSSTVCY: with 75 Ω coxial, EMC
  • free from lacquer damaging substances and silicone (during production)

Remarks

  • conform to RoHS
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
  • Available accessory you'll find on pages 15.35.XX
Conductor material: Bare copper strand
Conductor class: Acc. to DIN VDE 0295 class 5 resp. IEC 60228 class 5
Core insulation: PVC
Core identification: Coloured acc. to DIN 47100
Stranding: 2 cores stranded to 1 pair; pairs stranded in layers
Shield3: Copper braid tinned; coverage ca. 70%
Outer sheath: PVC
Sheath colour: Black, RAL 9005
Rated voltage: 100 V
Testing voltage: C/c 1.500 V; c/s 1.000 V
Current-carrying-capacity: Acc. to DIN VDE, see Technical Guideline
Min. bending radius fixed: 12 x d
Min. bending radius moved: 18 x d
Operat. temp. fixed min/max: -25 °C / +70 °C
Operat. temp. moved min/max: -5 °C / +70 °C
Burning behavior: Self-extinguishing and flame retardant acc. to IEC 60332-1
Suspension height: Max. 50 m
Standard: Similar to DIN VDE 0250

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
3001241 4 X 2 X 0,34 8,3 - 9,3 55,0 111,5 black V1: YSSTCY
3001247 4 X 2 X 0,34 + 1 X 75 OHM 8,8 - 9,6 63,3 115,0 black V2: YSSTVCY
