Use of cable

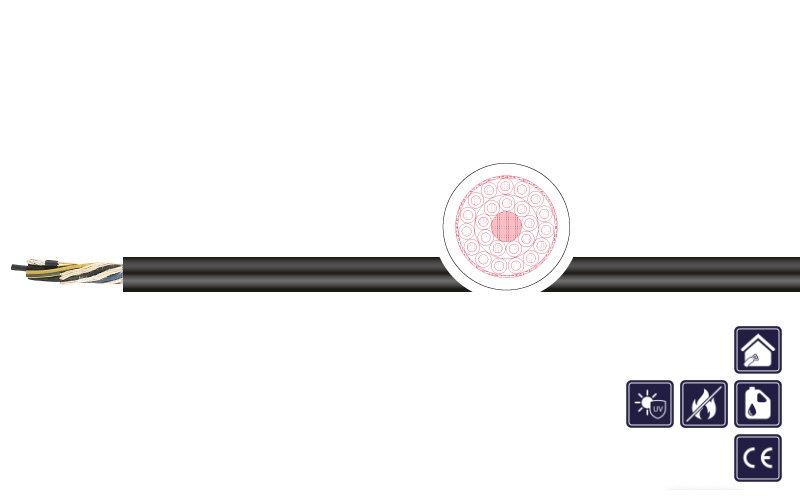

high-flexible lift control cable with textile supporting element for medium mechanical stress. Suitable for dry and humid rooms.

Special features

  • KYSTY: without sustain braid
  • KYSTUY: with sustain braid
  • free from lacquer damaging substances (during production)

Remarks

  • conform to RoHS
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
  • Available accessory you'll find on pages 15.35.XX
Conductor material: Bare copper strand
Conductor class: Acc. to DIN VDE 0295 class 5/6 resp. IEC 60228 class 5/6
Core insulation: PVC
Core identification: Acc. to VDE 0293 black with white numerals with GNYE
Stranding: Stranded to layers
Outer sheath: PVC
Sheath colour: Black, RAL 9005
Rated voltage: Uo/U: 300/500 V
Testing voltage: 2 kV
Current-carrying-capacity: Acc. to DIN VDE, see Technical Guideline
Min. bending radius fixed: 12 x d
Min. bending radius moved: 12 x d
Operat. temp. fixed min/max: KYSTY: -30 °C / +70 °C; KYSTUY: -40 °C / +70 °C
Operat. temp. moved min/max: KYSTY: -5 °C / +70 °C; KYSTUY: -30 °C / +70 °C
Burning behavior: Self-extinguishing and flame retardant acc. to IEC 60332-1
Standard: Similar to DIN VDE 0250

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
3001060 7 G 1 11,0 67,2 195,0 black V1: KYSTY
3000214 9 G 1 12,8 86,4 230,0 black V1: KYSTY
3001213 18 G 1 17,5 172,8 355,0 black V1: KYSTY
3001214 24 G 1 19,5 230,4 465,0 black V1: KYSTY
3001215 30 G 1 23,8 288,0 660,0 black V1: KYSTY
3000225 12 G 0,75 16,2 86,4 277,0 black V2: KYSTUY
3001219 9 G 1 15,4 86,4 288,0 black V2: KYSTUY
3000226 12 G 1 18,7 115,2 385,0 black V2: KYSTUY
3000228 18 G 1 19,0 172,8 480,0 black V2: KYSTUY
3000227 24 G 1 22,3 230,4 630,0 black V2: KYSTUY
3000229 30 G 1 24,4 288,0 785,0 black V2: KYSTUY
3001220 36 G 1 26,5 345,6 950,0 black V2: KYSTUY
