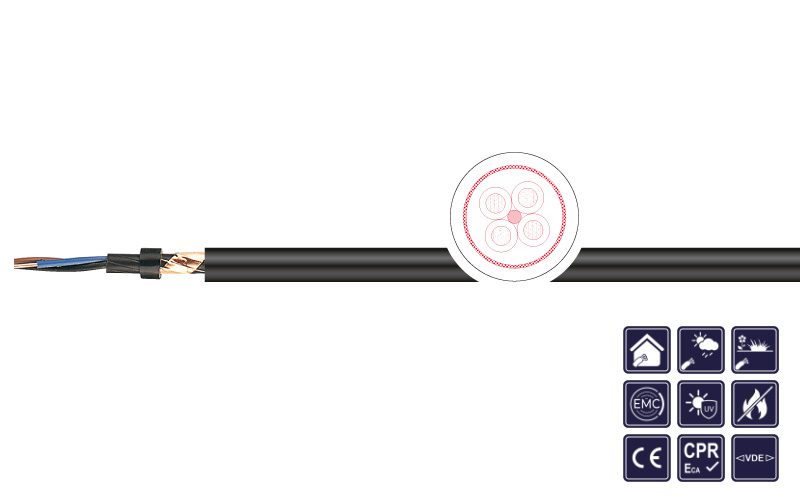

Use of cable

power cable for use in generating plants, industrial facilities, switching stations, in local networks and power supply industry. Use predominantly for laying underground, indoor- and outdoor use, cable channels and in water when increased mechanical protection resp. contact protection in case of failure is required.

Special features

  • 0,6/1 kV operating voltage, 4 kV testing voltage
  • UV-resistant
  • no hood termination necessary when laying in dry rooms
  • use of concentric conductor as shield, neutral conductor or earth conductor is permitted but not as outer conductor
  • free from lacquer damaging substances and silicone (during production)

Remarks

  • conform to RoHS
  • conform to 2006/95/EC-Guideline CE
  • with blue outer sheath for intrinsically safe facilities available upon request
  • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Conductor material: Bare copper conductor
Conductor class: Acc. to DIN VDE 0295 class 1 resp. IEC 60228 cl. 1
Core insulation: PVC
Core identification: Single core black; multi core acc. to VDE 0207 part 4
Stranding: Multi core stranded in layers
Inner sheath material: Filler sheath
Shield3: Concentric conductor of blank round copper wires
Outer sheath: PVC
Sheath colour: Black
Rated voltage: Uo/U: 0,6/1 kV
Testing voltage: 4 kV
Conductor resistance: At +20 °C acc. to DIN VDE 0295 class 1 resp. IEC 60228 cl. 1
Current-carrying-capacity: Acc. to DIN VDE, see Technical Guidelines
Min. bending radius fixed: Single core: 15 x d ; multi core: 12 x d
Operat. temp. fixed min/max: -40 °C / +70 °C
Operat. temp. moved min/max: - 5 °C / +50 °C
Temp. at conductor: + 70 °C in operation; +160 °C in case of short-circuit
Burning behavior: Acc. to VDE 0472-804-B and IEC 60332-1
Standard: Acc. to DIN VDE 0276-603 and IEC 60502
Approvals: VDE

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
4000806 1 X 10re/10 11,0 216,0 310,0 black V0: NYCY 0,6/1kV
4000807 1 X 16re/16 12,0 336,0 440,0 black V0: NYCY 0,6/1kV
4000808 1 X 25rm/25 16,0 523,0 680,0 black V0: NYCY 0,6/1kV
4000425 2 X 1,5re/1,5 13,0 52,0 210,0 black V0: NYCY 0,6/1kV
4000117 2 X 2,5re/2,5 14,0 80,0 260,0 black V0: NYCY 0,6/1kV
4000281 2 X 4re/4 16,0 123,0 350,0 black V0: NYCY 0,6/1kV
4000103 2 X 6re/6 18,0 182,0 440,0 black V0: NYCY 0,6/1kV
4000112 3 X 1,5re/1,5 14,0 66,0 220,0 black V0: NYCY 0,6/1kV
4000457 3 X 2,5re/2,5 15,0 104,0 290,0 black V0: NYCY 0,6/1kV
4000274 3 X 4re/4 16,0 161,0 400,0 black V0: NYCY 0,6/1kV
4000111 3 X 6re/6 18,0 240,0 500,0 black V0: NYCY 0,6/1kV
4000108 4 X 1,5re/1,5 14,0 81,0 260,0 black V0: NYCY 0,6/1kV
4000110 4 X 2,5re/2,5 15,0 128,0 340,0 black V0: NYCY 0,6/1kV
4000486 4 X 4re/4 17,0 200,0 470,0 black V0: NYCY 0,6/1kV
4000106 4 X 6re/6 19,0 297,0 590,0 black V0: NYCY 0,6/1kV
4000104 4 X 10re/10 21,0 504,0 900,0 black V0: NYCY 0,6/1kV
4000113 5 X 1,5re/1,5 15,0 95,0 320,0 black V0: NYCY 0,6/1kV
4000282 5 X 2,5re/2,5 16,0 152,0 390,0 black V0: NYCY 0,6/1kV
4000601 5 X 4re/4 19,0 238,0 560,0 black V0: NYCY 0,6/1kV
4000572 5 X 6re/6 20,0 355,0 690,0 black V0: NYCY 0,6/1kV
4000809 7 X 1,5re/1,5 15,0 124,0 340,0 black V0: NYCY 0,6/1kV
4000116 7 X 1,5re/2,5 16,0 133,0 350,0 black V0: NYCY 0,6/1kV
4000810 8 X 1,5re/2,5 17,0 147,0 460,0 black V0: NYCY 0,6/1kV
4000098 10 X 1,5re/2,5 19,0 176,0 420,0 black V0: NYCY 0,6/1kV
4000470 12 X 1,5re/2,5 20,0 205,0 480,0 black V0: NYCY 0,6/1kV
4000811 14 X 1,5re/2,5 21,0 234,0 530,0 black V0: NYCY 0,6/1kV
4000509 16 X 1,5re/4 22,0 276,0 700,0 black V0: NYCY 0,6/1kV
4000101 19 X 1,5re/4 23,0 320,0 670,0 black V0: NYCY 0,6/1kV
4000812 21 X 1,5re/6 24,0 369,0 950,0 black V0: NYCY 0,6/1kV
4000102 24 X 1,5re/6 26,0 413,0 870,0 black V0: NYCY 0,6/1kV
4000510 30 X 1,5re/6 27,0 499,0 1.250,0 black V0: NYCY 0,6/1kV
4000468 40 X 1,5re/10 30,0 696,0 1.560,0 black V0: NYCY 0,6/1kV
4000498 52 X 1,5re/10 32,0 869,0 1.800,0 black V0: NYCY 0,6/1kV
4000813 61 X 1,5re/10 33,0 998,0 1.950,0 black V0: NYCY 0,6/1kV
4000482 7 X 2,5re/2,5 7,0 200,0 450,0 black V0: NYCY 0,6/1kV
4000814 8 X 2,5re/2,5 18,0 225,0 570,0 black V0: NYCY 0,6/1kV
4000473 10 X 2,5re/4 21,0 286,0 610,0 black V0: NYCY 0,6/1kV
4000100 12 X 2,5re/4 22,0 334,0 670,0 black V0: NYCY 0,6/1kV
4000512 14 X 2,5re/6 23,0 403,0 750,0 black V0: NYCY 0,6/1kV
4000740 16 X 2,5re/6 24,0 451,0 900,0 black V0: NYCY 0,6/1kV
4000513 19 X 2,5re/6 25,0 523,0 950,0 black V0: NYCY 0,6/1kV
4000815 21 X 2,5re/6 26,0 571,0 1.080,0 black V0: NYCY 0,6/1kV
4000514 24 X 2,5re/10 28,0 696,0 1.420,0 black V0: NYCY 0,6/1kV
4000816 30 X 2,5re/10 30,0 840,0 1.600,0 black V0: NYCY 0,6/1kV
4000469 40 X 2,5re/10 33,0 1.080,0 2.000,0 black V0: NYCY 0,6/1kV
4000717 52 X 2,5re/10 38,0 1.368,0 2.500,0 black V0: NYCY 0,6/1kV
4000515 7 X 4re/4 20,0 315,0 600,0 black V0: NYCY 0,6/1kV
