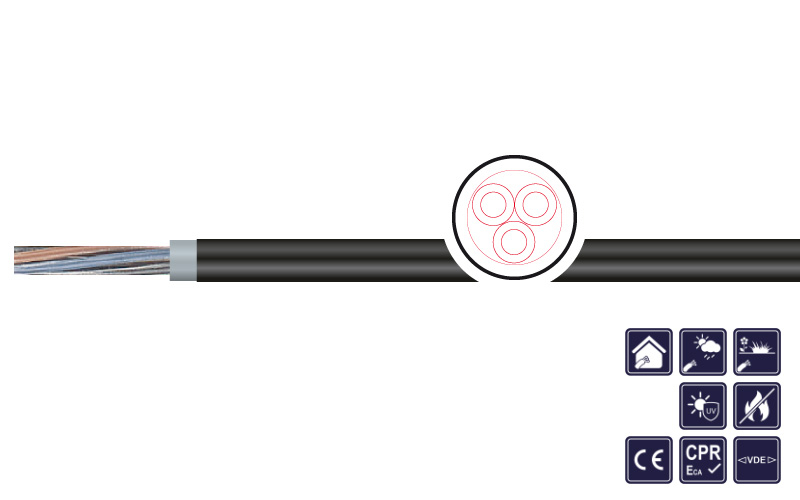

Use of cable

power cable for use in generating plants, industrial facilities, switching stations, in local networks and power supply industry. Use predominantly for laying underground, indoor- and outdoor use, cable channels and in water.

Special features

  • 0,6/1 kV operating voltage, 4 kV testing voltage
  • UV-resistant
  • no hood termination necessary when laying in dry rooms
  • free from lacquer damaging substances and silicone (during production)
  • NAYY-O without GNYE
  • competitive alternative and low-weight to NYY (aluminium conductor)

Remarks

  • conform to RoHS
  • conform to 2006/95/EC-Guideline CE
  • with blue outer sheath for intrinsically safe facilities available upon request
  • conductor SMv: sector-shaped, stranded compacted
  • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Conductor material: Aluminium-Leiter
Conductor class: Acc. to DIN VDE 0295 class 1 or 2 resp. IEC 60228 class 1 or 2
Core insulation: PVC
Core identification: NAYY-J: with GNYE; multi core acc. to VDE 0207 part 5, up to 5 cores acc. VDE 0293-308 NAYY-O: without GNYE; multi core acc. to VDE 0207 part 5
Stranding: Multi cores stranded in layers
Inner sheath material: Filler sheath
Outer sheath: PVC
Sheath colour: Black
Rated voltage: Uo/U: 0,6/1 kV
Testing voltage: 4 kV
Conductor resistance: At +20 °C acc. to DIN VDE 0295 class 1 or 2 resp. IEC 60228 class 1 or 2
Current-carrying-capacity: Acc. to DIN VDE, see Technical Guidelines
Min. bending radius fixed: Single core: 15 x d ; multi core: 12 x d
Operat. temp. fixed min/max: -5 °C / +70 °C
Temp. at conductor: + 70 °C in operation
Burning behavior: Acc. to VDE 0482-332-1-2/IEC 60332-1
Standard: Acc. to DIN VDE 0276-603
Approvals: VDE

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
4001417 4 X 16re 21,0 - 25,0   750,0 black V1: NAYY-O 0,6/1kV
4001418 4 X 25re 25,0 - 32,0   950,0 black V1: NAYY-O 0,6/1kV
4001419 4 X 35re 27,0 - 34,0   1.100,0 black V1: NAYY-O 0,6/1kV
4001420 4 X 50se 29,0 - 36,0   1.200,0 black V1: NAYY-O 0,6/1kV
4001421 4 X 70se 33,0 - 40,0   1.600,0 black V1: NAYY-O 0,6/1kV
4001422 4 X 95se 38,0 - 45,0   2.100,0 black V1: NAYY-O 0,6/1kV
4001423 4 X 120se 41,0 - 49,0   2.400,0 black V1: NAYY-O 0,6/1kV
4001424 4 X 150se 46,0 - 54,0   3.000,0 black V1: NAYY-O 0,6/1kV
4001425 4 X 185se 51,0 - 59,0   3.700,0 black V1: NAYY-O 0,6/1kV
4001426 4 X 240se 57,0 - 65,0   5.000,0 black V1: NAYY-O 0,6/1kV
4001427 4 X 240sm 57,0 - 65,0   5.000,0 black V1: NAYY-O 0,6/1kV
4001399 1 X 50rm 14,0 - 17,0   298,0 black V1: NAYY-O 0,6/1kV
4001400 1 X 70rm 16,0 - 19,0   383,0 black V1: NAYY-O 0,6/1kV
4001401 1 X 95rm 18,0 - 21,0   490,0 black V1: NAYY-O 0,6/1kV
4001402 1 X 120rm 19,0 - 22,0   575,0 black V1: NAYY-O 0,6/1kV
4001403 1 X 150rm 21,0 - 25,0   695,0 black V1: NAYY-O 0,6/1kV
4001404 1 X 185rm 23,0 - 27,0   845,0 black V1: NAYY-O 0,6/1kV
4001405 1 X 240rm 26,0 - 30,0   1.100,0 black V1: NAYY-O 0,6/1kV
4001406 1 X 240sm 26,0 - 30,0   1.100,0 black V1: NAYY-O 0,6/1kV
4001407 1 X 300rm 28,0 - 32,0   1.379,0 black V1: NAYY-O 0,6/1kV
4001408 1 X 400rm 32,0 - 37,0   1.650,0 black V1: NAYY-O 0,6/1kV
4001409 1 X 500rm 35,0 - 40,0   2.015,0 black V1: NAYY-O 0,6/1kV
4001410 1 X 630rm 41,0 - 45,0   2.472,0 black V1: NAYY-O 0,6/1kV
4001411 4 X 16re 21,0 - 25,0   750,0 black V2: NAYY-J 0,6/1kV
4001412 4 X 25re 25,0 - 32,0   950,0 black V2: NAYY-J 0,6/1kV
4001413 4 X 35re 27,0 - 34,0   1.100,0 black V2: NAYY-J 0,6/1kV
4000652 4 X 50se 29,0 - 36,0   1.200,0 black V2: NAYY-J 0,6/1kV
4001414 4 X 70se 33,0 - 40,0   1.600,0 black V2: NAYY-J 0,6/1kV
4001415 4 X 95se 38,0 - 45,0   2.100,0 black V2: NAYY-J 0,6/1kV
4000650 4 X 120se 41,0 - 49,0   2.400,0 black V2: NAYY-J 0,6/1kV
4000710 4 X 150se 46,0 - 54,0   3.000,0 black V2: NAYY-J 0,6/1kV
4001416 4 X 185se 51,0 - 59,0   3.700,0 black V2: NAYY-J 0,6/1kV
4000651 4 X 240se 57,0 - 65,0   5.000,0 black V2: NAYY-J 0,6/1kV
4000532 4 X 240sm 57,0 - 65,0   5.300,0 black V2: NAYY-J 0,6/1kV
