Use of cable

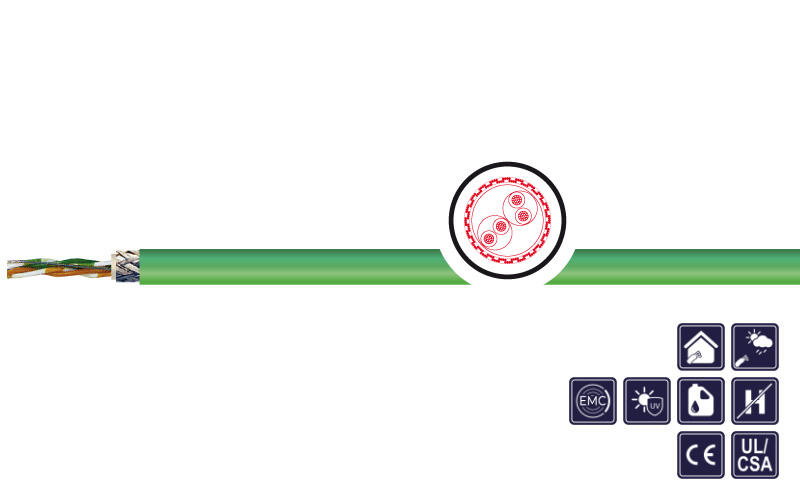

Instrudial EtherCAT® Cables are used for real-time based EtherCAT®-Systems for fixed installation, limited flexible & high flexible application.

Special features

  • HF-characteristics Cat.5e acc. to IEC 61156-6 (7- resp. 19-wired)
  • FRNC: Flame Retardant, Non Corrosive
  • EtherCAT® is a registered trade mark of EtherCAT® Technology Group

Remarks

  • conform to RoHS
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • LABS-/silicone-free (during production)
  • further types and special types upon request.
Conductor material: Fine wired or super fine wired bare copper strand
Conductor class: 7- or 19-wired
Core insulation: Polyolefin resp. foamed Polyolefin
Core identification: Yellow, orange, white, blue
Shield3: Plastic clad aluminium foil under copper braid, tinned
Outer sheath: PVC or PUR
Sheath colour: Green RAL 6018
Rated voltage: 125 V (not for high voltage purposes)
Loop resistance: Max. 280,0 Ω/km
Capacity: Nom. 48 nF/km
Characteristic impedance: 100 Ω ± 15 Ω
Transfer rate: Up to 1.024 Mbit/s
Min. bending radius fixed: 4 x d
Min. bending radius moved: 8 x d
Operat. temp. fixed min/max: -40 °C / +80 °C
Operat. temp. moved min/max: -30 °C / +70 °C (PUR); -10 °C / +70 °C (PVC)
Halogen free: Acc. to IEC 60754-1 (FRNC types)
Burning behavior: Horizontal flame Test (UL 2556)
Resistant to oil: PUR: IEC 60811-404
Approvals: CURus: PUR 80 °C - 30 V; PVC: 80 °C - 300 V
Speed: Trailing: 3 m/s
Acceleration: Trailing: 3 m/s²

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
2003773 2 X 2 X AWG 26/7 4,9 22,0 32,0 green V1: INDUSTRIAL EtherCAT - Standard
2003774 2 X 2 X AWG 26/7 4,9 22,0 29,0 green V2: INDUSTRIAL EtherCAT - Robust
2003775 2 X 2 X AWG 26/19 5,3 22,0 35,0 green V3: INDUSTRIAL EtherCAT - Trailing
