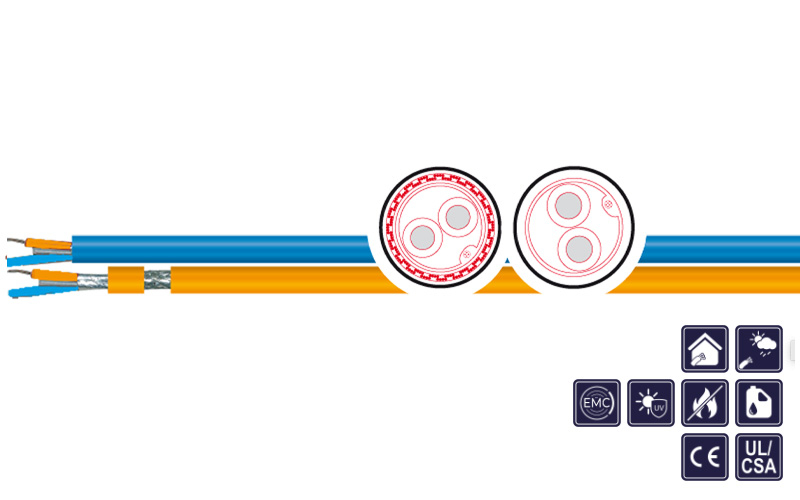

Use of cable

as fieldbus cable for FOUNDATION™ Fieldbus systems, specifically for use in process automation as well as in hazardous areas to connect sensors and actuators,for fixed installation & limited flexible applications.

Standard acc.to FOUNDATION™ Fieldbus recommend. for Type A cables & EN61158

Special features

  • largely resistant to lubricants, coolants fluids and grease
  • oil-resistant: acc.to DIN EN 60811-2-1 (only mineral oil)
  • UV-resistant
  • optimized EMC compliant shielding

Remarks

  • conform to RoHS
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • LABS-/silicone-free (during production)
  • Type Ex - blue outer sheath: for applications in hazardous areas
Conductor material: Bare copper strand
Conductor class: 7-wired
Core insulation: Polyolefin or foamed polyolefin
Core identification: Orange, blue
Shield3: (St)-PVC: alu-lamin. polyester foil with subjacent tinned drain wire | (St)C-PVC: alu-lamin. polyester foil, copper braid tinned with subjacent tinned drain
Outer sheath: PVC
Sheath colour: Blue RAL 5015 (BU) or orange RAL 2003 (OR)
Rated voltage: 300 V (not for high voltage purposes)
Testing voltage: 1,5 kV
Loop resistance: Max. 43,8 Ohm/km
Capacity: Max. 60 nF/km
Characteristic impedance: 100 Ω
Transfer size: Max. 1.900 m
Min. bending radius fixed: 5 x d
Min. bending radius moved: 10 x d
Operat. temp. fixed min/max: - 40 °C / +80 °C
Operat. temp. moved min/max: - 10 °C / +70 °C
Burning behavior: Flame retardant acc. to IEC 60332-3-24 (Cat. C), FT4
Resistant to oil: Acc. to DIN EN 60811-2-1 (only mineral oil)
Approvals: UL/CSA - cULus 300V, 75°C, CM/PLTC/SunRes/OilRes & (St)C-PVC additional cURus 600V, 60°C

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
2003771 1 X 2 X AWG 18 7,4 26,0 63,0 orange V1: FOUNDATION+Fieldbus TYP A ECO UL/CSA - cULus - CMG
2003772 1 X 2 X AWG 18 7,4 26,0 63,0 blue V1: FOUNDATION+Fieldbus TYP A ECO UL/CSA - cULus - CMG
2003700 1 X 2 X AWG 18 8,0 47,0 84,0 orange V2: FOUNDATION+Fieldbus TYP A BASIC UL/CSA - cULus - CMG
2003701 1 X 2 X AWG 18 8,0 47,0 84,0 blue V2: FOUNDATION+Fieldbus TYP A BASIC UL/CSA - cULus - CMG
