Use of cable

as fieldbus cables for DeviceNet™ systems in the field of production automation for reliable data and energy transmission (e.g. between sensors, actuators and controllers), for high flexible applications (e.g. power chains, gantry robots, pick&place units, conveyors, machine tools, automated production systems, etc.)

DeviceNet™ is an Allen Bradley (Rockwell Automation) developed, based on proven CAN technology bus system.
Standard acc. ODVA specifications

Special features

  • low adhesion
  • largely resistant to grease, coolant fluids and lubricants
  • oil-resistant: PUR & PVC acc.to DIN EN 6081 1-2-1 (PVC only mineral oil)
  • UV-resistant
  • optimized EMC compliant shielding
  • max. cable lengths for a bus segment at stated transmission rate a supply cable:
        Trunk - thick: 125 kbit/s-max.500m | 250 kbit/s-max.250m | 0,5 Mbit/s-max.100m
        Drop - thin : 125 kbit/s-max.100m | 250 kbit/s-max.100m | 0,5 Mbit/s-max.100m

Remarks

  • conform to RoHS // conform to DESINA (violet)
  • LABS-/silicone-free (during production)
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • FRNC: Flame Retardant Non Corrosive, halogen free
  • ODVA - Open DeviceNet Vendors Association

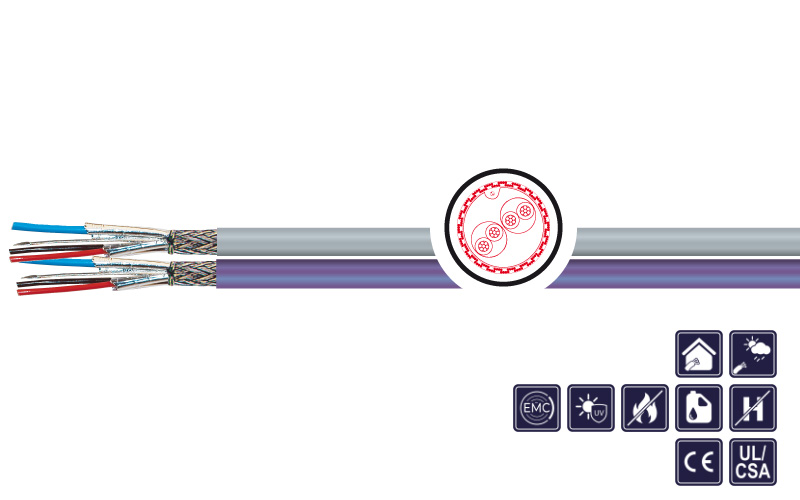

Conductor material: Fine wire, tinned copper strand
Core insulation: BUScores: foamed PE, supply cores: PVC or polyolefin
Core identification: BUScores: bu, wh; supply cores: rd, bk
Stranding: Cores twisted to pairs
Shield: Pairs in aluminium clad foil, cover. 100%
Overall stranding: Pairs stranded in layers
Shield3: Copper braid tinned, with subjacent tinned drain wire
Outer sheath: PVC or PUR
Sheath colour: Violet RAL 4001 (VT) or grey RAL 7001 (GY)
Rated voltage: 300 V (not for high voltage purposes)
Testing voltage: 1,5 kV
Loop resistance: Max. 181,8 Ω/km - AWG24, max. 114,8 Ω/km - AWG22, max. 71,6 Ω/km - AWG18, max. 22,6 Ω/km - AWG15
Characteristic impedance: 120 Ω +/- 12 Ω
Min. bending radius fixed: 5 x d
Min. bending radius moved: 7,5 x d < 3mVW* | 15 x d ≥ 3mVW
Operat. temp. fixed min/max: -40 °C / +80 °C
Operat. temp. moved min/max: PVC: -10 °C / +70 °C; PUR: -30 °C/ +70 °C
Halogen free: Acc. to IEC 60754-1 (FRNC Types)
Burning behavior: Flame retardant, PVC: acc. to IEC 60332-3-24 Cat. C, FT4 resp. PUR: acc. to IEC 60332-1-2, VW-1
Approvals: UL/CSA: PVC: (Trunk Cable) cULus 300V, 75°C, CMG/ PLTC/SunRes/OilRes & cURus 600V, 60°C | (Drop Cable) cULus 300V, 75°C, CMG/CL2/SunRes/OilRes & cURus 600V, 60°C | PUR: cULus 300V, 75°C CMX/CL2X
Speed: Self-supporting: 4 m/s
Acceleration: Max. 5 m/s²

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
2003696 1 X 2 X AWG 18 + 1 X 2 X AWG 15 12,2 95,0 203,0 grey V1: DeviceNet+ SK-C-PVC TRUNK & DROP UL/CSA - cULus - CMG
2003697 1 X 2 X AWG 24 + 1 X 2 X AWG 22 7,0 37,0 68,0 grey V1: DeviceNet+ SK-C-PVC TRUNK & DROP UL/CSA - cULus - CMG
2003698 1 X 2 X AWG 18 + 1 X 2 X AWG 15 12,2 95,0 203,0 violet V2: DeviceNet+ SK-C-PUR TRUNK & DROP UL/CSA - cULus - CMX DESINA
2003699 1 X 2 X AWG 24 + 1 X 2 X AWG 22 7,0 37,0 68,0 violet V2: DeviceNet+ SK-C-PUR TRUNK & DROP UL/CSA - cULus - CMX DESINA
