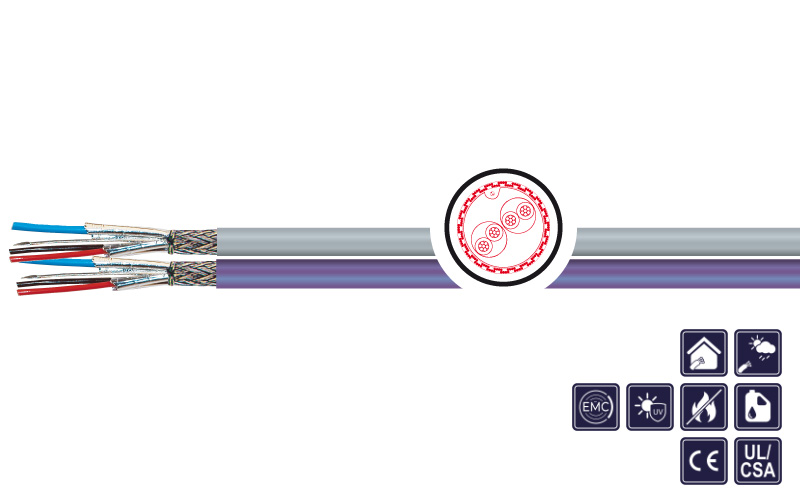

Use of cable

as fieldbus cables for DeviceNet™ systems in the field of production automation for reliable data and energy transmission (e.g. between sensors, actuators and controllers), for fixed installation & flexible applications.

DeviceNet™ is an Allen Bradley (Rockwell Automation) developed, based on proven CAN technology bus system.
Standard acc. ODVA specifications

Special features

  • largely resistant to grease, coolant fluids and lubricants
  • oil-resistant: acc. to DIN EN 60811-2-1 (only mineral oil)
  • UV-resistant
  • optimized EMC compliant shielding
  • max. cable lengths for a bus segment at stated transmission rate as
    supply cable:
       Trunk - thick: 125 kbit/s-max.500m | 250 kbit/s-max.250m | 0,5 Mbit/s-max.100m
       Drop - thin   : 125 kbit/s-max.100m | 250 kbit/s-max.100m | 0,5 Mbit/s-max.100m

Remarks

  • conform to RoHS
  • conform to DESINA (violet)
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • LABS-/silicone-free (during production)
  • ODVA - Open DeviceNet Vendors Association
Conductor material: Copper strand tinned
Conductor class: 19-wired
Core insulation: BUScores: foamed PE, supply cores: PVC
Core identification: BUScores: bu, wh; supply cores: rd, bk
Stranding: Cores twisted to pairs
Shield: Pairs in aluminium clad foil, cover. 100%
Overall stranding: Pairs stranded in layers
Shield3: Copper braid tinned, with subjacent tinned drain wire
Outer sheath: PVC
Sheath colour: Violet RAL 4001 (VT) or grey RAL 7001 (GY)
Rated voltage: 300 V (not for high voltage purposee)
Testing voltage: 1,5 kV
Loop resistance: Max. 181,8 Ω/km - AWG24, max. 114,8 Ω/km - AWG22, max. 45,4 Ω/km - AWG18, max. 22,6 Ω/km - AWG15
Capacity: Nom. 40 nF/km
Characteristic impedance: 120 Ω +/- 12 Ω
Min. bending radius fixed: 7,5 x d
Min. bending radius moved: 15 x d
Operat. temp. fixed min/max: -40 °C / +80 °C
Operat. temp. moved min/max: -10 °C / +70 °C
Burning behavior: Flame retardant acc. to IEC 60332-3-24(Cat.C),FT4
Resistant to oil: Acc. to DIN EN 60811-2-1 (only mineral oil)
Approvals: UL/CSA - (Trunk Cable) cULus 300V, 75°C, CMG/PLTC/SunRes/OilRes & cURus 600V, 60°C | (Drop Cable) cULus 300V, 75°C, CMG/CL2/SunRes/OilRes & cURus 600V, 60°C

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
2003692 1 X 2 X AWG 18 + 1 X 2 X AWG 15 12,2 90,0 199,0 grey V1: DeviceNet+ C-PVC TRUNK & DROP UL/CSA - cULus - CMG
2003693 1 X 2 X AWG 24 + 1 X 2 X AWG 22 7,0 35,0 64,0 grey V1: DeviceNet+ C-PVC TRUNK & DROP UL/CSA - cULus - CMG
2003694 1 X 2 X AWG 18 + 1 X 2 X AWG 15 12,2 90,0 199,0 violet V2: DeviceNet+ C-PVC TRUNK & DROP UL/CSA - cULus - CMG DESINA
2003695 1 X 2 X AWG 24 + 1 X 2 X AWG 22 7,0 35,0 64,0 violet V2: DeviceNet+ C-PVC TRUNK & DROP UL/CSA - cULus - CMG DESINA
